PIPER CHEROKEE SIX SERVICE MANUAL

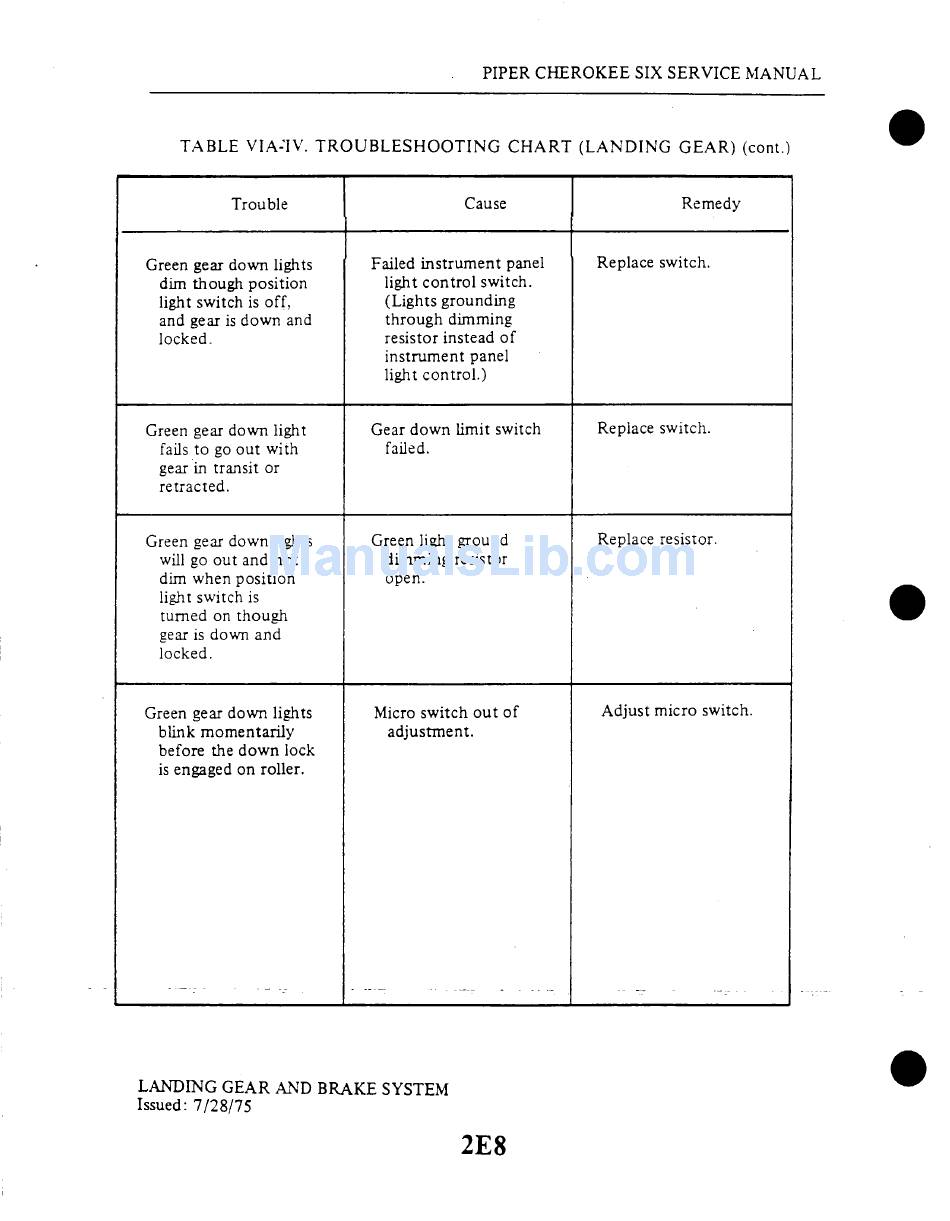

TABLE VIA-IV. TROUBLESHOOTING CHART (LANDING GEAR) (cont.)
Trouble
Cause Remedy
Green gear down lights
dim though position
light switch is off,
and gear is down and
locked.
Green gear down light
fails to go out with
gear in transit or
retracted.
Green gear down lights
will go out and not
dim when position
light switch is
turned on though
gear is down and
locked.
Green gear down lights
blink momentarily
before the down lock
is engaged on roller.
Failed instrument panel
light control switch.
(Lights grounding
through dimming
resistor instead of
instrument panel
light control.)
Gear down limit switch
failed.
Green light ground
dimming resistor
open.
Micro switch out of
adjustment.
Replace switch.
Replace switch.
Replace resistor.
Adjust micro switch.
LANDING GEAR AND BRAKE SYSTEM
Issued: 7/28/75
2E8
