Piper Cherokee Six Service Manual page 651

PIPER CHEROKEE SIX SERVICE MANUAL
LONG
SCREWS
ENSURE THat
BATTERY
LEADS
ARE LOCATE
IN VEE
RING
BOARd END

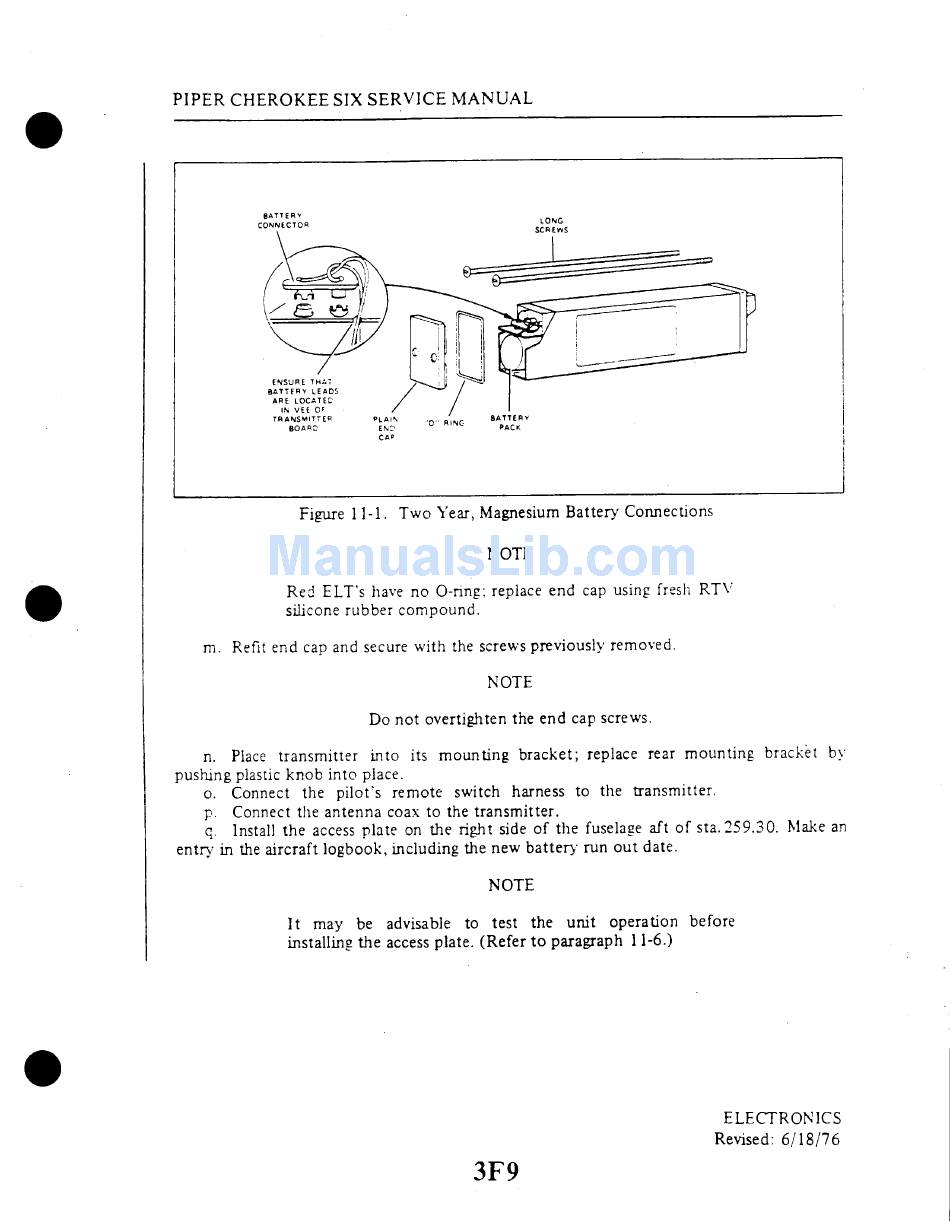

Figure 1 -1. Two Year, Magnesium Battery Connections
NOTE
Red ELT's have no O-ring: replace end cap using fresh RTV
silicone rubber compound.
m. Refit end cap and secure with the screws previously removed.
NOTE
Do not overtighten the end cap screws.
n. Place transmitter
into its mounting bracket; replace rear mounting bracket by
pushing plastic knob into place.
o. Connect the pilot's remote switch harness to the transmitter.
p. Connect the antenna coax to the transmitter.
q. Install the access plate on the right side of the fuselage aft of sta. 259.30. Make an
entry in the aircraft logbook, including the new battery run out date.
NOTE
It may be advisable to test the unit operation before
installing the access plate. (Refer to paragraph 1 1-6.)
ELECTRONICS
Revised: 6/18/76
3F9
