1663
*1974 MODELS AND UP
No.
Material Thickness No. Material
Thickness
1
2024-T3 0.032
5 2024-T3 0.051
2 2024-T3 0.020
6 2024-T3 0.016
3 2024-T3
0.040 7 2024-0*
0.020
4 2024-T3 0.025 8
Fiberglas
*Heat treat to 2024-T4

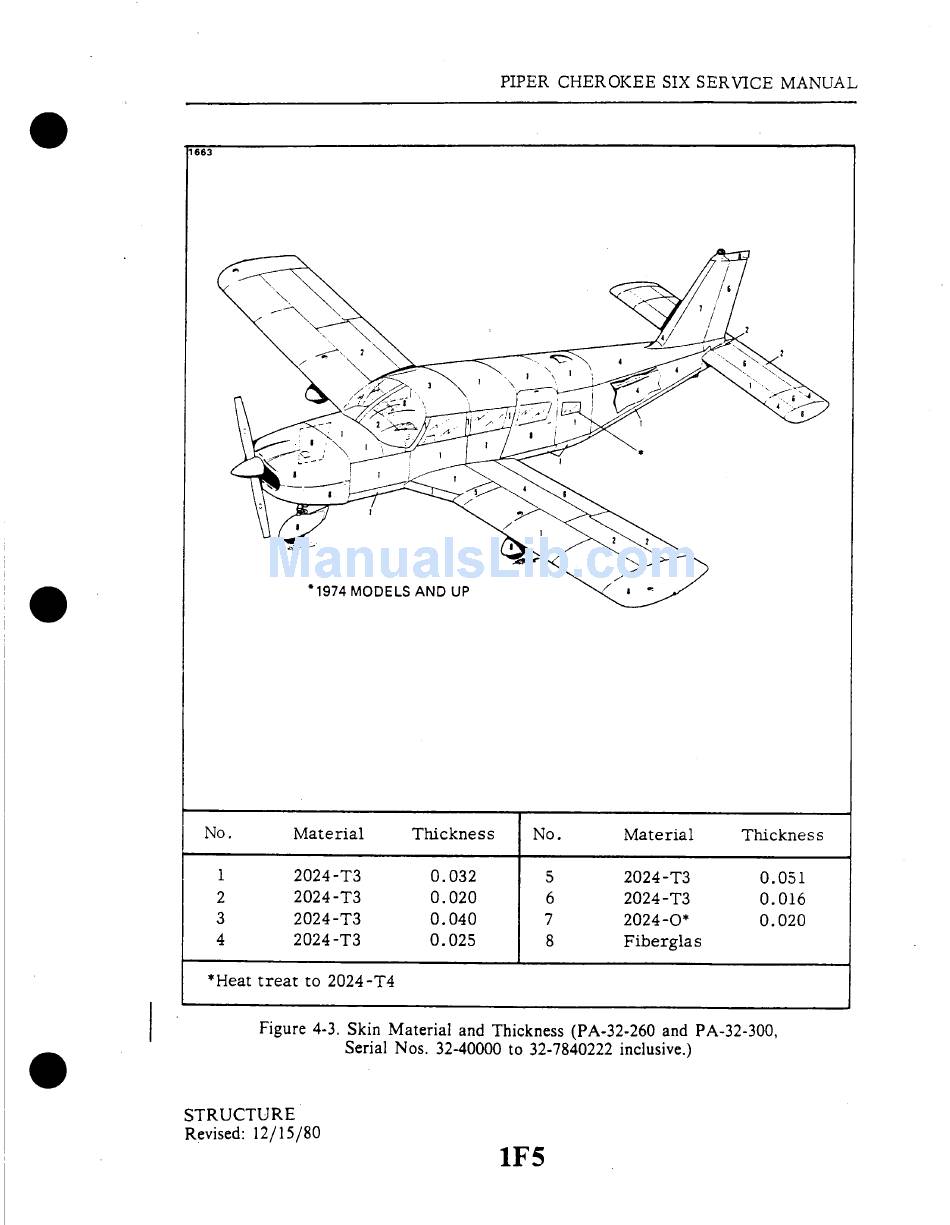

Figure 4-3. Skin Material and Thickness (PA-32-260 and PA-32-300,
Serial Nos. 32-40000 to 32-7840222 inclusive.)
STRUCTURE
Revised: 12/15/80
1F5
