1. SAFETY WIRE
2. AIR VALVE CAP
3. BOLT
4. AIR VALVE
5. SCREW
6. CYLINDER
7. BOLT
8. BRAKELINE
HOSE
9. BOLT, WASHER, NUT,
AND COTTER PIN
10.
TORQUE LINK ASSY.
I
. OLEO ASSY.
12. STUB, AXLE
PIPER CHEROKEE SIX SERVICE MANUAL
1651
1651
2
SEE NOTE
3
NOTE:
WHEN INSTALLING
VALVE
TORQUE VALVE
TO 45 FT LBS.
USE 45 FT LBS. ON VALVE
CAPS
WITH BARE THREADS AND
22.5'FT LBS. ON CAPS WITH
PHOSPHATE
COATED THREADS

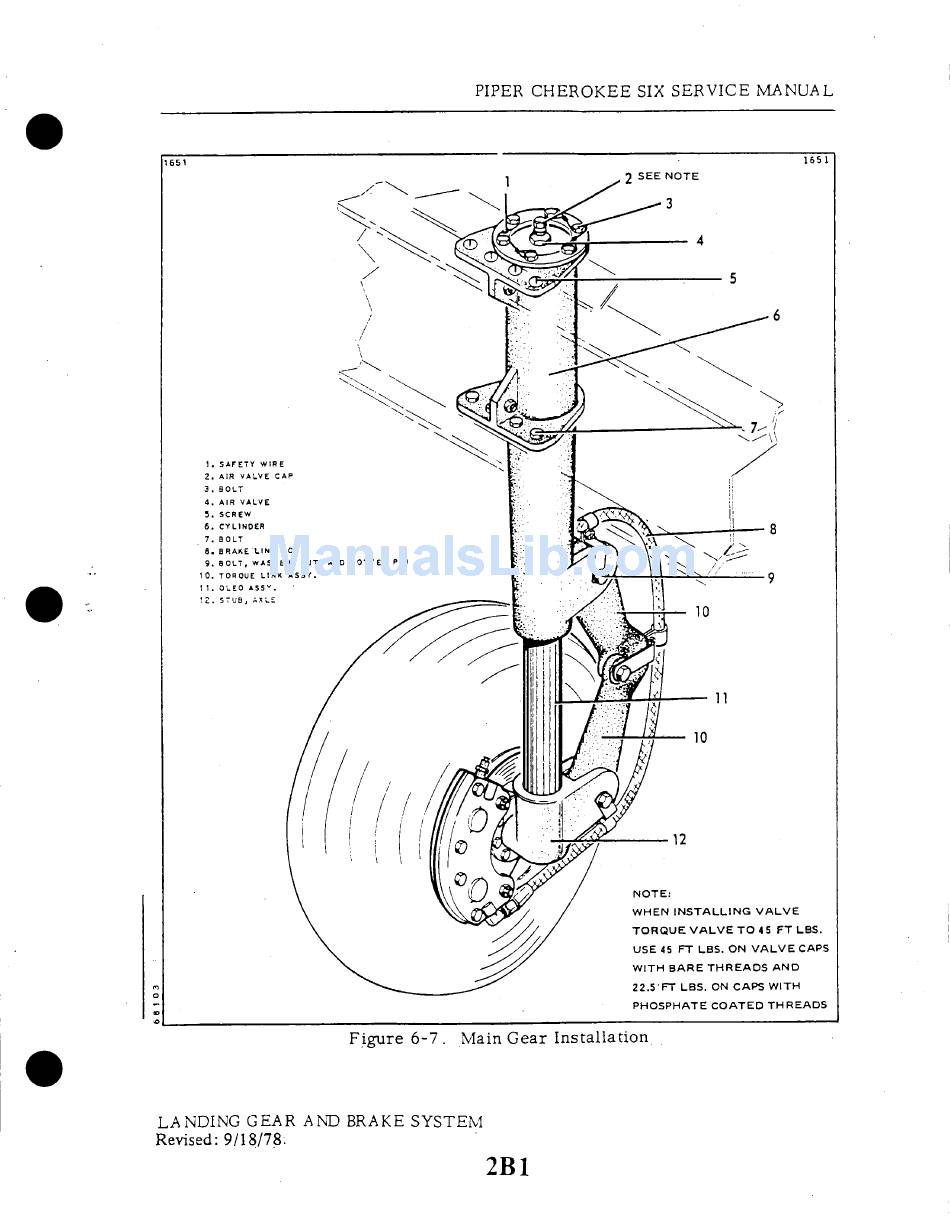

Main Gear Installation Figure 6-7.
LANDING GEAR AND
Revised: 9/18/78.
BRAKE SYSTEM
2B1
