CIRCUIT IDENTIFICATION
WIRE NUMBER
WIRE SEGMENT LETTER
WIRE GAUGE
CIRCUIT FUNCTION
LETTER CIRCUITS
A AUTOPILOT
C CONTROL SURFACE
E ENGINE INSTRUMENT
F FLIGHT INSTRUMENT
G LANDING GEAR
H HEATER - VENTILATING & DEICIN
L LIGHTING
P POWER
Q
FUEL & OIL
RP RADIO POWER
RG RADIO GROUND
RZ RADIO AUDIO & INTERPHONE
J IGNITION
W WARNING
K STARTER
G
PIPER CHEROKEE SIX SERVICE MANUAL

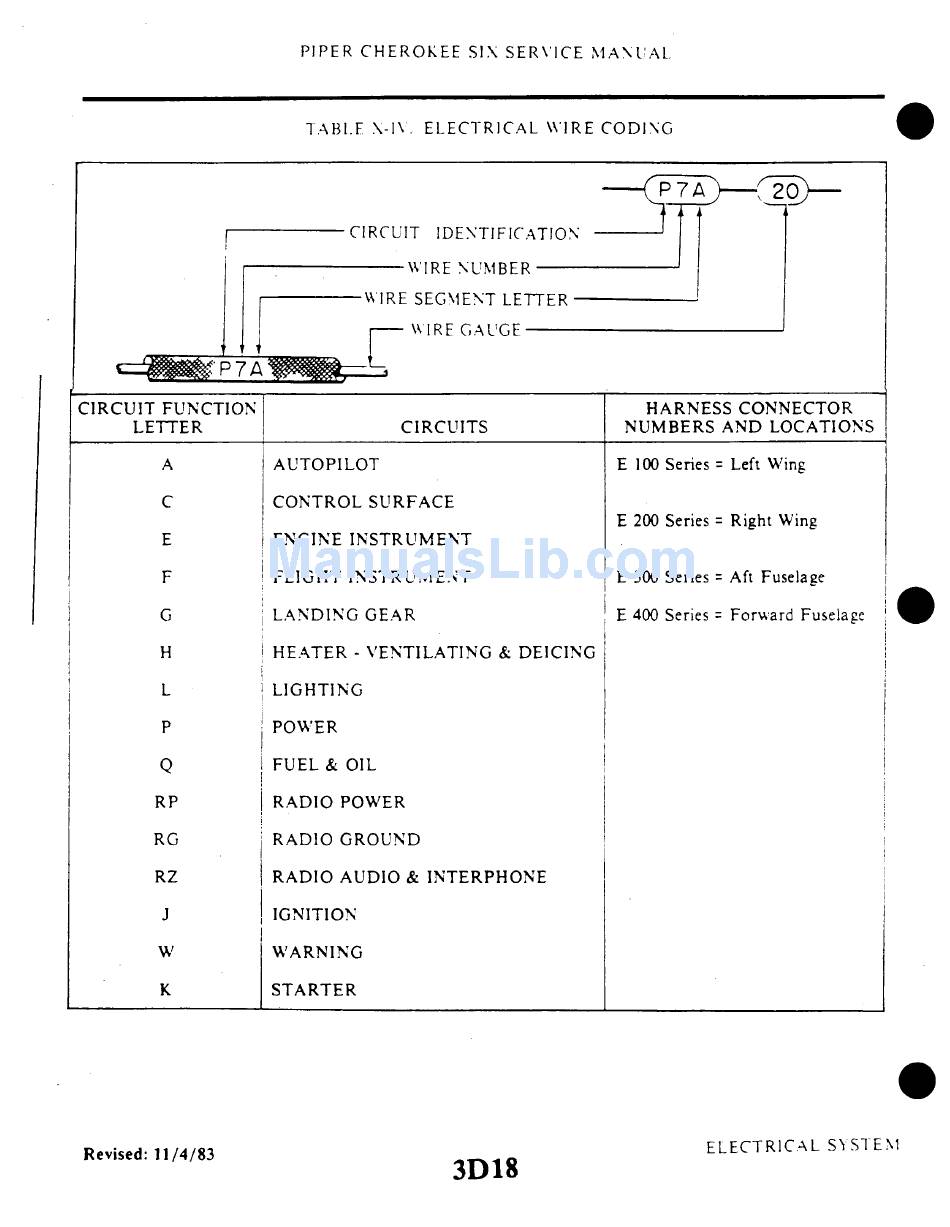

TABLE \-I\. ELECTRICAL WIRE CODING
HARNESS CONNECTOR
NUMBERS AND LOCATIONS
E 100 Series = Left Wing
E 200 Series = Right Wing
E 300
E 400
Series =
Series =
Aft Fuselage
Forward Fuselage
ELECTRICAL SYSTEM
Revised: 11/4/83
3D18
