PIPER CHEROKEE SIX SERVICE MANUAL
2. SPROCKET,
CONTROL WHEEL
3. SPROCKET,
IDLER
4. CHAIN, AILERON CONTROL
5. BRACKET, PULLEY
6. BELLCRANK, AILERON
7. ROD, AILERON CONTROL
8. PULLEY, TEE
BAR
9. PULLEY, FORWARD CLUSTER
10. PULLEY,
PRIMARY CONTROL CABLE
11. PULLEY, BALANCE CABLE
12. TURNBUCKLE, RIGHT PRIMARY
13. CABLE, RIGHT WING PRIMARY
14. CABLE, RIGHT FUSELAGE PRIMARY
15. CABLE, LEFT FUSELAGE PRIMARY
16. TURNBUCKLE, LEFT PRIMARY
17. CABLE, LEFT WING PRIMARY
18. CABLE, RIGHT BALANCE
19. CABLE, LEFT BALANCE
20. ROD, CABLE GUARD
21. BOLT, WASHER & NUT
22. BOLT. WASHER I NUT
23. BOLT, HUT, BUSHING & COTTER PIN
24. TURNBUCKLE,
BALANCE CABLE
25.
BOLT, BELLCRANK PIVOr
26. BUSHING, BELLCRANK
o

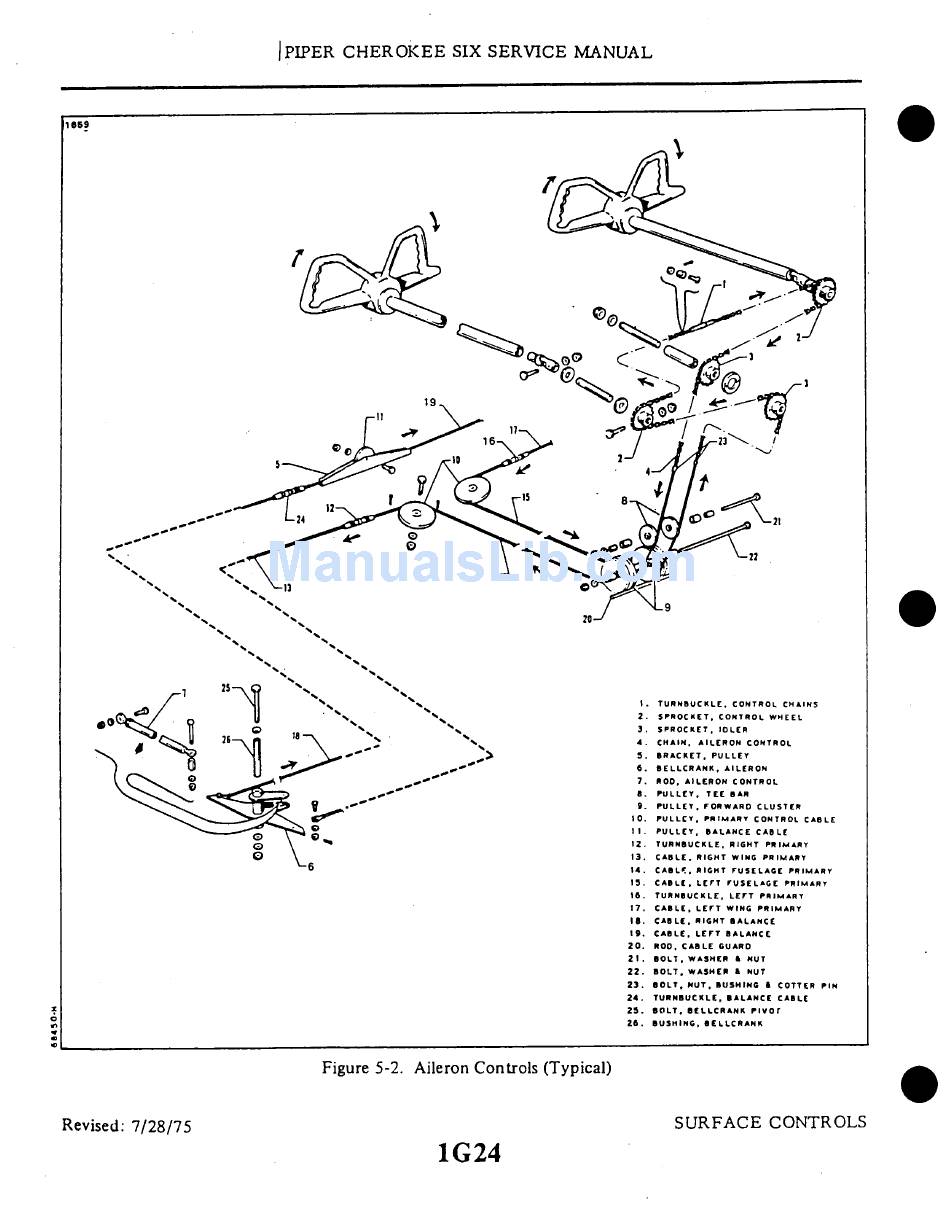

Figure 5-2. Aileron Controls (Typical)
Revised: 7/28/75
SURFACE CONTROLS
1G24
