PIPER CHEROKEE SIX SERVICE MANUAL
4-33. BALANCING EQUIPMENT. (Refer to Figure4-15.) The balancing must be done
using a suitable tool capable of measuring unbalance in inch-pounds from the centerline of
the control surface hinge pin. A suggested tool configuration is shown in Figure 4-15. Other
tool configurations may be used, provided accuracy is maintained and recalibration
capability is provided.

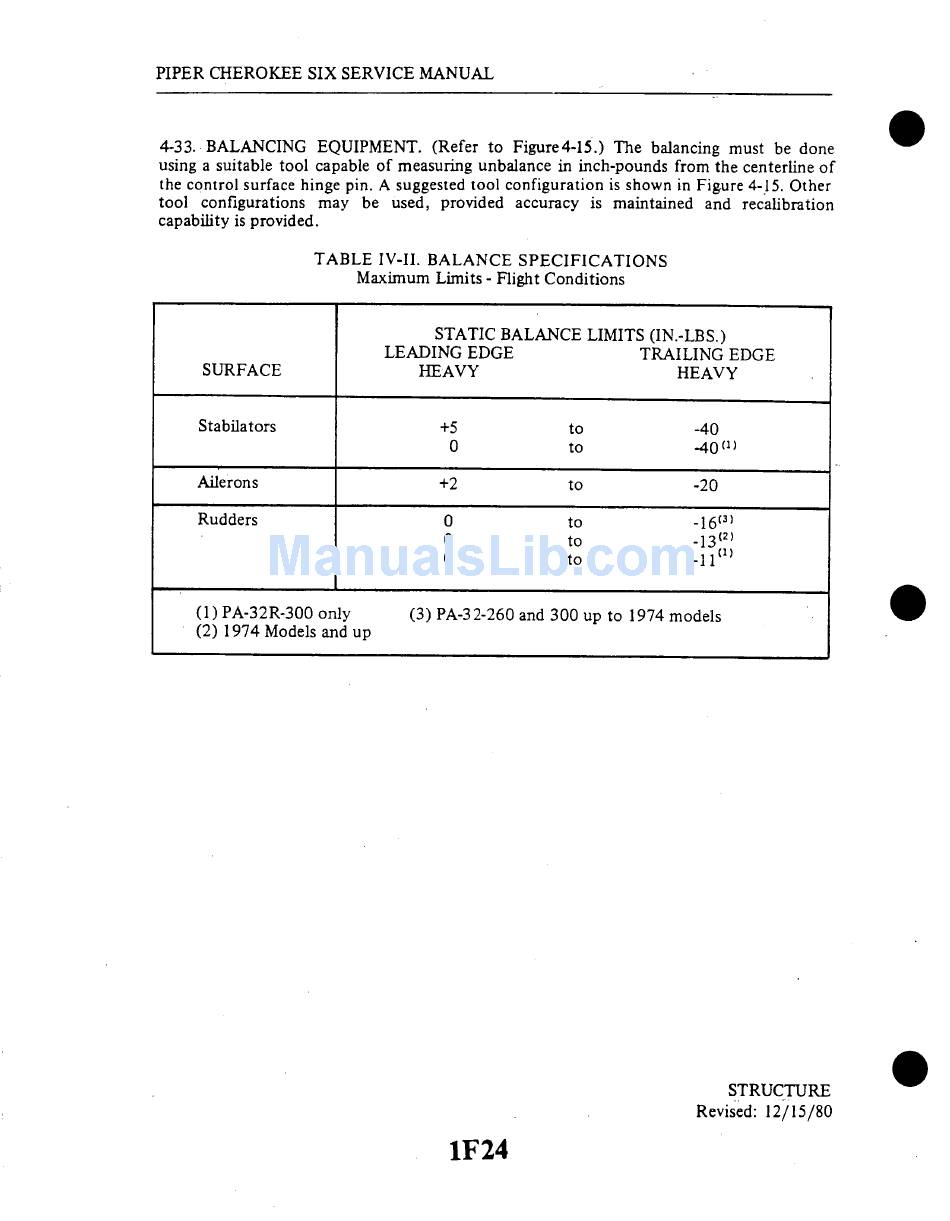

TABLE IV-II. BALANCE SPECIFICATIONS
Maximum Limits - Flight Conditions
STATIC BALANCE LIMITS (IN.-LBS.)
LEADING EDGE
TRAILING EDGE
HEAVY
HEAVY
SURFACE
Stabilators
+5
0
Ailerons
+2
to
to
to
to
to
to
-40
(1) PA-32R-300 only
(2) 1974 Models and up
(3) PA-32-260 and 300 up to 1974 models
STRUCTURE
Revised: 12/15/80
1F24
