2601
PITCH TRIM
NOTE
5 AMP
RED WIRE FROM SENSOR
GOES TO A- (WIRE CODE CIA)
WHITE WIRE FROM
SENSOR GOES TO RED
WIRE FROM THE CONTROL
WHEEL SWITCH
UP DN
PITCH SERVO
PA-32R-300,
SERIAL
NOS. 32R-7680001 TO 32R-7880068
PA-32-260,
SERIAL
NOS. 32-7400001
TO
3 2
-
7 8 0 0 0 0 8
PA-32-300,
Serial Nos. 32-7440001 &
uP.
FUEL PUMP
FUEL PUMP
PIPER CHEROKEE SIX SERVICE MANUAL
NOTE:
USED
ON PA-32-260,
SERIAL NOS.
32-7500001
TO
32-7800008 AND
PA-32-300,
SERIAL NOS.
32-7840001
AND UP
SEE NOTE:
PITOT HEAT
15 AMP
PA-32-260,
SERIAL NOS. 32-7400001
TO 32-7800008.
PA-32-300,
SERIAL
NOS. 32-7440001
AND UP.

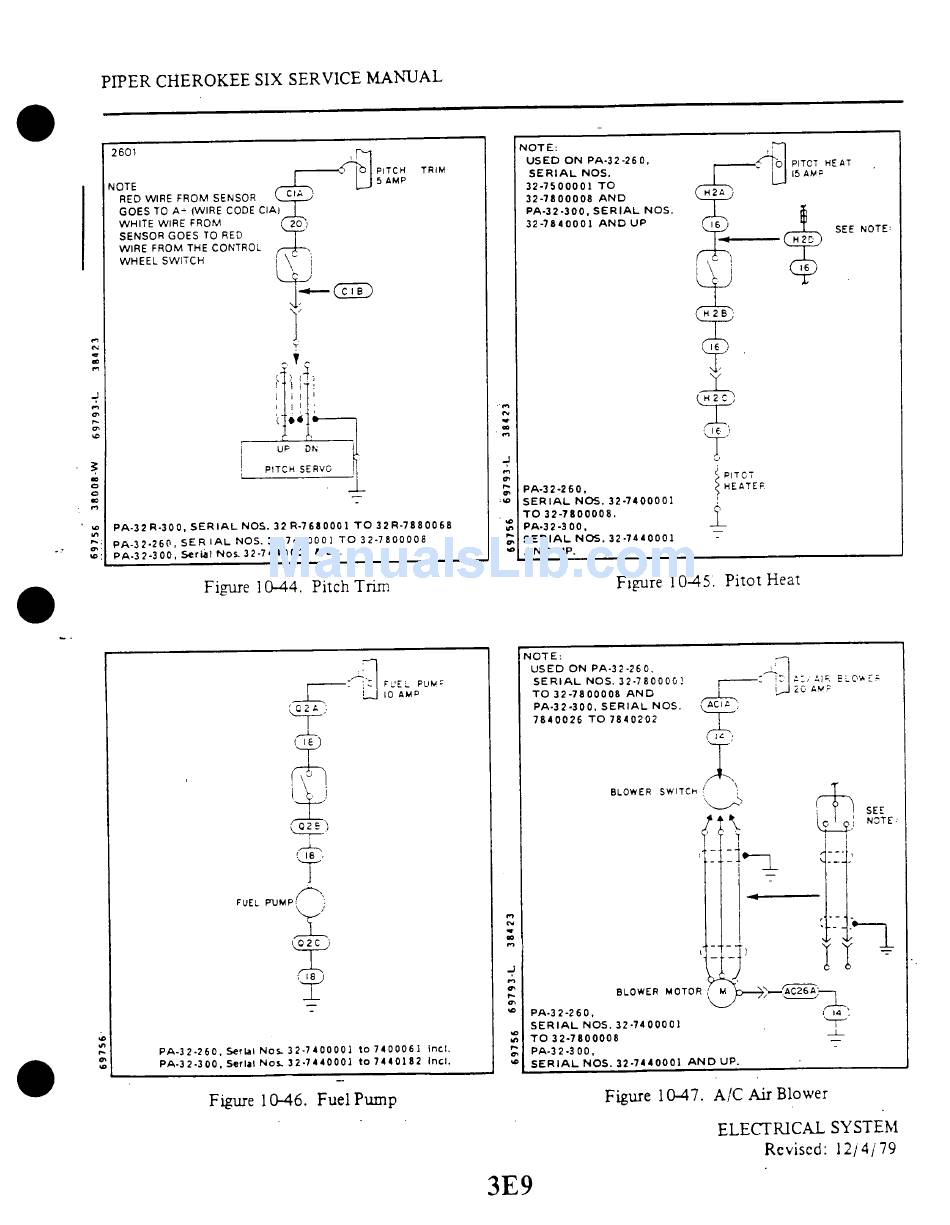

Figure 10-44. Pitch Trim
Figure 10-45. Pitot Heat
NOTE:
USED
ON PA-32-260.
SERIAL
NOS. 32-780000
TO 32-7800008
AND
PA-32-300,
SERIAL NOS.
7840026
TO 7840202
BLOWER SWITCH
BLOWER MOTOR M
PA-32-260,
SERIAL
NOS. 32-7400001
TO 32-7800008
PA-32-300,
SERIAL NOS.
32-7440001 AND
UP.
PA-32-260,
Serial Nos
32-7
4
00001
to 7400061 Incl.
PA-32-300
Serial Nos. 32-7
4 4 0 0 0
1 to 7440182
Incl.
Figure 10-46. FuelPump
Figure 10-47. A/C Air Blower
ELECTRICAL SYSTEM
Revised: 12/4179
