View Looking Aft
PIPER CHEROKEE SIX SERVICE MANUAL
AN970-3
Washer
Inspect
Inspect

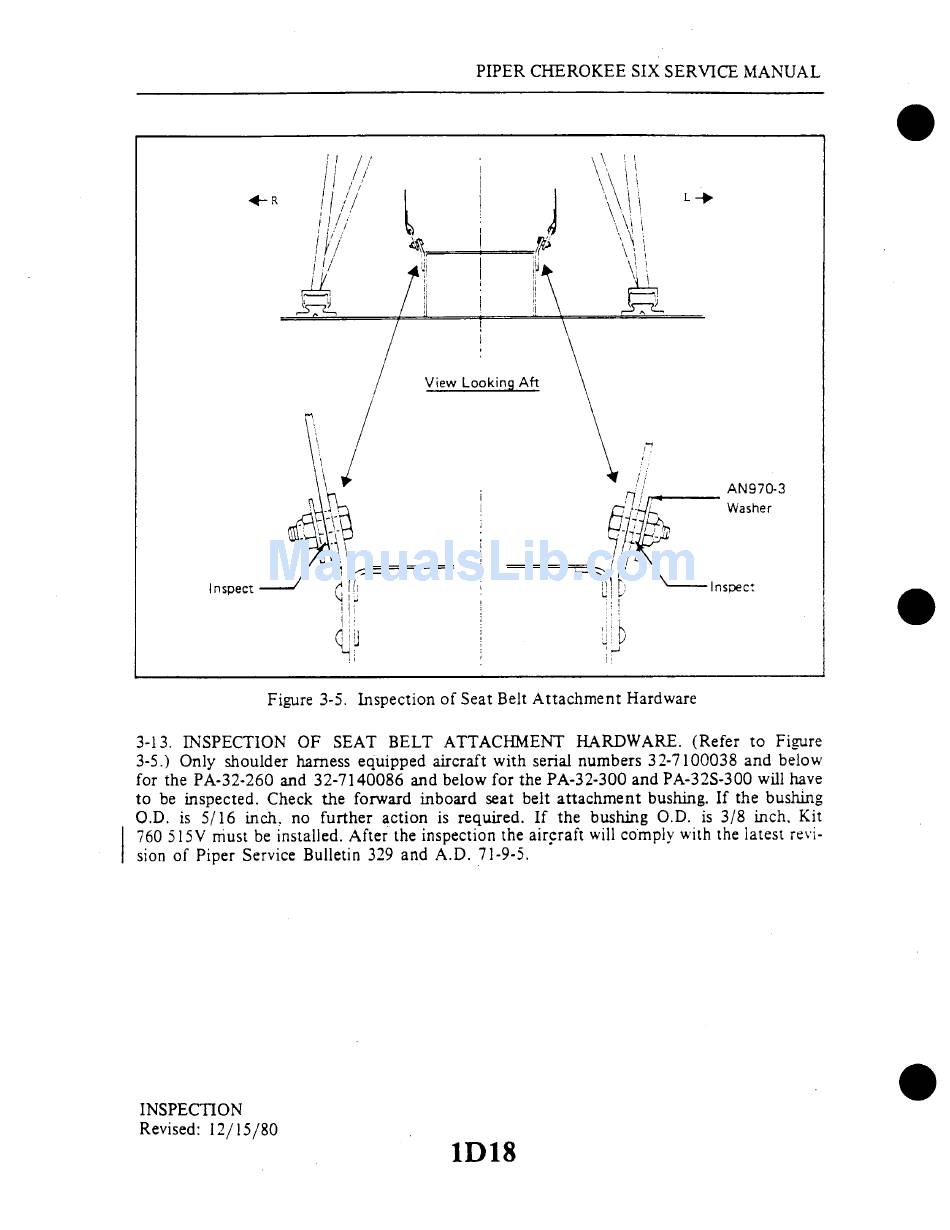

Figure 3-5. Inspection of Seat Belt Attachment Hardware
3-13. INSPECTION OF SEAT BELT ATTACHMENT HARDWARE. (Refer to Figure
3-5.) Only shoulder harness equipped aircraft with serial numbers 32-7100038 and below
for the PA-32-260 and 32-7140086 and below for the PA-32-300 and PA-32S-300 will have
to be inspected. Check the forward inboard seat belt attachment bushing. If the bushing
O.D. is 5/16 inch, no further action is required. If the bushing O.D. is 3/8 inch, Kit
760 515V must be installed. After the inspection the aircraft will comply with the latest revi-
sion of Piper Service Bulletin 329 and A.D. 71-9-5.
INSPECTION
Revised: 12/15/80
1D18
