Piper Cherokee Six Service Manual page 635

3105
CONSOLE
LIGHTS
rL
PIPER CHEROKEE SIX SERVICE MANUAL
UPPER
PANEL
LIGHTS
-~~
INSTRUMENT LIGHTS
5 AMP
75 AMP
LOWER
PANEL
LIGHTS
CENTER
EXTRUSION
LIGHTS
TO START ACC C/B
RADIO LIGHTS
I DIMMER
INSTRUMENT
LIGHTS
DIMMER
ft
NOTE:
1 PA-32-300 SERIAL NOS. 32-7940275 AND UP

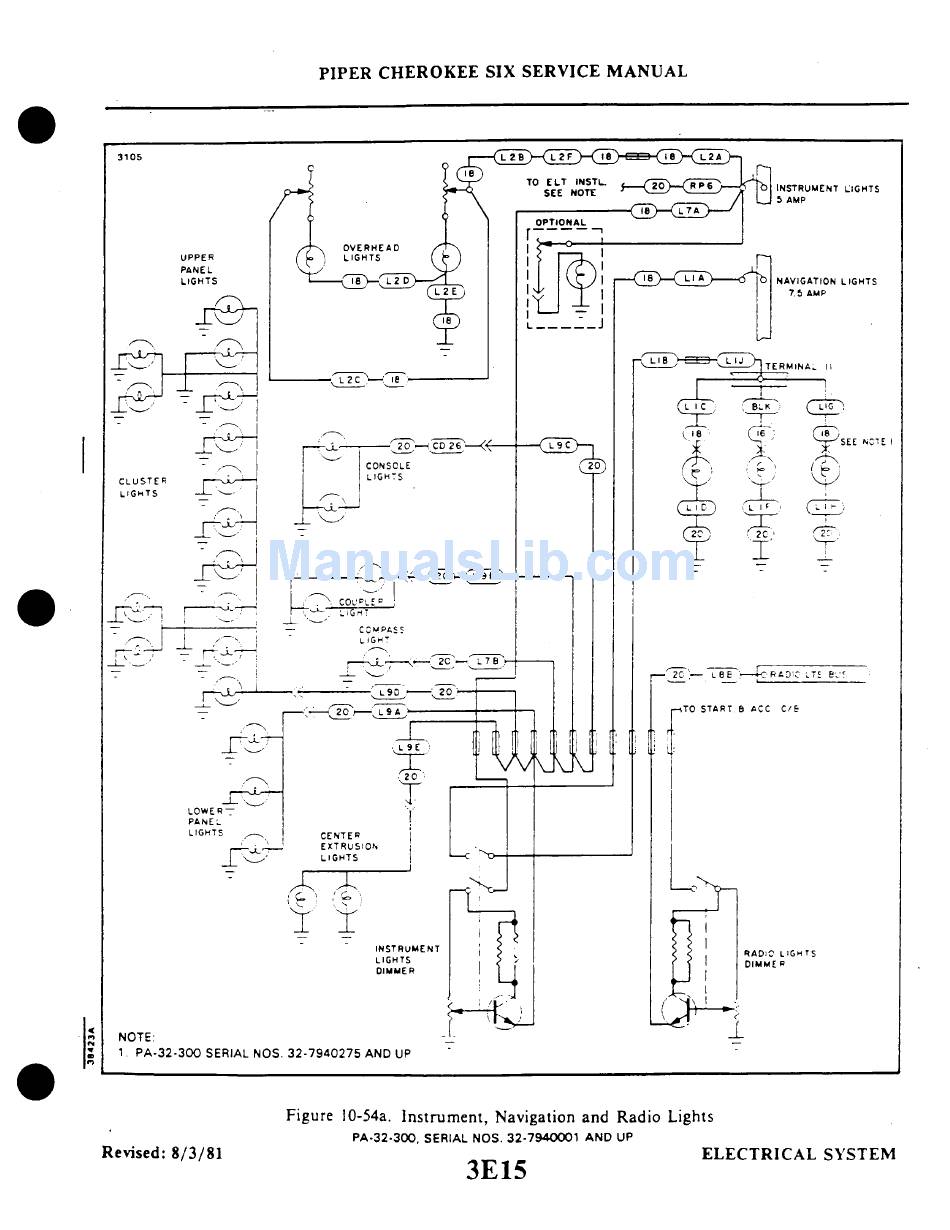

Figure 10-54a. Instrument, Navigation and Radio Lights
PA-32-300, SERIAL NOS. 32-7940001 AND UP
ELECTRICAL SYSTEM
3E15
Revised: 8/3/81
