Piper Cherokee Six Service Manual page 151

C370
SNUBBER
SEE
NOTE 1
STRIKER PLATE
VIEW A-A
(ROTATED)
STRIKER PLATE.
MASKING TAPE
APPLY ADHESIVE HERE
VIEW D
APPLICATION OF TAPE TO
DOOR JAMB
PIPER CHEROKEE SIX SERVICE MANUAL
G
K B
NOTES
1. ORIENT SNUBBER FLAT WITH THIS SURFACE.
2. BUTT JOINT OCCURS AT DOOR DRAIN AREA
3. DO NOT STRETCH SNUBBER AROUND CORNERS.
SNUBBER
OUTBD
FWD
SNUBBER
SCUFF PLATE
NOTE 1
VIEW C-C
VIEW B-B
0 20
IN.
VIEW E-E
VIEW F-F
VIEW G-G
(ROTATED)

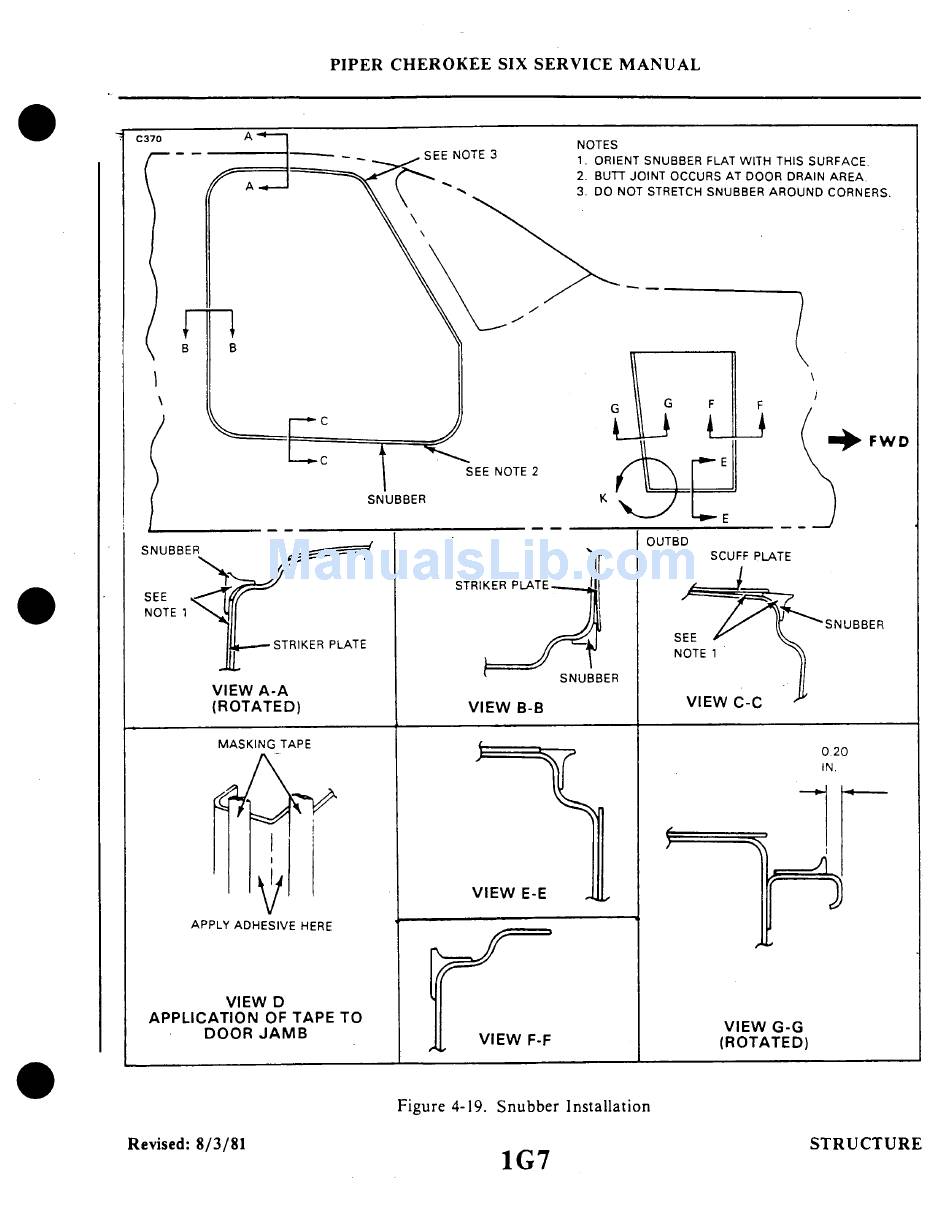

Figure 4-19. Snubber Installation
Revised: 8/3/81 STRUCTURE
1G7
