PIPER CHEROKEE SIX SERVICE MANUAL
2607
1. MASTER SWITCH
2. ACCESSORY SWITCHES
3. RADIO COMPASS
4. CLOCK
5. TURN COORDINATOR
6. AIRSPEED INDICATOR
7. DIRECTIONAL GYRO
8. ARTIFICIAL HORIZON
9. RATE OF CLIMB INDICATOR
10. ALTIMETER
11. MARKER BEACON LIGHTS
12. GLIDESLOPE INDICATOR
13. OMNI BEARING HEAD
14. RADIO SELECTOR PANEL
15. MAGNETIC COMPASS
16. NAV/COMM TRANSCEIVERS
17. TRANSPONDER
18. ADF RADIO
19. DME
20. LIGHTER
22. ENGINE GAUGES
23. NAV COUPLER
24. PITCH TRIM SWITCH
25. MAGNETO & STARTER SWITCH
26. MANIFOLD PRESSURE
27. FUEL INDICATOR
28. TACHOMETER
29. PRIMER
30. POWER CONTROL QUADRANT
31. CARBURETOR HEAT
32. NAV & INSTRUMENT LIGHTS
33. MIXTURE INDICATOR
34. GYRO SUCTION GAUGE
35. CIRCUIT BREAKERS
36. HEAT & DEFROSTER CONTROLS

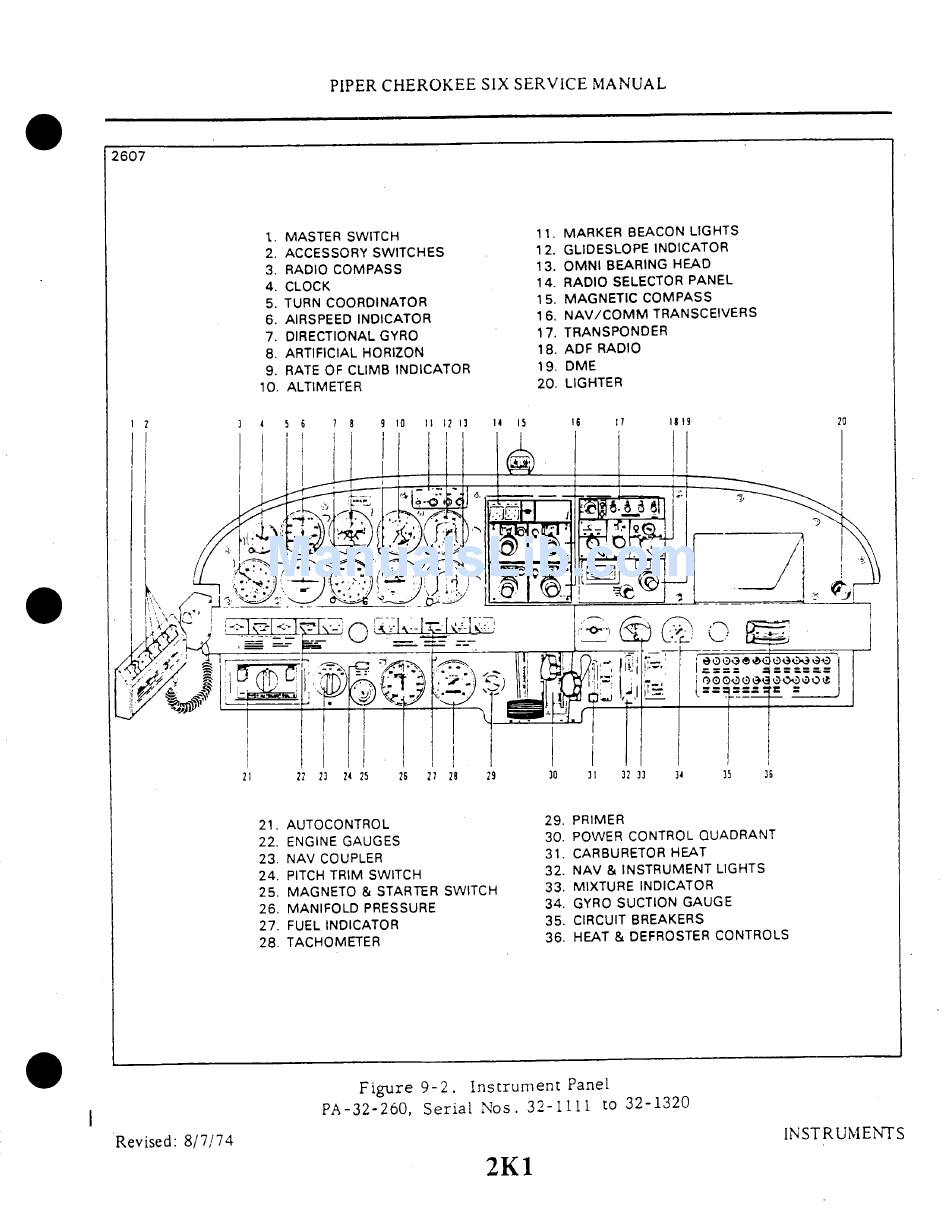

Figure 9-2. Instrument
Panel
PA-32-260,
Serial Nos. 32-1111
to 32-1320
Revised: 8/7/74
INSTRUMENTS
2K1
