PIPER CHEROKEE SIX SERVICE MANUAL
2638
1 CAP. VALVE
13 TORQUE LINKS
2 PLUG. FILLER 14 O-RING
3 O-RING. CYLINDER HEAD
IS RING SCRAPER
4 HEAD CYLINDER 16 RING. SPACER
5 O-RING. CYLINDER HEAD 17 RING. RETAINER
6 O-RING
18 TUBE. PISTON
7 TUBE. ORIFICE
19 AXLE STUB
8 PLATE. ORIFICE 20 SPACER
9 STRUT HOUSING
21 SPACER
10 WASHER
22. NUT. WHEEL RETAINER
11 NUT
23 PIN. CLEVIS
12 WASHER
NOTE. UNKS SHOULD BE LOOSE ENOUGH TO ALLOW FREE ACTION
OF THE GEAR. BUT ALSO RESIST SIDE PLAY. TO ELMINATE
SIDE PLAY ONE SHIM WASHER (63311-03 (.005)) PER LINK
HINGE MAY BE USED IF REQUIRED. [IF BOTH LINKS REQUIRE
SHIMS. MAKE SURE TO INSTALL THEM ON THE SAME SIDE OF
EACH HINGE. MAXIMUM SIDE PLAY .006/.007.

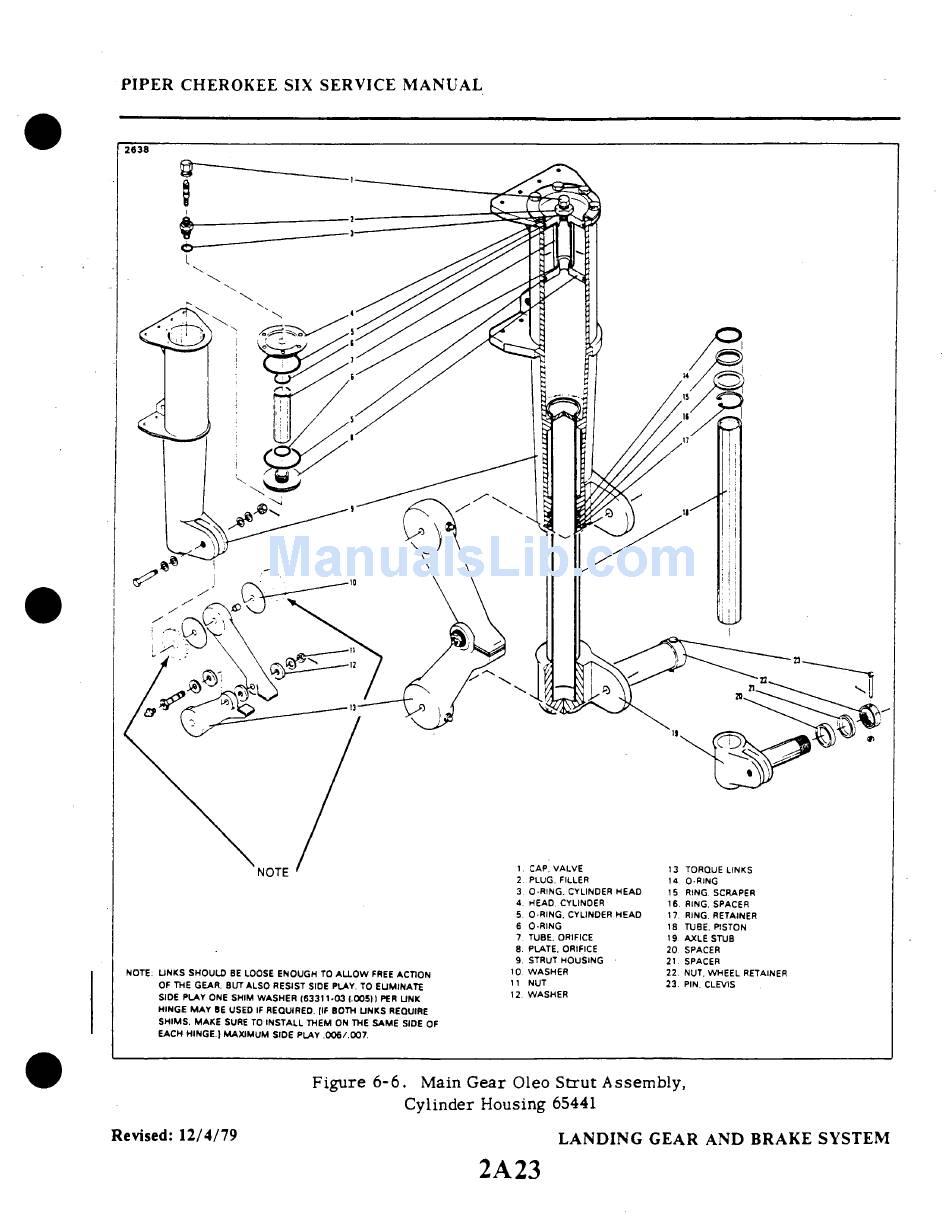

Figure 6-6. Main Gear Oleo Strut Assembly,
Cylinder Housing 65441
Revised: 12/4/79
LANDING GEAR AND BRAKE SYSTEM
2A23
