Control Column Assembly (Pa-32-260 And 300) - Piper Cherokee Six Service Manual

1655
17
PIPER CHEROKEE SIX SERVICE MANUAL
1
10-
12
1
1. CONTROL WHEEL
2. TUBE, CONTROL WHEEL
3.
BOLT, WASHER & NUT
4. FLEXIBLE JOINT
5. TEE BAR
6. SPACER STOP
7. CHAIN, RIGHT ROLLER
8. CHAIN, LEFT ROLLER
9. TURNBUCKLE, CONTROL CHAINS
10. BOLT, BUSHING, NUT & COTTER PIN
I . CONTROL CABLE, STABILATOR
12. CONTROL CABLE, AILERON
13. PULLEY
14. BOLT, WASHERS (4) & NUT
15.
BOLT, WASHERS (2) & NUT
16.
BOLT, WASHER, NUT & COTTER PIN
17. SPROCKET, RIGHT CONTROL WHEEL
18.
SPROCKET, LEFT CONTROL WHEEL
19. IDLER SPROCKET, AFT
20.
SPACER, IDLER SPROCKETS
21.
IDLER SPROCKET, FORWARD
22. BOLT ASSEMBLY
23. PIN
11
16
0
N

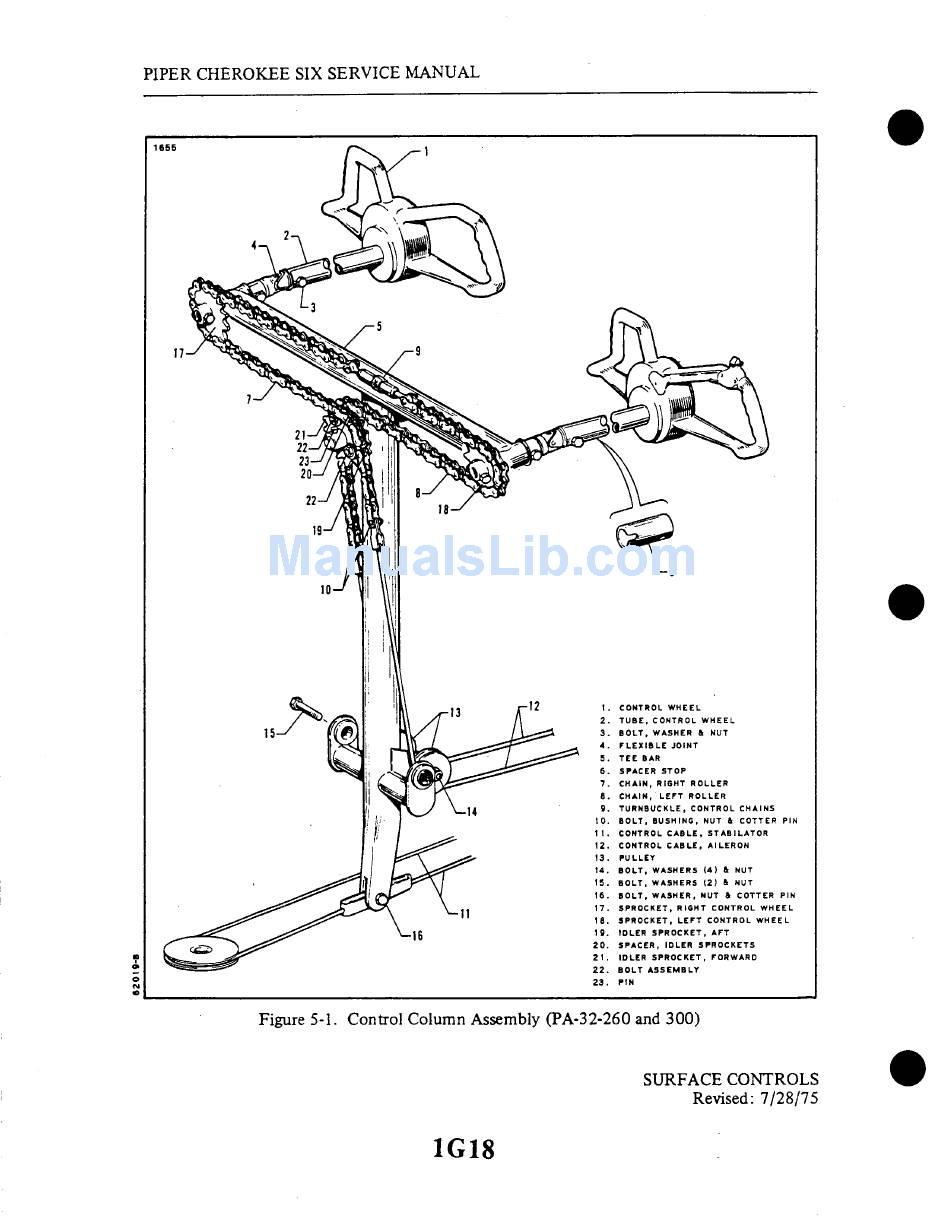

Figure 5-1. Control Column Assembly (PA-32-260 and 300)
SURFACE CONTROLS
Revised: 7/28/75
1G18
