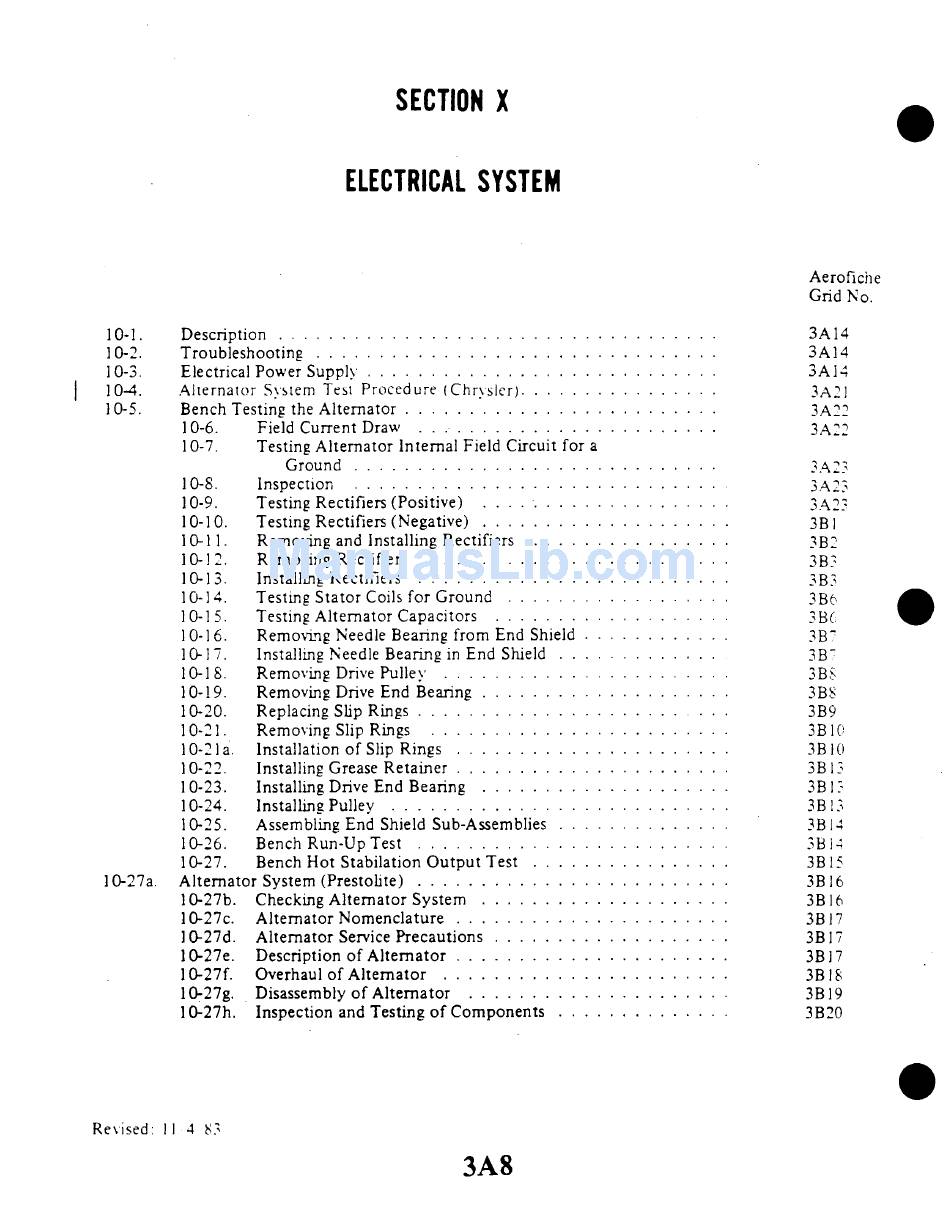

SECTION X
ELECTRICAL SYSTEM
Aerofiche
Grid No.
10-1. Description . ................... .............. 3A14
10-2. Troubleshooting ... ........................... 3A14
10-3. Electrical Power Supply .............. ............ ............. 3A14
10-4. Alternator System Test Procedure (Chrysler) ............... 3A21
10-5.
Bench Testing the Alternator ......................... 3A22
10-6. Field Current Draw ........................
3A22
10-7.
Testing Alternator Internal Field Circuit for a
Ground .............................
3A23
10-8. Inspection . ............................
3A2
10-9. Testing Rectifiers (Positive)
... ............. .......... . 3A2
10-10. Testing Rectifiers (Negative) ....................
3B1
10-11. Removing and Installing Rectifiers ................
3B2
10-12. Removing Rectifiers .........................
3B3
10-13. Installing Rectifiers .............. ...........
3B3
10-14.
Testing Stator Coils for Ground ............. . .....
3B6
10-15. Testing Alternator Capacitors ............ .. ......... .. 3B(
10-16. Removing Needle Bearing from End Shield ............ 3B-
10-17. Installing Needle Bearing in End Shield .........
..... . 3B7
10-18. Removing Drive Pulley . ........ ........ ......... 3BS
10-19. Removing Drive End Bearing .................... 3BS
10-20. Replacing Slip Rings .................... ... 3B9
10-21. Removing Slip Rings ...................... .......... . 3B10
10-21a. Installation of Slip Rings ....................
.. 3B10
10-22. Installing Grease Retainer .....................
. 3B 3
10-23. Installing Drive End Bearing .................... 3B13
10-24. Installing Pulley ........................... 3B13
10-25. Assembling End Shield Sub-Assemblies .............. 3B 14
10-26. Bench Run-Up Test .................
..... ........... .
3
14
10-27. Bench Hot Stabilation Output Test ................ 3B 15
10-27a. Alternator System (Prestolite) .........................
3B 16
10-27b. CheckingAlternator System .................... 3B16
10-27c. Alternator Nomenclature ...................... 3B 17
10-27d. Alternator Service Precautions ................... 3B17
10-27e. Description of Alternator ......................
3B 17
10-27f. Overhaul of Alternator ....................... 3B 18
10-27g. Disassembly of Alternator .....................
3B19
10-27h. Inspection and Testing of Components .............. 3B20
Revised: 11/483
3A8
