STRIKER
SCARF AND
BUTT LEGS
PIPER CHEROKEE SIX SERVICE MANUAL
8970 NOTE
TRIM SNUBBER TO CLEAR ALL DOOR LATCH PINS
AS REQUIRED.
STRIKER PLATE
UNDER SNUBBER
CUT
VIEW H-H
VIEW I-I
VIEW J
TRIM SNUBBER
TO CLEAR BAGGAGE
DOOR LATCH HANDLE
VIEW K VIEW L-L

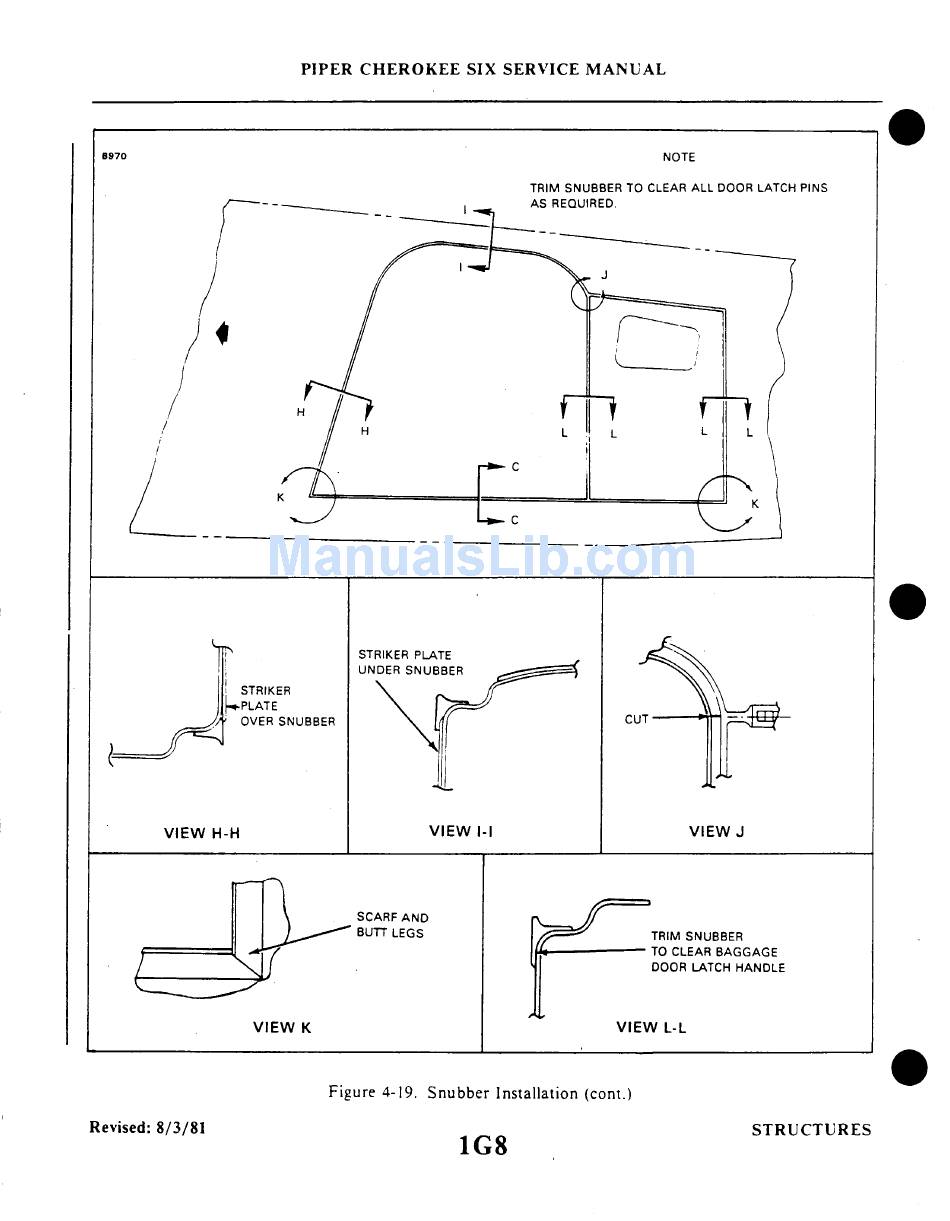

Figure 4-19. Snubber
Installation (cont.)
Revised: 8/3/81
STRUCTURES
1G8
