Xerox 8830 Service Manual page 440

Installation of Diagnostic Software - Laptop Computer
Perform the following steps to Install the diagnostic software on the computer used to control
the scanner.
1. Ensure that the computer is running Microsoft Windows 3.1, 3.1.1, or Windows 96. MS
DOS 6.2 or better must also be present. The diagnostic software will only operate under
one of these operating systems.
2. Close any applications running under Windows at the time.
3. Insert the floppy disk that contains the diagnostic software into the floppy disk drive.
4. (Figure 20): Open the Program manager in Windows and choose RUN from the File
menu.
5. Type A: Setup and press the ENTER key.
6. Follow the directions on the screen to complete the installation.

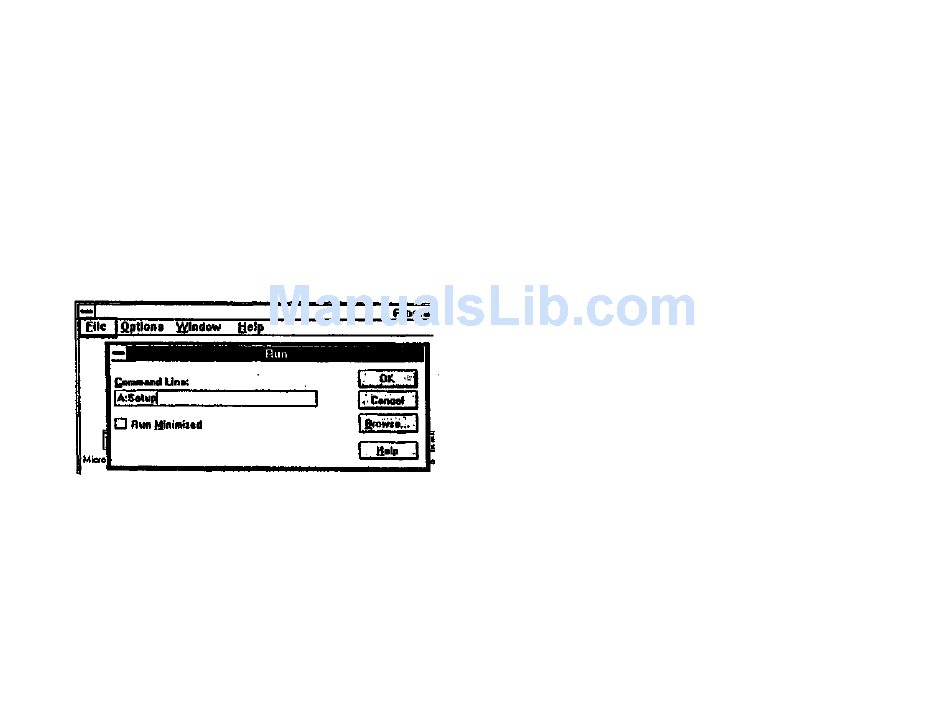

Figure 2 0 . Running the Setup Program
General Procedures
Diagnostics
Starting the Diagnostic Software - Laptop Computer
Perform the following steps to start the diagnostic software when a laptop computer is used to
run the diagnostics for the scanner.
1. Switch off the scanner, the laptop computer, and the control computer for the system to
which the scanner is connected.
2. Disconnect the scanner SCSI cable from the control computer.
3. Connect the Laptop computer SCSI cable to the scanner.
4. Ensure that all other SCSI connections are disconnected from the scanner.
5. Switch on the scanner and wait ten seconds.
6. Switch on the laptop computer and allow it to complete the boot process.
7. Locate the SCSI7356 program and start it.
8. Enter the password and press the ENTER key on the keyboard,
9. Press the START button on the screen
10. Press the Normalize Cameras button.
• At this point you may normalize the scanner's cameras, or you may skip the test by
pressing EXIT. If you plan to perform any diagnostic tests that require making an
image, you should first perform a camera normalization. Refer to Using the Diagnos-
tic Software for further Information about features of the Diagnostic Software.
