3.3.4. Ethernet port

Lightware UMX4x4-Pro matrices can be remote controlled through Ethernet as well. The
Ethernet port can be connected to a LAN hub, switch or router with a UTP patch cable. If
connecting to a computer directly, a cross UTP cable has to be used!
See section
Lightware recommends the termination of TP cables on the basis of TIA/EIA T 568 A or
TIA/EIA T 568 B standards.
Pin
Section 3. Controls and connections
4.5 about remote operation on page
1 8
LED1 LED2

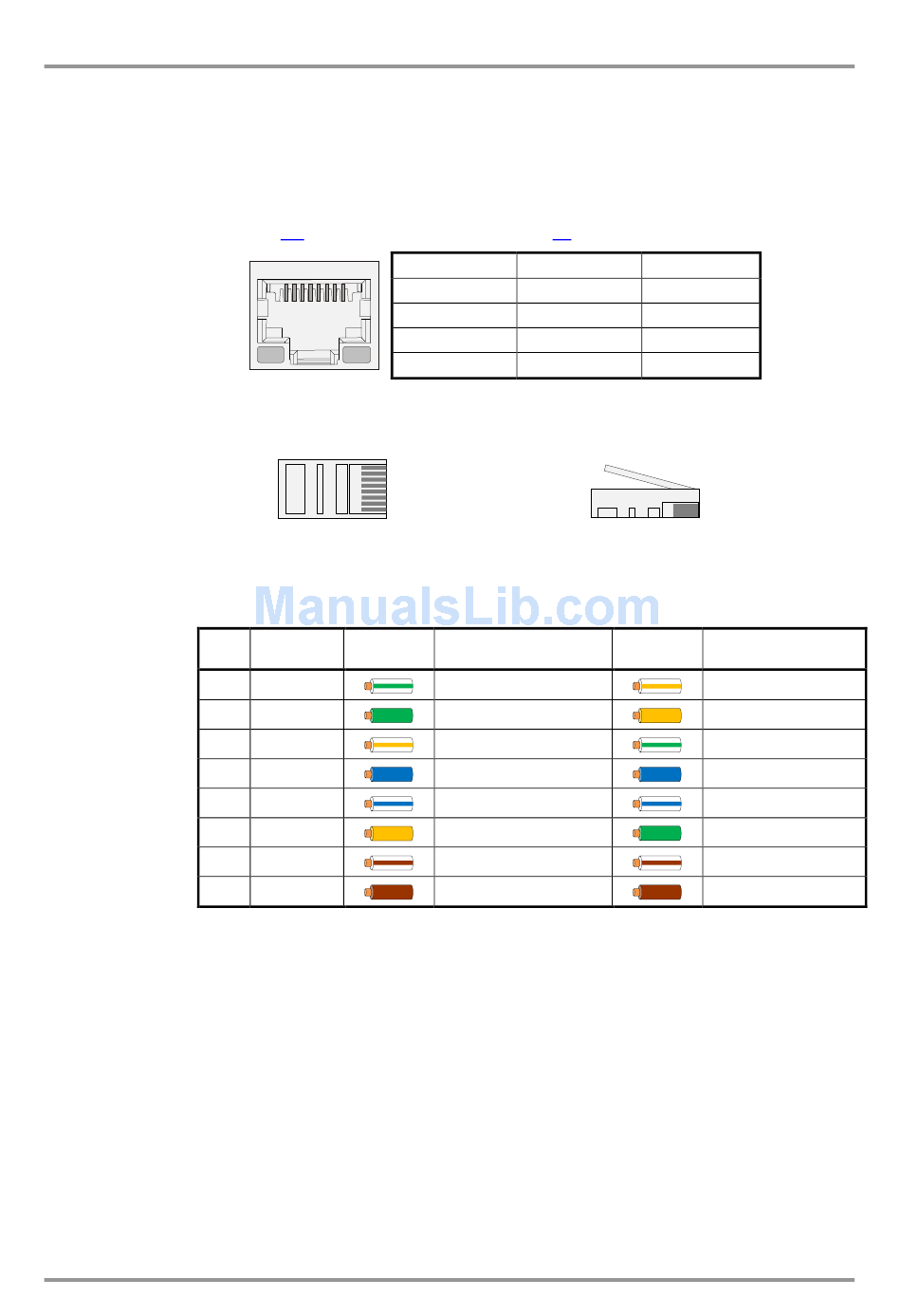

Figure 3-5. RJ45 receptacle connector
TIA/EIA
Name
T568 A
1 TX +
2 TX -
3 RX +
4 Not used
5 Not used
6 RX -
7 Not used
8 Not used
Table 3-3. Recommended termination of TP cables
41
LED1
OFF no activity
Amber half duplex
Green
full duplex
Blink
activity
1
8
Figure 3-6. RJ45 plug
color and
name
white/green stripe
green solid
white/orange stripe
blue solid
white/blue stripe
orange solid
white/brown stripe
brown solid
User's Manual
for more information.
LED2
no link
10 Mbps
100 Mbps
N/A
1
TIA/EIA
T568 B and name
white/orange stripe
orange solid
white/green stripe
white/blue stripe
green solid
white/brown stripe
brown solid
UMX4x4-Pro
color
blue solid
