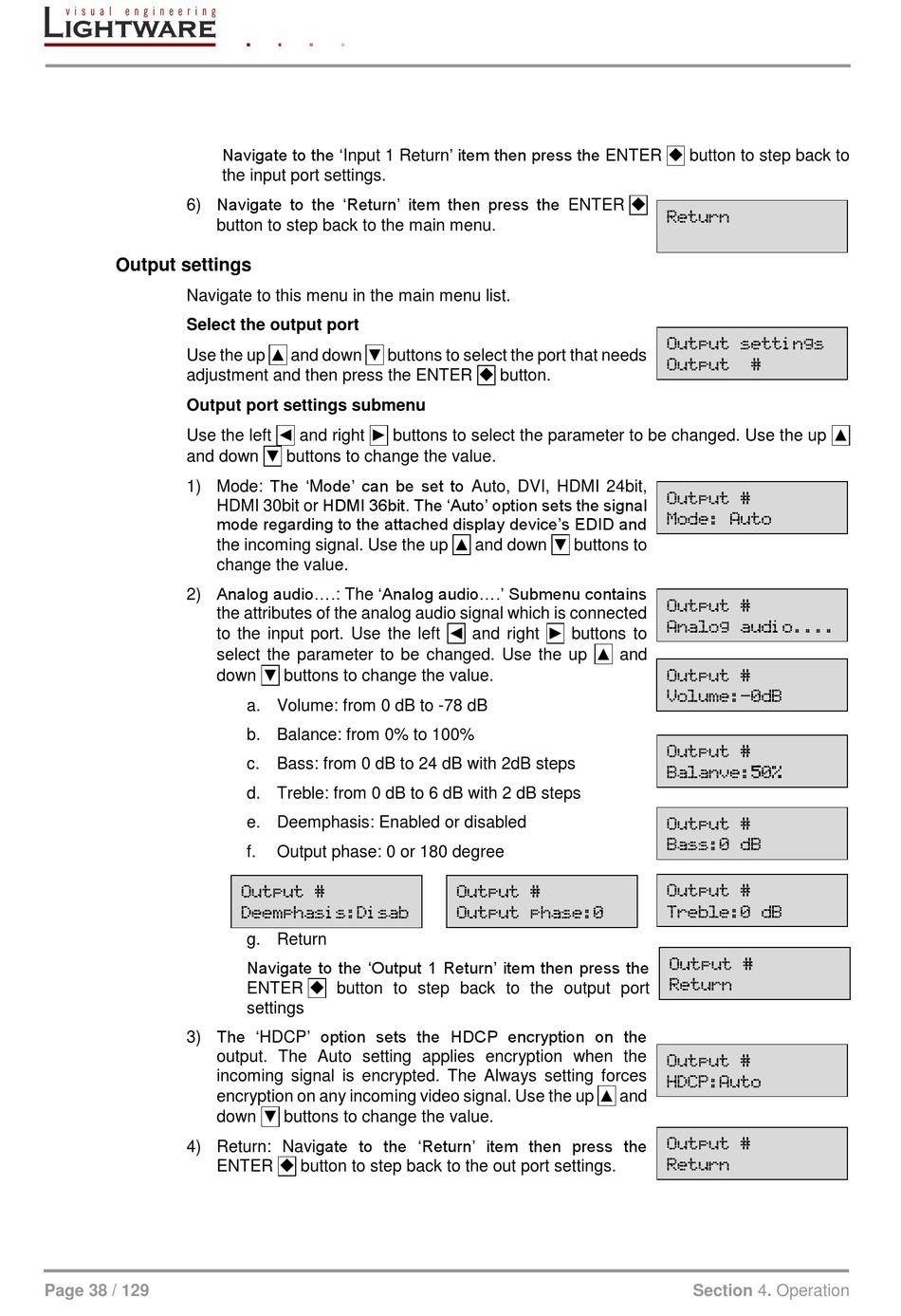

Lightware UMX4x4-Pro User Manual page 38

6) Navigate to the 'Return' item then press the ENTER 
Output settings
Navigate to this menu in the main menu list.
Select the output port
Use the up ▲ and down ▼ buttons to select the port that needs
adjustment and then press the ENTER  button.
Output port settings submenu
Use the left ◄ and right ► buttons to select the parameter to be changed. Use the up ▲
and down ▼ buttons to change the value.
1) Mode: The 'Mode' can be set to Auto, DVI, HDMI 24bit,
2) Analog audio....: The 'Analog audio....' Submenu contains
3) The 'HDCP' option sets the HDCP encryption on the
4) Return: Navigate to the 'Return' item then press the
Page 38 / 129
Navigate to the 'Input 1 Return' item then press the ENTER  button to step back to
the input port settings.
button to step back to the main menu.
HDMI 30bit or HDMI 36bit. The 'Auto' option sets the signal
mode regarding to the attached display device's EDID and
the incoming signal. Use the up ▲ and down ▼ buttons to
change the value.
the attributes of the analog audio signal which is connected
to the input port. Use the left ◄ and right ► buttons to
select the parameter to be changed. Use the up ▲ and
down ▼ buttons to change the value.
a. Volume: from 0 dB to -78 dB
b. Balance: from 0% to 100%
c. Bass: from 0 dB to 24 dB with 2dB steps
d. Treble: from 0 dB to 6 dB with 2 dB steps
e. Deemphasis: Enabled or disabled
f. Output phase: 0 or 180 degree
Output #
Deemphasis:Disab
g. Return
Navigate to the 'Output 1 Return' item then press the
ENTER  button to step back to the output port
settings
output. The Auto setting applies encryption when the
incoming signal is encrypted. The Always setting forces
encryption on any incoming video signal. Use the up ▲ and
down ▼ buttons to change the value.
ENTER  button to step back to the out port settings.
Output #
Output phase:0
Return
Output settings
Output #
Output #
Mode: Auto
Output #
Analog audio....
Output #
Volume:-0dB
Output #
Balanve:50%
Output #
Bass:0 dB
Output #
Treble:0 dB
Output #
Return
Output #
HDCP:Auto
Output #
Return
Section 4. Operation
