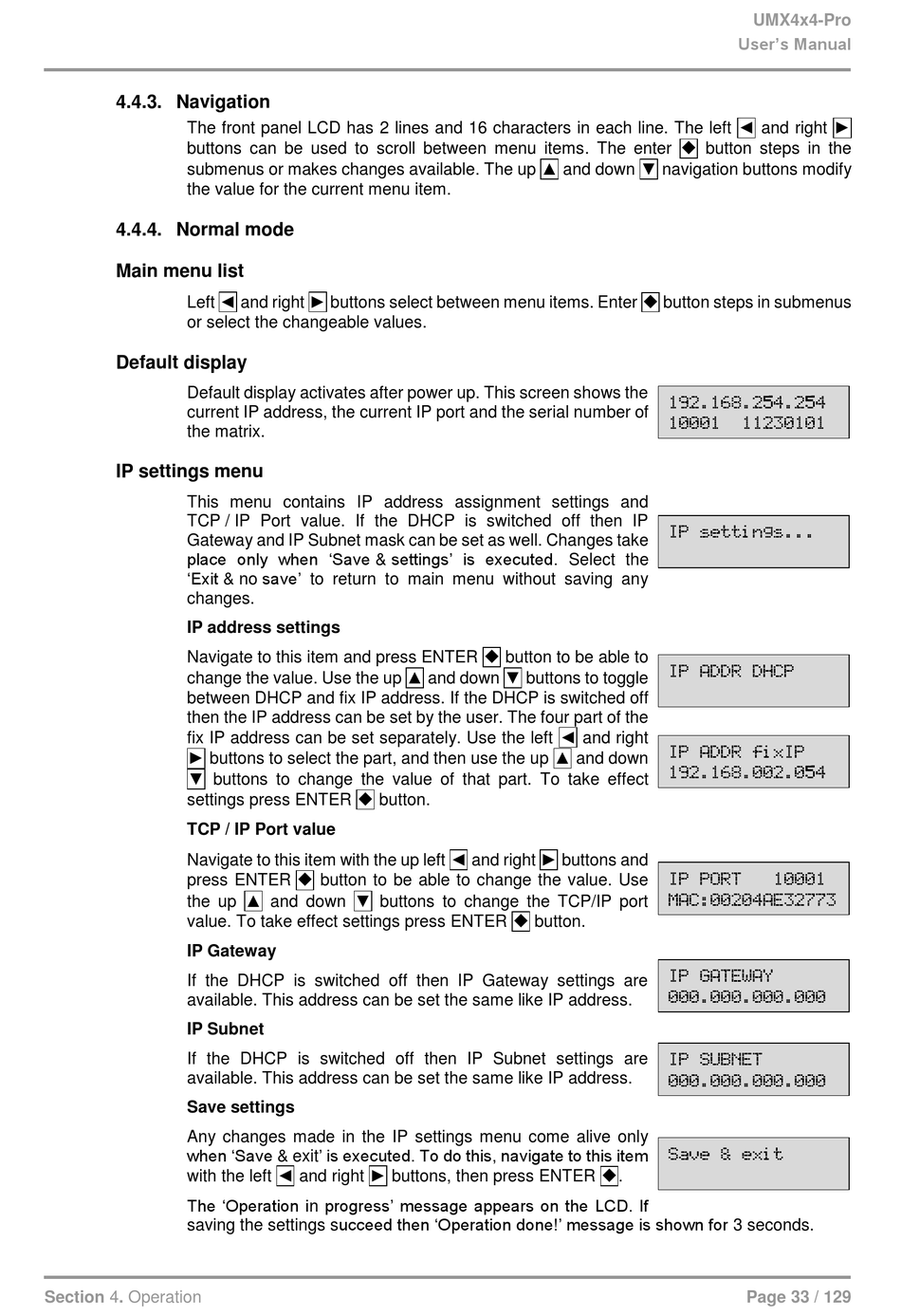

4.4.3. Navigation

The front panel LCD has 2 lines and 16 characters in each line. The left ◄ and right ►
buttons can be used to scroll between menu items. The enter  button steps in the
submenus or makes changes available. The up ▲ and down ▼ navigation buttons modify
the value for the current menu item.

4.4.4. Normal mode

Main menu list
Left ◄ and right ► buttons select between menu items. Enter  button steps in submenus
or select the changeable values.
Default display
Default display activates after power up. This screen shows the
current IP address, the current IP port and the serial number of
the matrix.
IP settings menu
This menu contains IP address assignment settings and
TCP / IP Port value. If the DHCP is switched off then IP
Gateway and IP Subnet mask can be set as well. Changes take
place only when 'Save & settings' is executed. Select the
'Exit & no save' to return to main menu without saving any
changes.
IP address settings
Navigate to this item and press ENTER  button to be able to
change the value. Use the up ▲ and down ▼ buttons to toggle
between DHCP and fix IP address. If the DHCP is switched off
then the IP address can be set by the user. The four part of the
fix IP address can be set separately. Use the left ◄ and right
► buttons to select the part, and then use the up ▲ and down
▼ buttons to change the value of that part. To take effect
settings press ENTER  button.
TCP / IP Port value
Navigate to this item with the up left ◄ and right ► buttons and
press ENTER  button to be able to change the value. Use
the up ▲ and down ▼ buttons to change the TCP/IP port
value. To take effect settings press ENTER  button.
IP Gateway
If the DHCP is switched off then IP Gateway settings are
available. This address can be set the same like IP address.
IP Subnet
If the DHCP is switched off then IP Subnet settings are
available. This address can be set the same like IP address.
Save settings
Any changes made in the IP settings menu come alive only
when 'Save & exit' is executed. To do this, navigate to this item
with the left ◄ and right ► buttons, then press ENTER .
The 'Operation in progress' message appears on the LCD. If
saving the settings succeed then 'Operation done!' message is shown for 3 seconds.
Section 4. Operation
UMX4x4-Pro
User's Manual
192.168.254.254
10001 11230101
IP settings...
IP ADDR DHCP
IP ADDR fixIP
192.168.002.054
IP PORT 10001
MAC:00204AE32773
IP GATEWAY
000.000.000.000
IP SUBNET
000.000.000.000
Save & exit
