3. Controls and connections

3.1.

UMX4x4-Pro front view

Control lock 8 Source buttons
Output lock 9
1
Status LEDs
2 Menu navigation
3 Menu display
4 Function buttons
5
Layer select
6 Source buttons
7 Destination buttons
8 Control lock
9 Output lock
Section 3. Controls and connections
6 5 Layer select
Destination buttons
7

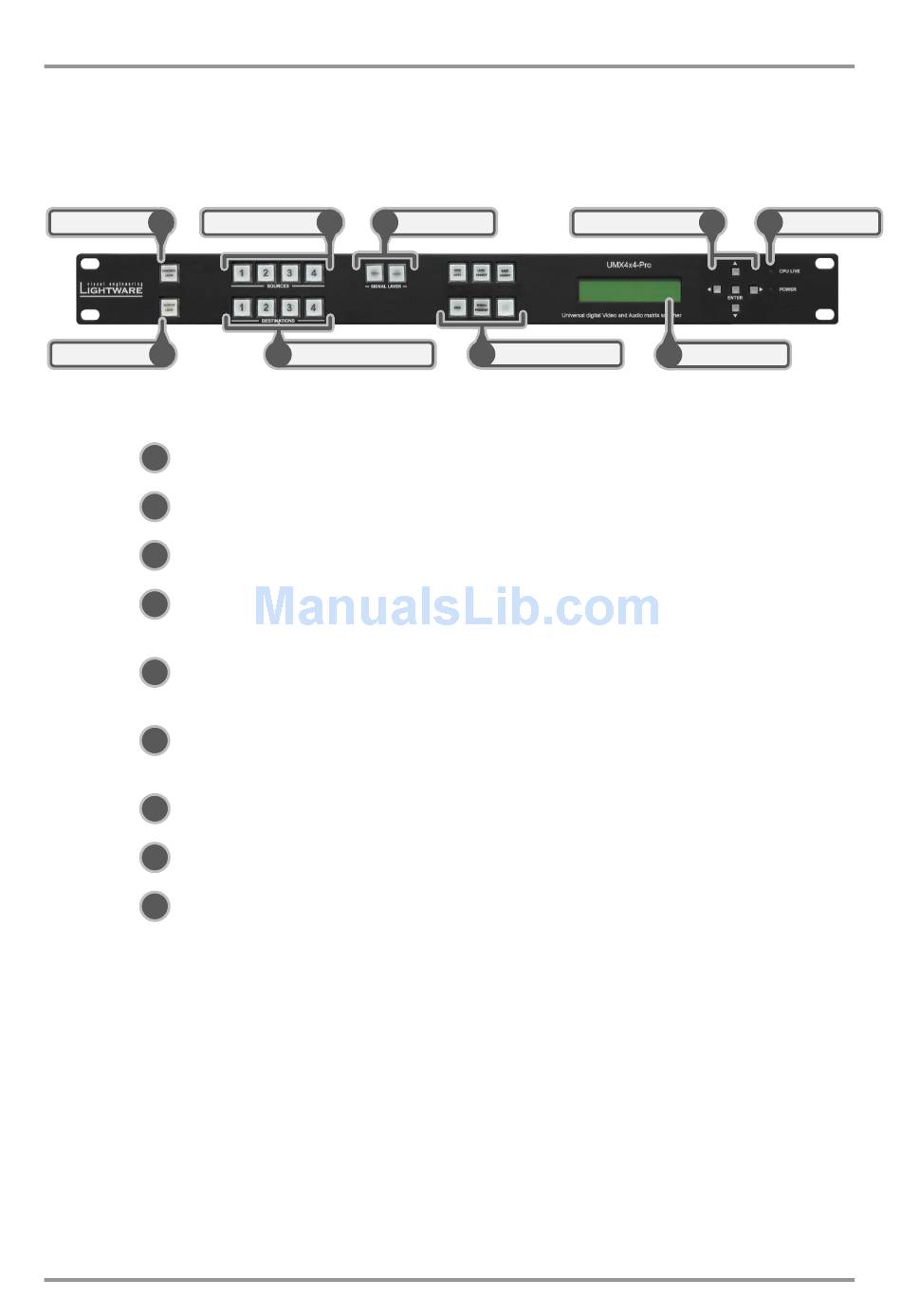

Figure 3-1. UMX4x4-Pro front view
POWER LED indicating that the unit is powered on and CPU
LIVE blinking LED indicating normal operation.
(UP, DOWN, LEFT, RIGHT, ENTER) buttons for menu
navigation.
2x16-character LCD display with backlight for menu operations
and settings.
Switching between working modes (Normal / EDID / Signal
present, Take / Autotake) and Preset operations are available
with the Function buttons.
Audio and video signals are on different layer so they can be
switched at the same time or separately. Layer select buttons
chose the desired signal(s) what will be switched.
Source buttons have three functions: to select an input, to select
a preset number, and to view the selected input's state (take
mode).
Destination buttons have two functions: to select an output, or to
view the selected output's state.
Disables or enables front panel operation. When it illuminates
red, operations on front panel are prohibited.
Locks and protects one (or more) outputs. It inhibits accidental
input changing on protected outputs.
Menu navigation
Function buttons
4
UMX4x4-Pro
User's Manual
2 1 Status LEDs
Menu display
3
Page 17 / 129
