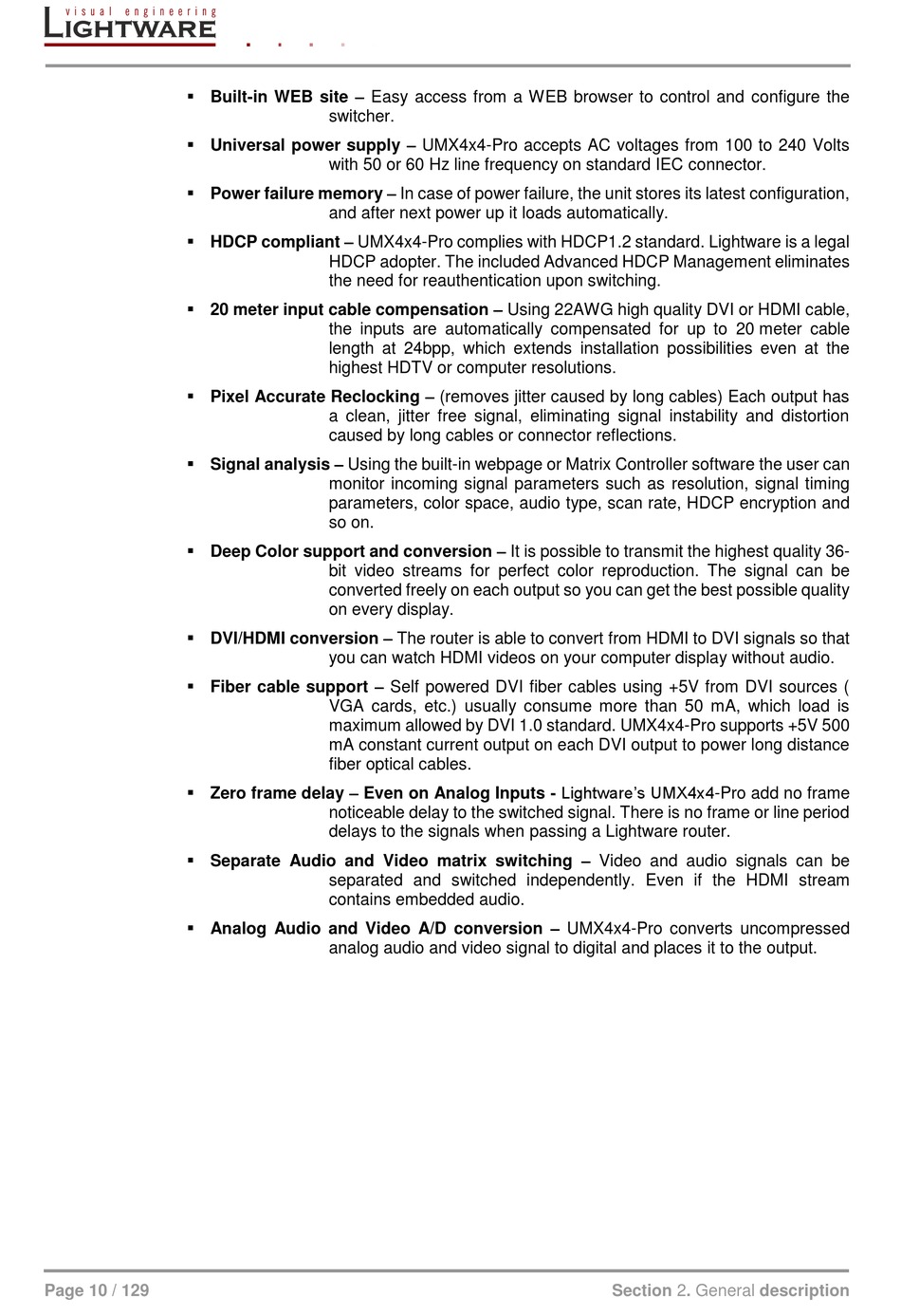

 Built-in WEB site – Easy access from a WEB browser to control and configure the
 Universal power supply – UMX4x4-Pro accepts AC voltages from 100 to 240 Volts
 Power failure memory – In case of power failure, the unit stores its latest configuration,
 HDCP compliant – UMX4x4-Pro complies with HDCP1.2 standard. Lightware is a legal
 20 meter input cable compensation – Using 22AWG high quality DVI or HDMI cable,
 Pixel Accurate Reclocking – (removes jitter caused by long cables) Each output has
 Signal analysis – Using the built-in webpage or Matrix Controller software the user can
 Deep Color support and conversion – It is possible to transmit the highest quality 36-
 DVI/HDMI conversion – The router is able to convert from HDMI to DVI signals so that
 Fiber cable support – Self powered DVI fiber cables using +5V from DVI sources (
 Zero frame delay – Even on Analog Inputs - Lightware's UMX4x4-Pro add no frame
 Separate Audio and Video matrix switching – Video and audio signals can be
 Analog Audio and Video A/D conversion – UMX4x4-Pro converts uncompressed
Page 10 / 129
switcher.
with 50 or 60 Hz line frequency on standard IEC connector.
and after next power up it loads automatically.
HDCP adopter. The included Advanced HDCP Management eliminates
the need for reauthentication upon switching.
the inputs are automatically compensated for up to 20 meter cable
length at 24bpp, which extends installation possibilities even at the
highest HDTV or computer resolutions.
a clean, jitter free signal, eliminating signal instability and distortion
caused by long cables or connector reflections.
monitor incoming signal parameters such as resolution, signal timing
parameters, color space, audio type, scan rate, HDCP encryption and
so on.
bit video streams for perfect color reproduction. The signal can be
converted freely on each output so you can get the best possible quality
on every display.
you can watch HDMI videos on your computer display without audio.
VGA cards, etc.) usually consume more than 50 mA, which load is
maximum allowed by DVI 1.0 standard. UMX4x4-Pro supports +5V 500
mA constant current output on each DVI output to power long distance
fiber optical cables.
noticeable delay to the switched signal. There is no frame or line period
delays to the signals when passing a Lightware router.
separated and switched independently. Even if the HDMI stream
contains embedded audio.
analog audio and video signal to digital and places it to the output.
