5.3.5.

Preset operations

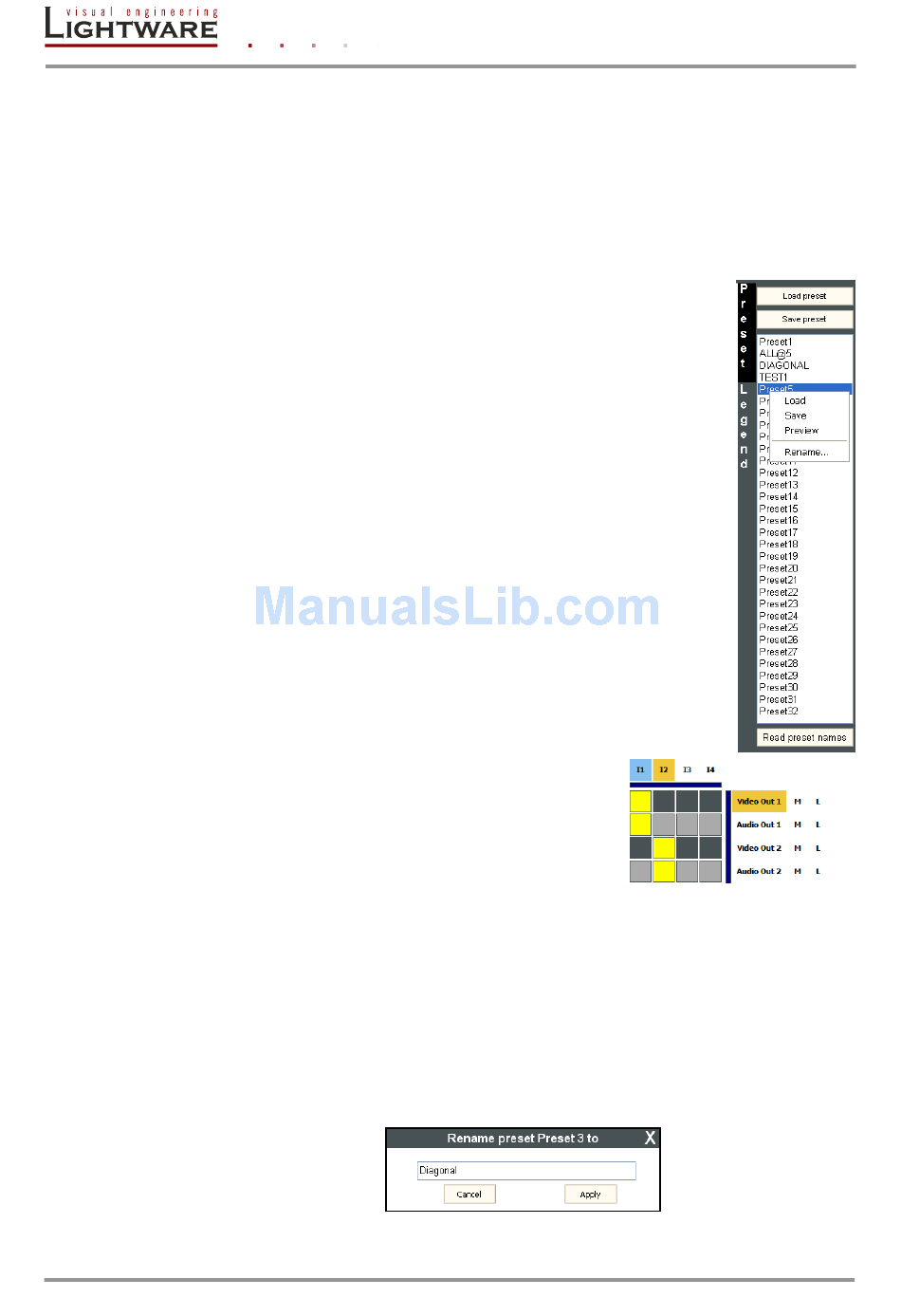

Preset operations can be done on the PRESET panel. The panel can be accessed by
clicking on the vertical 'Preset' label at the right margin of the software window. Each
Lightware matrix switcher has 32 preset memories that can be loaded and saved at any
time.
Info: A preset setting stores a full configuration of all outputs, so preset loading have an effect
on every output, except the locked ones.
Load preset
Step 1. Open the Preset panel on the right of the software window.
Step 2. Select the preset memory (Preset1...Preset32) you want to load
Step 3. Press LOAD PRESET button or right click on the desired preset,
Step 4. The new I/O configuration is displayed on the matrix switching
Save preset
Step 1. Make the desired crosspoint connections on the matrix switching
Step 2. Select the preset memory (Preset1...Preset32) where you want
Step 3. Press SAVE PRESET button or right click on the preset and click
Step 4. A confirmation message comes up. Click YES to save the current
Preview preset
Step 1. Right click on the desired preset, and click
Step 2. The preset's I/O configuration is displayed on the

5.3.6. Preset names

To help memorizing the preset configurations, names can be assigned to saved presets.
Preset names can be maximum 15 characters long, and can contain any ASCII characters
except: ( ) { }. All characters are converted to uppercase.
Rename preset
Step 1. Select the preset memory (Preset1...Preset32) you want to rename.
Step 2. Click RENAME... in the popup menu. The Rename window appears.
Step 3. Type in the desired name and click APPLY. Now the new preset name is stored.
Page 50 / 129
as the next crosspoint configuration.
and click Load in the popup menu. Now the preset is loaded.
area.
area.
to save your current crosspoint connections.
Save in the popup menu.
crosspoint connections to the selected preset memory. The
preset is stored.
Preview in the popup menu.
matrix switching area with yellow squares for two
seconds.
Section 5. Software control – Using Lightware Matrix Controller
