3.2.

UMX4x4-Pro rear view

Power
12
Fuse DVI-I in
13 2
1
Inputs
2
DVI-I in
3
Analog audio in
4
S/PDIF in
5
Outputs
DVI-D out
6
Analog audio out
7
S/PDIF out
8
Reset button
9
Ethernet port
10
RS-232 port
11
Power
12
Fuse
13
Page 18 / 129
Analog audio out
Inputs S/PDIF out
1
4 S/PDIF in
3 Analog audio in

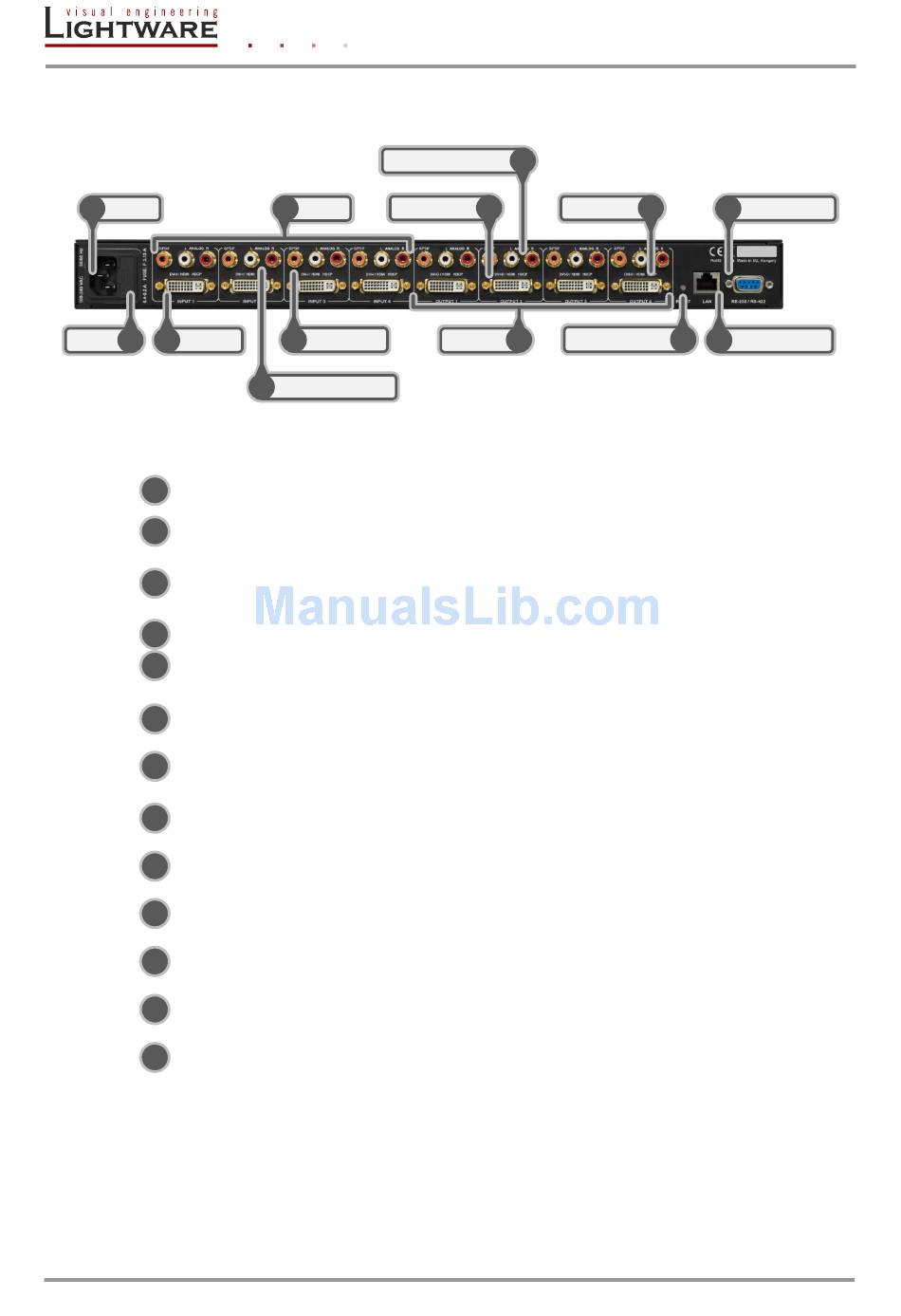

Figure 3-2. UMX4x4-Pro rear view
UMX4x4-Pro has 4 input ports. Each port has one video, one
analog stereo audio and one digital audio input.
Standard 29-pole DVI-I connectors for input connections. It
accepts analog and digital signals.
Double RCA jack connector for analog stereo audio input signal
with right and left channel.
RCA jack connector with S/PDIF digital audio signal.
UMX4x4-Pro has 4 output ports. Each port has one video, one
analog stereo audio and one digital audio output.
Standard 29-pole DVI connectors for outputs - only digital pins
are connected.
Double RCA jack connector for analog stereo audio output signal
with right and left channel.
RCA jack connector with S/PDIF digital audio signal. Embedded
audio is still present on the DVI-D outputs.
Hardware reset button. It resets the whole router, however saved
settings, presets and EDIDs will be preserved.
Standard RJ45 connector. This port can be connected to Local
Area Network.
9-pole D-sub female connector for standard RS-232 port.
Standard IEC power connector. The router works with 100 to 240
Volts, 50 or 60 Hz power sources.
Replace with F 3.15A type only.
7
8 DVI-D out
Reset button
Outputs 5
Section 3. Controls and connections
6
RS-232 Port
11
9 Ethernet port
10
