2.3.
Typical applications
Some typical connection variations with the matrix router are shown on Figure 2-1.
Application examples
Section 2. General description

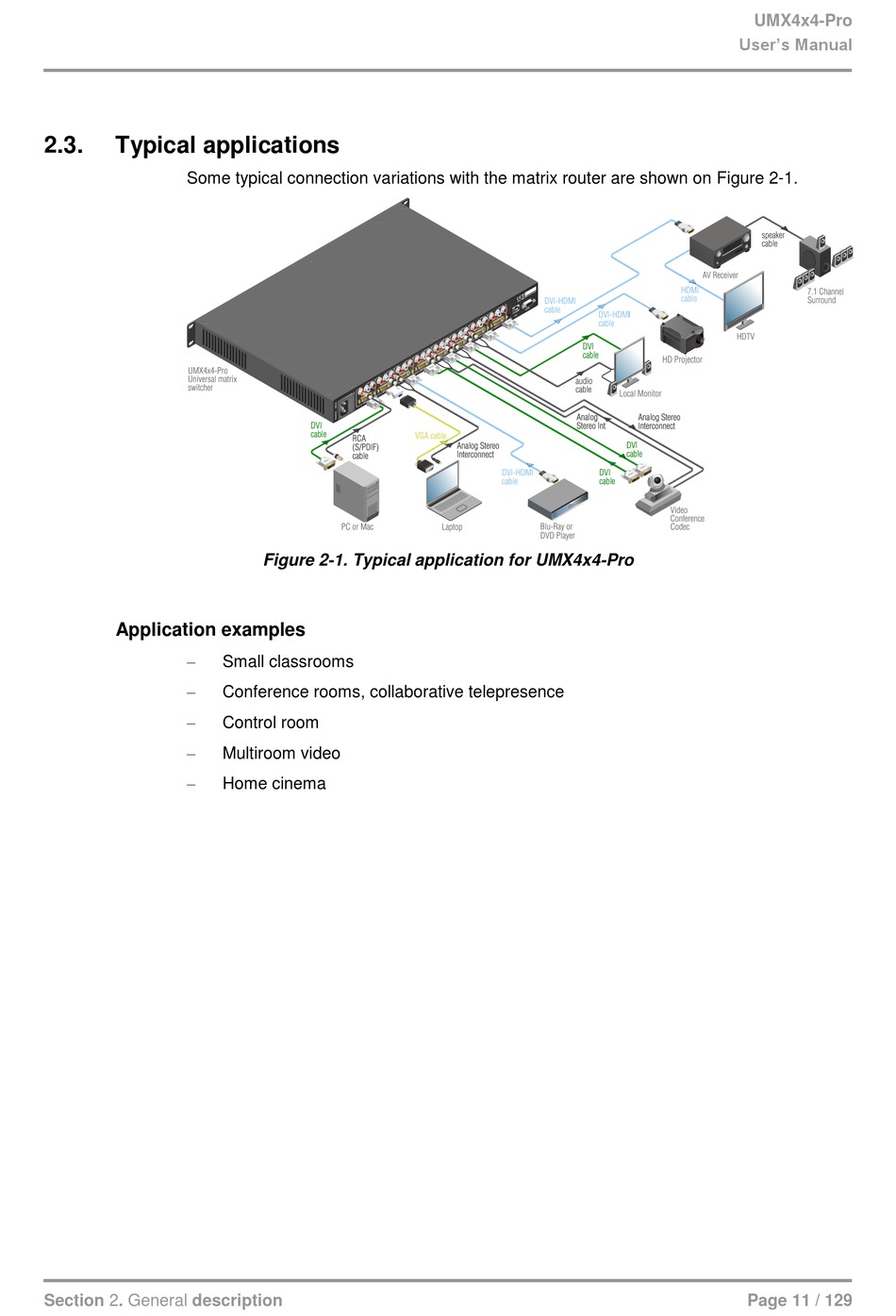

Figure 2-1. Typical application for UMX4x4-Pro
Small classrooms
Conference rooms, collaborative telepresence
Control room
Multiroom video
Home cinema
UMX4x4-Pro
User's Manual
Page 11 / 129
