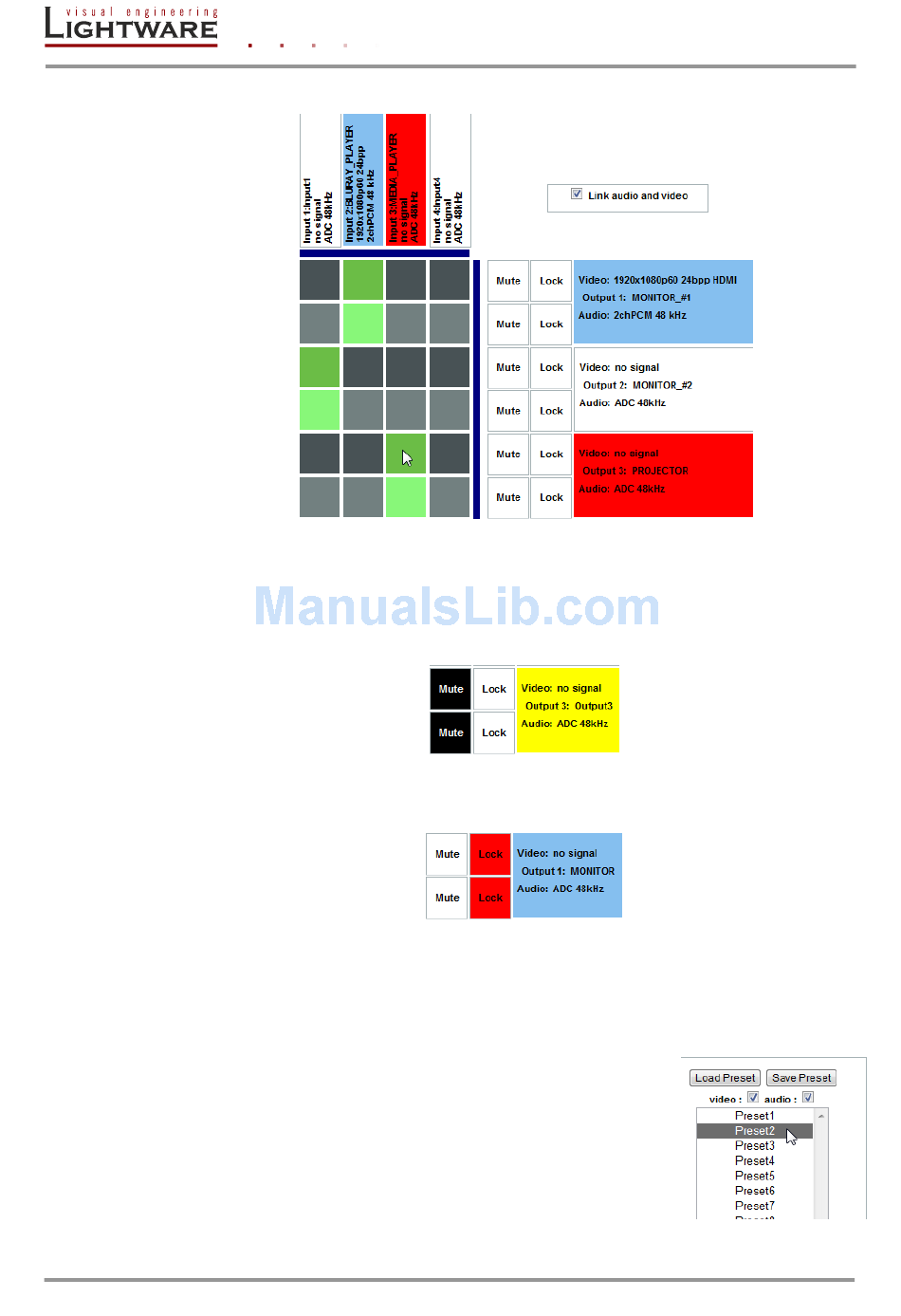

6.3.7. Switch, mute and lock

For making a connection click on the desired square. If the output port is not locked, then
the connection will be made. For example input 3 is connected to video and audio output 3
according to the picture on the right.
Outputs can be easily muted by clicking on the button titled 'M' before the output. This
means that no signal is present at this output. If mute is active, the color of the button's
background changes to black.
Outputs can be locked to any input. After locking an input to an output, no switching is
permitted to this output unless it is unlocked again. If output lock is active, the color of the
button's background changes to red.
Loading a preset doesn't alter either the lock state or the switch state of a locked output. If
Info:
an output is locked to an input before preset loading it will also be locked to that input after
preset loading, so locked outputs ignore the preset.
6.3.8.

Preset operations

Preset operations can be done on the PRESET panel. The panel
can be found on the right side of the window. Each Lightware
matrix switcher has 32 preset memories that can be loaded and
saved at any time.
Info: A preset setting stores a full configuration of all outputs, so preset
loading have an effect on every output, except the locked ones.
Load preset
Step 1. Select the preset memory (Preset1...Preset32) you want to load as the next
Page 68 / 129
crosspoint configuration.
