6.8.

Terminal

This general-purpose web terminal is intended mainly for test and debugs purposes. After
a successful connection is established with a router this terminal can be used. All
commands can be used here that are discussed in programmers reference, chapter 7, on
page 80. The text can be typed directly into the textbox.
By default commands are automatically surrounded by framing brackets. Every sent
command and every received response gets an arrow (-> or <-) prefix, and has different
font colors in order to help distinguishing.
If the "Command framing" checkbox is unchecked, you can send multiple commands
together, however in this case you have to type in the framing brackets manually.
If the Autoscroll checkbox is unchecked user should use the scroll bar to see the last
commands.
Section 6. Web control – Using built-in website

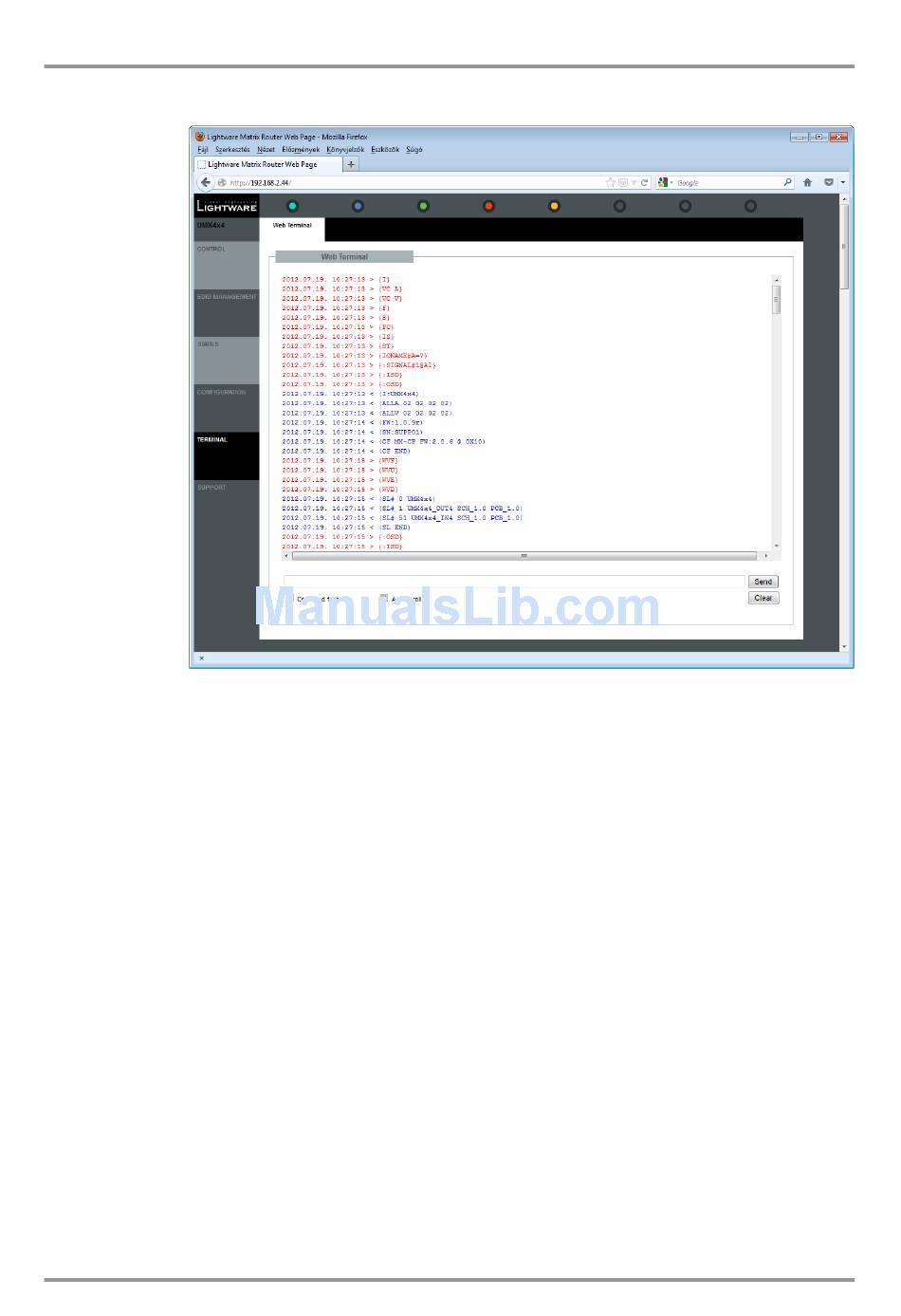

Figure 6-9. Web terminal window
