3. Product Overview

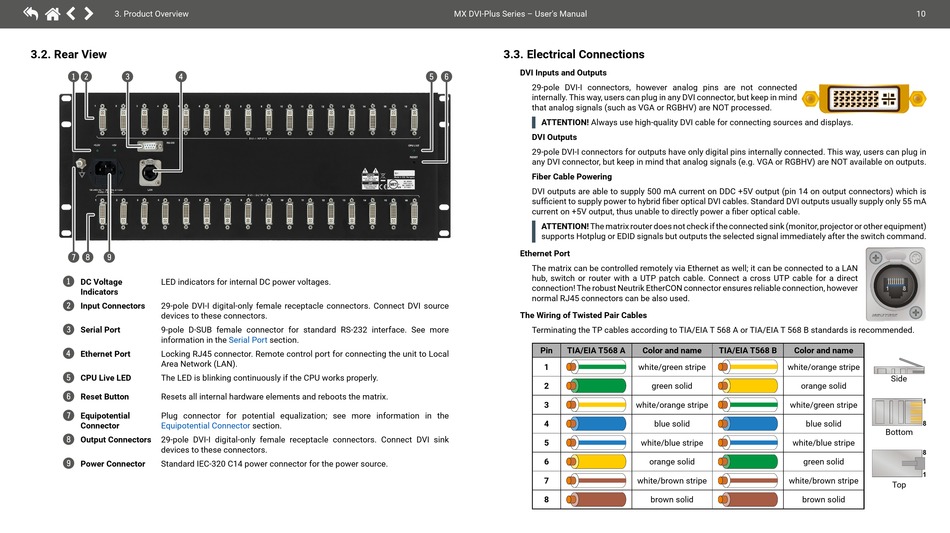

3.2. Rear View
12 3 4
7 8 9
1 DC Voltage LED indicators for internal DC power voltages.
Indicators
2 Input Connectors 29-pole DVI-I digital-only female receptacle connectors. Connect DVI source
devices to these connectors.
3 Serial Port 9-pole D-SUB female connector for standard RS-232 interface. See more
information in the
4 Ethernet Port Locking RJ45 connector. Remote control port for connecting the unit to Local
Area Network (LAN).
5 CPU Live LED The LED is blinking continuously if the CPU works properly.
6 Reset Button Resets all internal hardware elements and reboots the matrix.
7 Equipotential Plug connector for potential equalization; see more information in the
Connector Equipotential Connector
8 Output Connectors 29-pole DVI-I digital-only female receptacle connectors. Connect DVI sink
devices to these connectors.
9 Power Connector Standard IEC-320 C14 power connector for the power source.
Serial Port section.
section.
MX DVI-Plus Series – User's Manual
3.3. Electrical Connections
DVI Inputs and Outputs
5 6
29-pole DVI-I connectors, however analog pins are not connected
internally. This way, users can plug in any DVI connector, but keep in mind
that analog signals (such as VGA or RGBHV) are NOT processed.
ATTENTION! Always use high-quality DVI cable for connecting sources and displays.
DVI Outputs
29-pole DVI-I connectors for outputs have only digital pins internally connected. This way, users can plug in
any DVI connector, but keep in mind that analog signals (e.g. VGA or RGBHV) are NOT available on outputs.
Fiber Cable Powering
DVI outputs are able to supply 500 mA current on DDC +5V output (pin 14 on output connectors) which is
sufficient to supply power to hybrid fiber optical DVI cables. Standard DVI outputs usually supply only 55 mA
current on +5V output, thus unable to directly power a fiber optical cable.
ATTENTION! The matrix router does not check if the connected sink (monitor, projector or other equipment)
supports Hotplug or EDID signals but outputs the selected signal immediately after the switch command.
Ethernet Port
The matrix can be controlled remotely via Ethernet as well; it can be connected to a LAN
hub, switch or router with a UTP patch cable. Connect a cross UTP cable for a direct
connection! The robust Neutrik EtherCON connector ensures reliable connection, however
normal RJ45 connectors can be also used.
The Wiring of Twisted Pair Cables
Terminating the TP cables according to TIA/EIA T 568 A or TIA/EIA T 568 B standards is recommended.
Pin TIA/EIA T568 A
1
2
3
4
5
6
7
8
Color and name TIA/EIA T568 B Color and name
white/green stripe white/orange stripe
green solid orange solid
white/orange stripe white/green stripe
blue solid blue solid
white/blue stripe white/blue stripe
orange solid green solid
white/brown stripe white/brown stripe
brown solid brown solid
10
1 8
Side
Bottom
Top
