Chapter 2
Key:
U1
- CPU
U2
- DDR2 SDRAM - System Memory
U3
- DDR2 SDRAM - System Memory
U5
- RS232 Transceiver - COM4
U6
- SPI Flash - Data Storage
U7
- RS232 Transceiver - COM1 and COM2
U12 - 10/100 Ethernet Transformer
U13 - PCI Graphics Controller
U14 - DDR2 SDRAM - Video Memory
NOTE
Pin 1 is shown as a black pin (square or round) on vertical headers or connectors
in all illustrations. Black dots on right-angle headers or connectors indicate pin
2.
CoreModule 430
U6
U14
U13
U2
U3

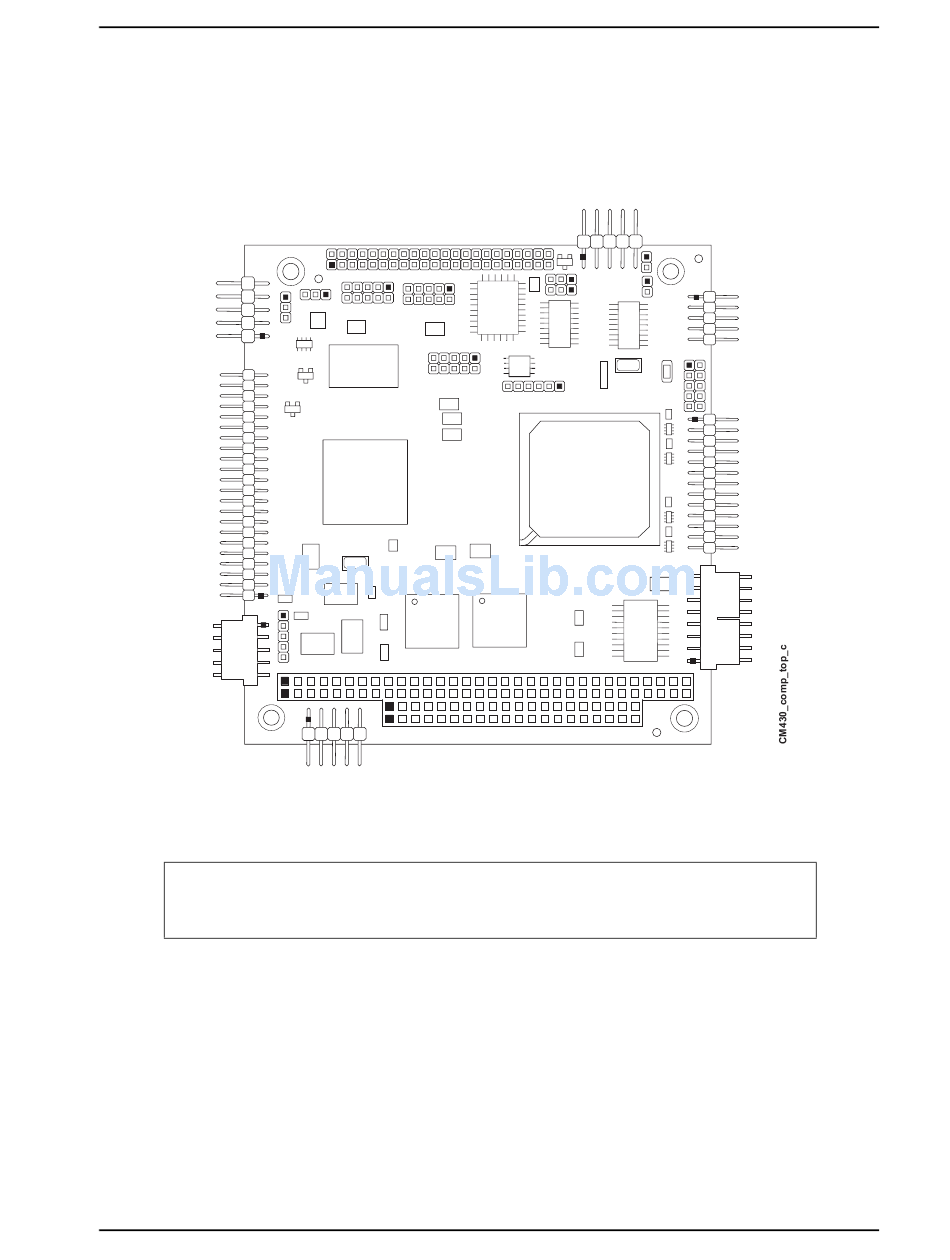

Figure 2-3. Component Locations (Top Side)

Reference Manual
U5
U7
U1
U12
Product Overview
9
