APRILIA CAPONORD 1200 Service Station Manual page 41

CAPONORD 1200

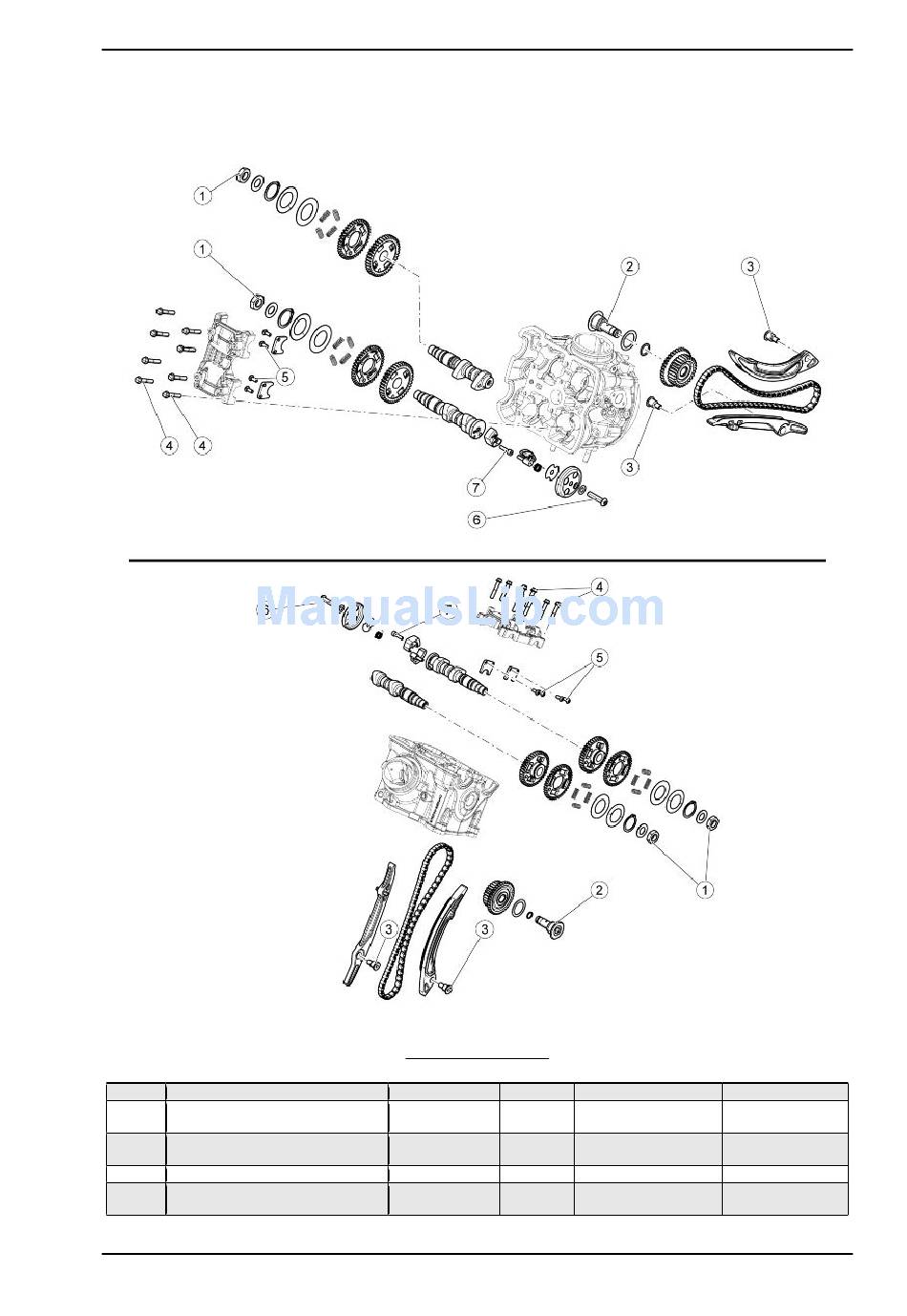

pos. Description
1 Camshaft gear fastener nut
2 Timing drive gear fastener screw
3 Special screw for fastening mobile /
fixed shoes
4 Cam tower / head fastener screws
5 Camshaft retainer plate fastener
screw
TIMING SYSTEM
Type Quantity
M15x1 4
M24x1.5 2
M8 4
M6 16
torx M5 8
Characteristics
Torque
90 Nm (66.38 lbf ft)
40 Nm (29.50 lbf ft) 3M SCOTCH GRIP
19 Nm (14.01 lbf ft) 3M SCOTCH GRIP
12 Nm (8.85 lbf ft)
8.5 Nm (6.26 lbf ft) 3M SCOTCH GRIP
Notes
-
2353
2353
-
2353
CHAR - 41
