CAPONORD 1200
Function
To supply the correct amount of petrol at the right timing.
Operation / Operating principle
Injector coil is excited for the petrol passage to open.
The external injectors (Synerject) are always working, whereas the internal ones (Marelli, aka "high-
pressure" injectors) are opened only when high power is required.
Level in electrical circuit diagram:
Coils and injectors

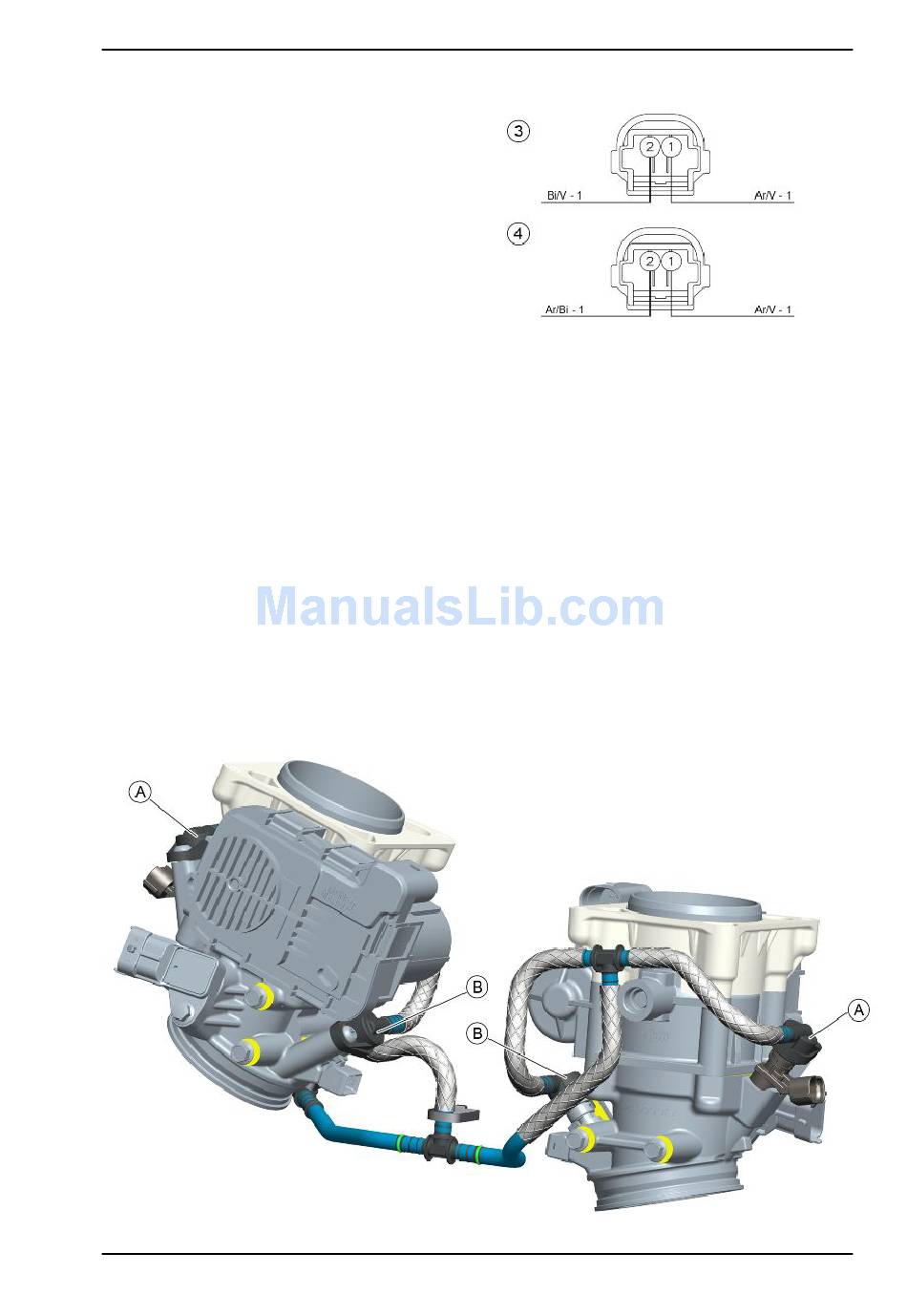

Location:
A. External injectors (Synerject)
B. Internal injectors (Marelli)
•
on the vehicle: intake manifold
•
connector: on injectors
Electrical system
