Electrical system
•
The VCU memory was deleted following an unforeseen lack of supply; all stored data have
been lost, such as the travel limits of the exhaust valve, of the shock absorber preload, or
the idle position of the rotary potentiometer.
Troubleshooting
•
Rest the VCU using the diagnosis instrument.

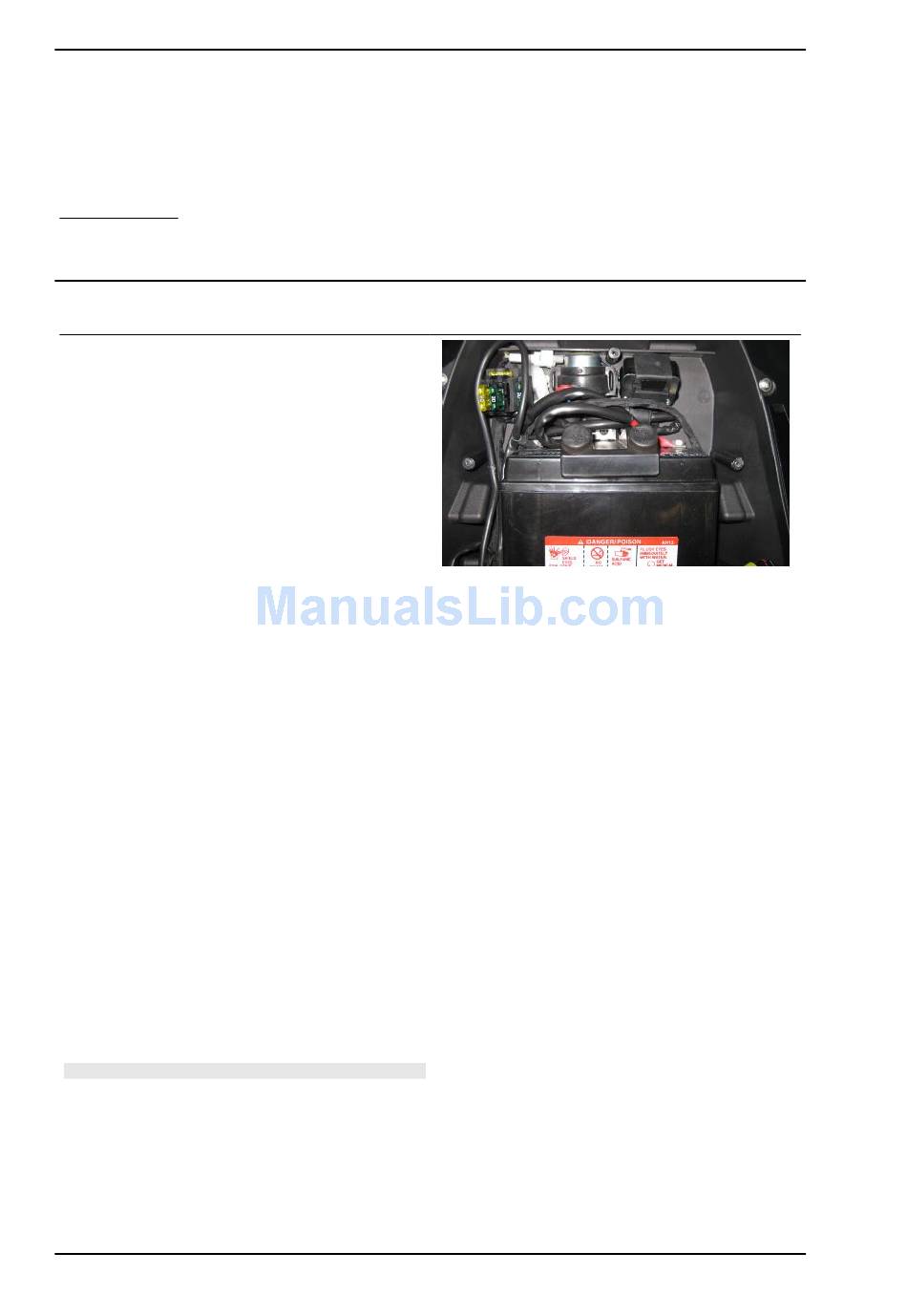

Battery
Function
Battery YTX 14-BS, which must be activated and
loaded.
Level in electrical circuit diagram:
Battery recharge
Location:
•
on the vehicle: under the saddle
•
connector: on the battery
Electrical specifications: 12 Ah
Pin out:
1. Positive pole (red): approx. 12.6 V
2. negative pole (black): ground connection
DIAGNOSTICS INSTRUMENT:PARAMETERS
Battery voltage
•
Example value with key ON: 12.0 V
•
Example value with engine on: 14.2 V
In case of recovery, this value is set by the control
unit
Battery voltage pre Recovery
•
Example value with key ON: 12.0 V
•
Example value with engine on: 14.2 V
Value drawn from the signal read without taking
into account any recovery
CAUTION
BEFORE CARRYING OUT ANY TROUBLESHOOTING,
CAREFULLY READ THE GENERAL TROUBLESHOOTING
CONCEPTS FOR ELECTRICAL DEVICES AT THE BEGIN-
NING OF THE CHECK AND CONTROL SECTION IN THE
ELECTRICAL SYSTEM CHAPTER.
DIAGNOSTICS INSTRUMENT: LOGIC ERRORS
Battery voltage P0560
