APRILIA CAPONORD 1200 Service Station Manual page 108

Electrical system

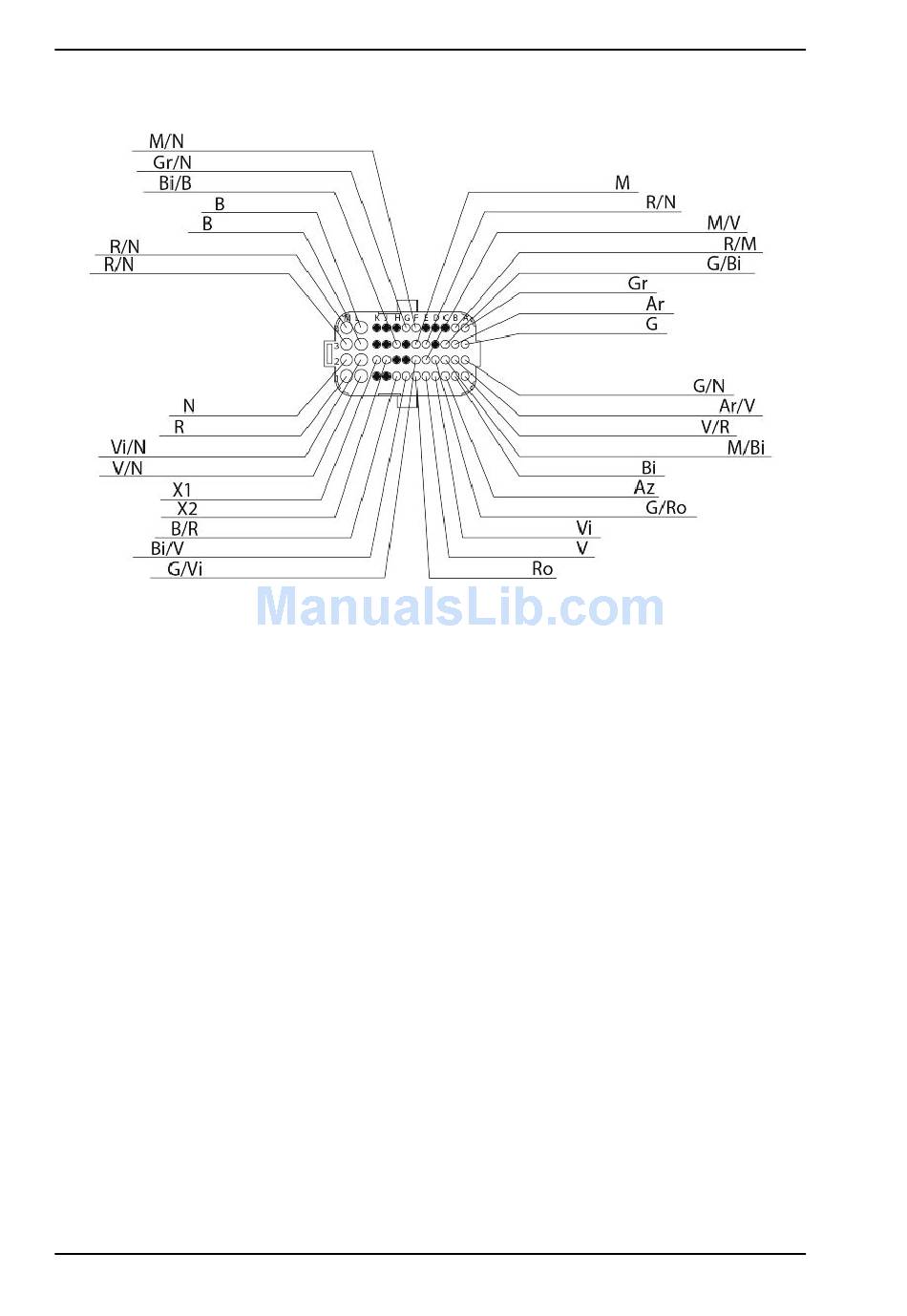

DIAGNOSTICS INSTRUMENT:PARAMETERS
•
Battery voltage (V)
•
Tension potentiometer at the exhaust butterfly valve (mV)
•
Rotary sensor trace 1 (mV)
•
Rotary sensor trace 2 (mV)
•
Pressure sensor (mBar)
•
Temperature sensor (°C)
•
Current front valve (mA)
•
Current rear valve (mA)
•
Number operations preload motor
•
Exhaust butterfly valve target position (%)
•
Exhaust butterfly valve upper travel limit
•
Exhaust butterfly valve lower travel limit
•
Maximum travel preload in impulses
DIAGNOSTICS INSTRUMENT:STATUSES
Suspensions map
•
Indeterminate / 1 / ... / 8
Preload level
•
Indeterminate / 1 / ... / 5
Preload motor
ELE SYS - 108
CAPONORD 1200
