Electrical Installation
5.1.18 Control terminals
Drawing reference numbers:
1. 10-pole plug digital I/O.
2. 3-pole plug RS-485 Bus.
3. 6-pole analog I/O.
4. USB connection.

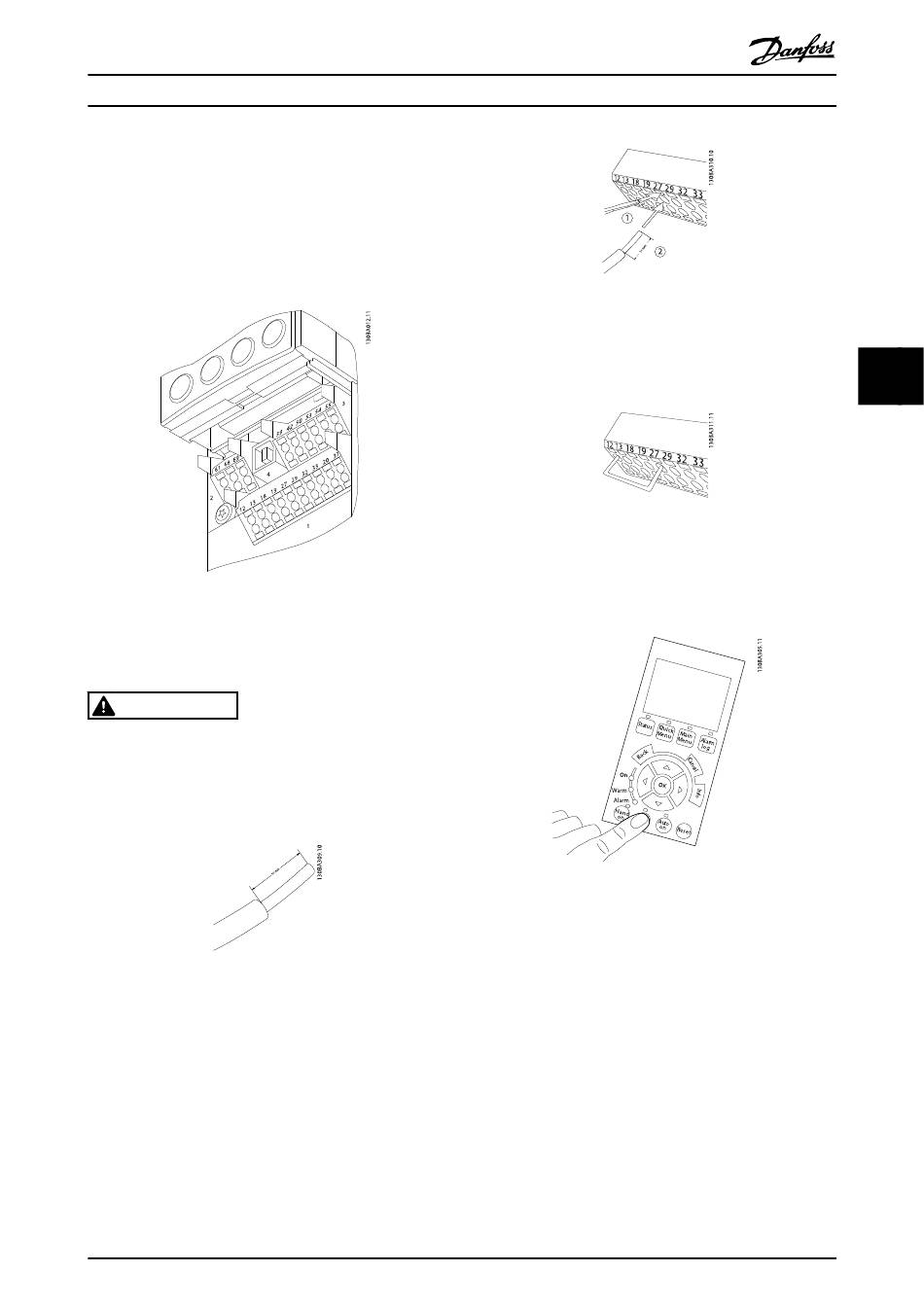

Illustration 5.19 Control terminals (all enclosures)
5.1.19 How to Test Motor and Direction of
Rotation
WARNING
Unintended motor start can occur, ensure no personnel or
equipment is in danger!
Please follow these steps to test the motor connection and
direction of rotation. Start with no power to the unit.
Illustration 5.20
Step 1: First remove the insulation on both ends of a 50 to 70
mm piece of wire.
®
ADAP-KOOL Drive Operating Instructions
Illustration 5.21
Step 2: Insert one end in terminal 27 using a suitable terminal
screwdriver. (Note: For units with Safe Stop function, the existing
jumper between terminal 12 and 37 should not be removed for
the unit to be able to run!)
Illustration 5.22
Step 3: Insert the other end in terminal 12 or 13. (Note: For
units with Safe Stop function, the existing jumper between
terminal 12 and 37 should not be removed for the unit to be
able to run!)
Illustration 5.23
Step 4: Power-up the unit and press the [Off] button. In this
state the motor should not rotate. Press [Off] to stop the motor
at any time. Note the LED at the [OFF] button should be lit. If
alarms or warnings are flashing, please see chapter 7 regarding
these.
®
MG.11.L4.02 - ADAP-KOOL Drive
5 5
