3�2�- INSTALLATION
On the side of the unit are all of the indications adjusted to the CEI 62052-11 standard.
The unit is installed on a DIN rail. All connections are located inside the electric panel.
3�3�- UNIT TERMINALS
8
Terminals, opening covers or removing elements can expose parts that are hazardous
to the touch while the unit is powered. Do not use the unit until it is fully installed.
1 : L, Input, connected to the mains phase
3: LOAD, Output
4: N, Input, connected to neutral
Table 2:List of CEM-C10 terminals�
Unit terminals
6: LOAD, Output
21: impulse output (Collector)
22: Impulse output (Emitter)

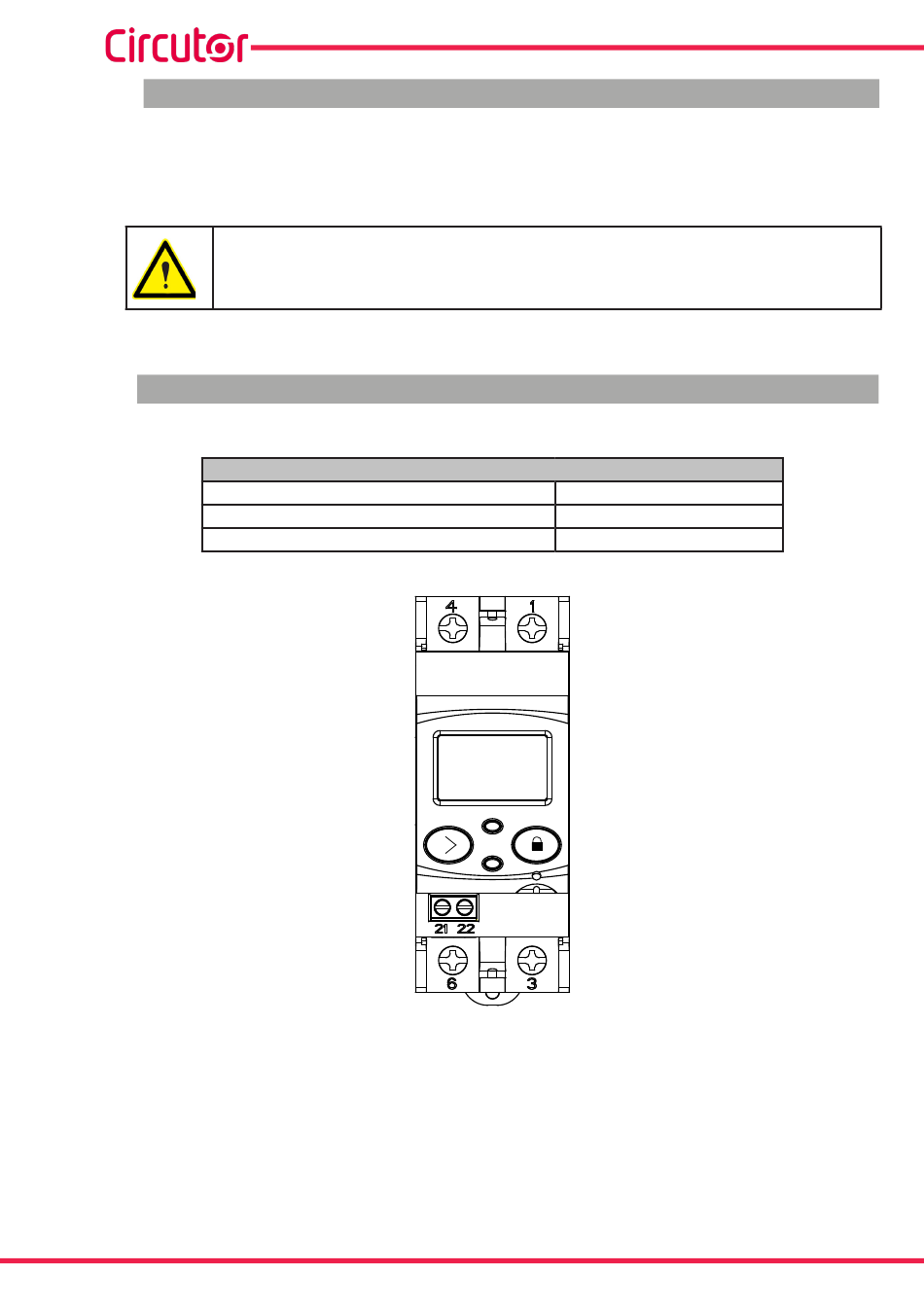

Figure 1:Terminals of the CEM-C10�
