Universal Robots UR5 Service Manual page 71



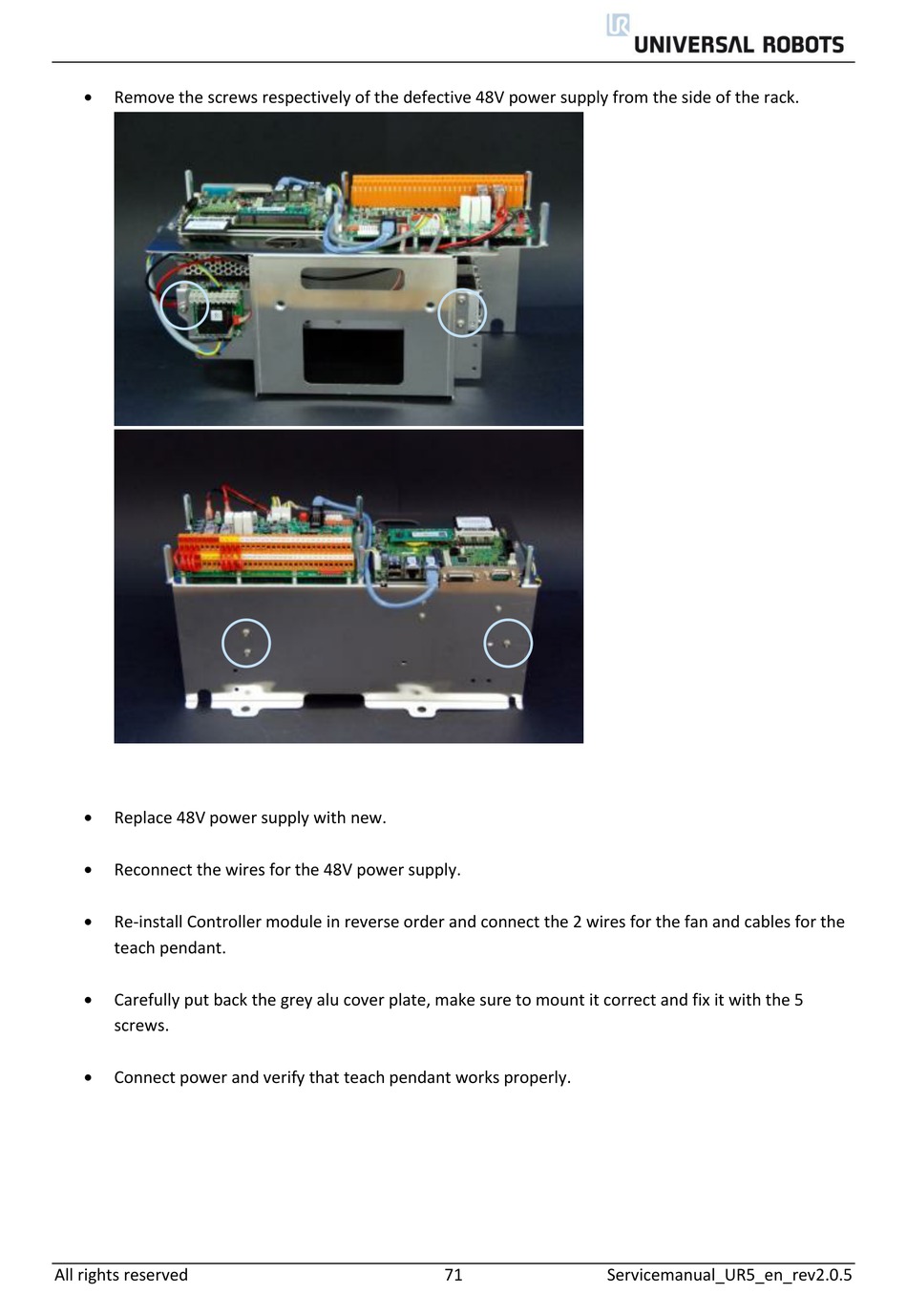

Remove the screws respectively of the defective 48V power supply from the side of the rack.

Replace 48V power supply with new.

Reconnect the wires for the 48V power supply.

Re-install Controller module in reverse order and connect the 2 wires for the fan and cables for the
teach pendant.

Carefully put back the grey alu cover plate, make sure to mount it correct and fix it with the 5
screws.

Connect power and verify that teach pendant works properly.
All rights reserved 71 Servicemanual_UR5_en_rev2.0.5
