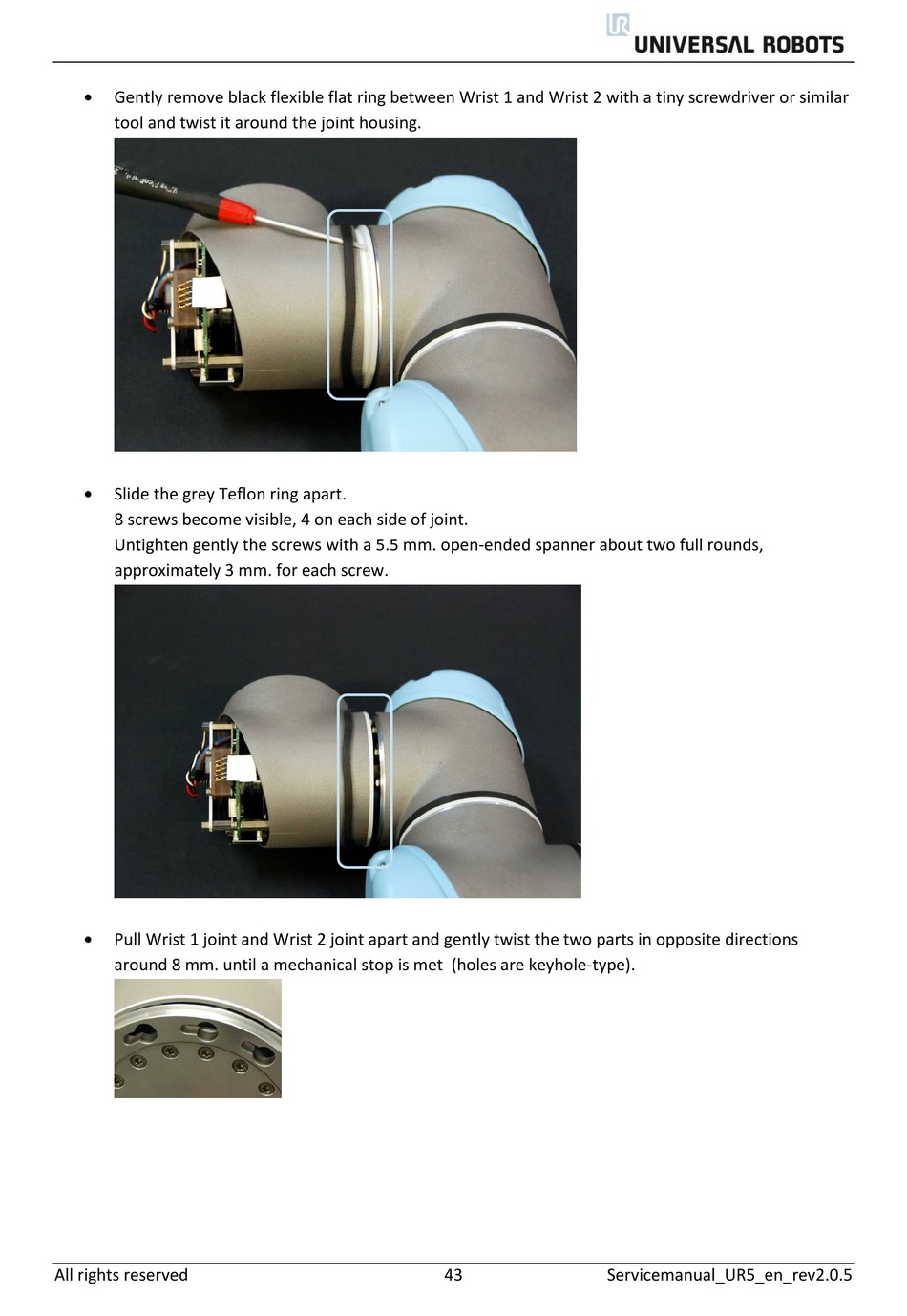

Gently remove black flexible flat ring between Wrist 1 and Wrist 2 with a tiny screwdriver or similar

tool and twist it around the joint housing.



Slide the grey Teflon ring apart.

8 screws become visible, 4 on each side of joint.

Untighten gently the screws with a 5.5 mm. open-ended spanner about two full rounds,

approximately 3 mm. for each screw.



Pull Wrist 1 joint and Wrist 2 joint apart and gently twist the two parts in opposite directions

around 8 mm. until a mechanical stop is met (holes are keyhole-type).
