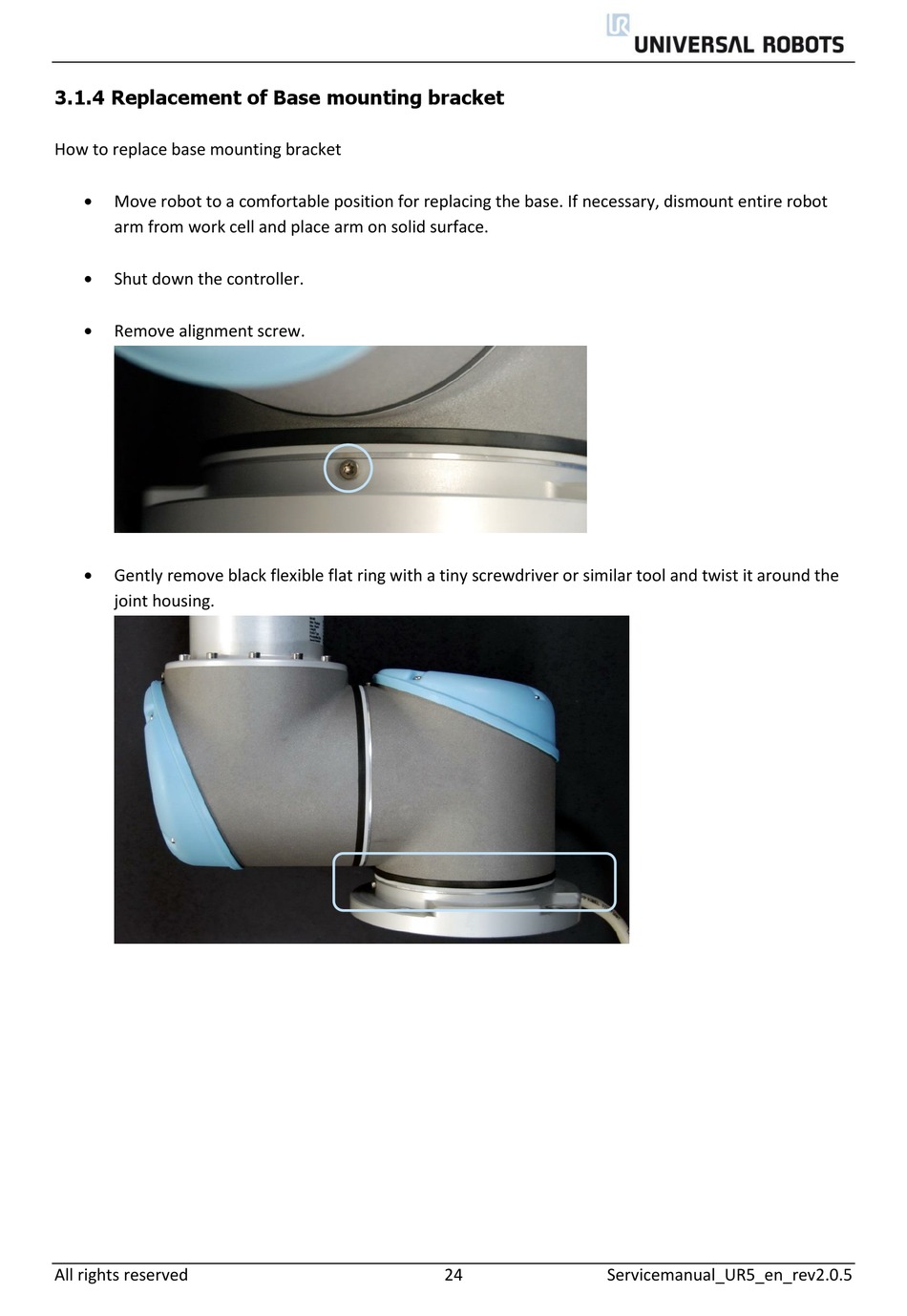

3.1.4 Replacement of Base mounting bracket
How to replace base mounting bracket
Move robot to a comfortable position for replacing the base. If necessary, dismount entire robot
arm from work cell and place arm on solid surface.
Shut down the controller.
Remove alignment screw.
Gently remove black flexible flat ring with a tiny screwdriver or similar tool and twist it around the
joint housing.
All rights reserved
24
Servicemanual_UR5_en_rev2.0.5
