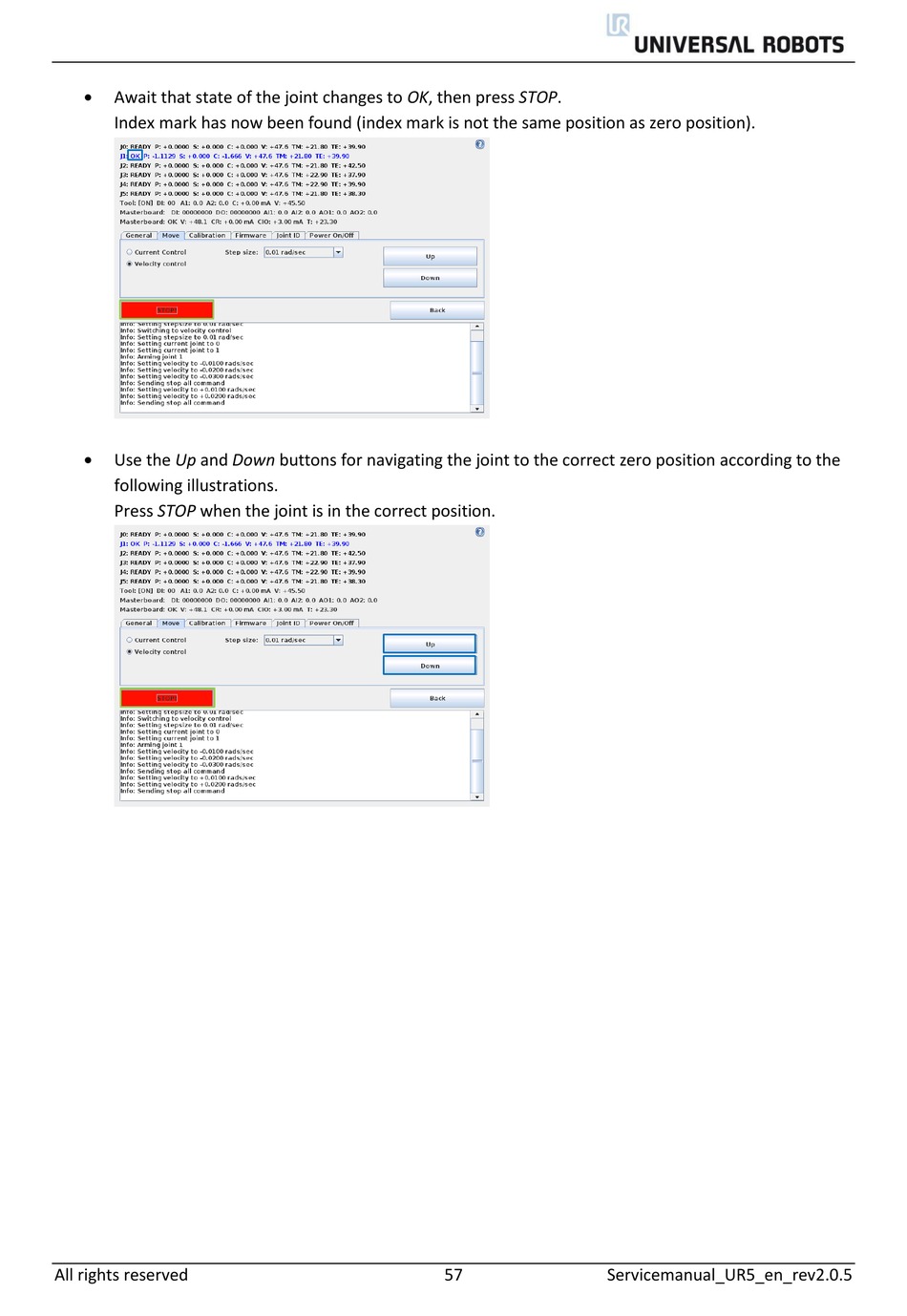

Await that state of the joint changes to OK, then press STOP.
Index mark has now been found (index mark is not the same position as zero position).
Use the Up and Down buttons for navigating the joint to the correct zero position according to the
following illustrations.
Press STOP when the joint is in the correct position.
All rights reserved
57
Servicemanual_UR5_en_rev2.0.5
