3.3.1.3 How to tell the difference between a CB2 and CB3 sparePart joint
It is very important to select the correct revision for each joint but also, if not more important, correct revision
for CB2 joints and CB3 sparePart.

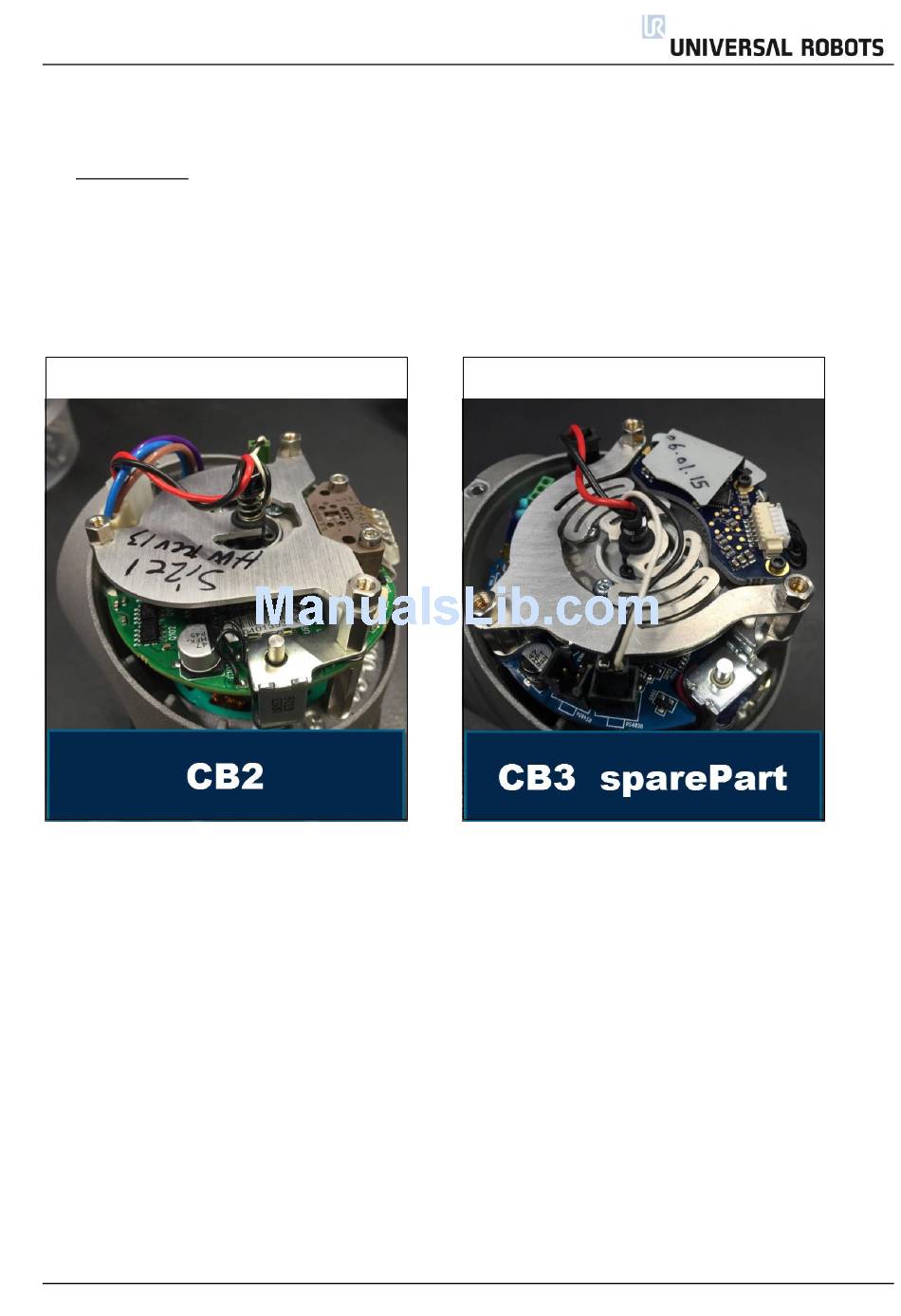

Below two photos shows the difference.
CB2 has green coloured PCB
CB3 sparePart has blue coloured PCB
All rights reserved
15
Service Manual Revision UR5_en_2.0.5
