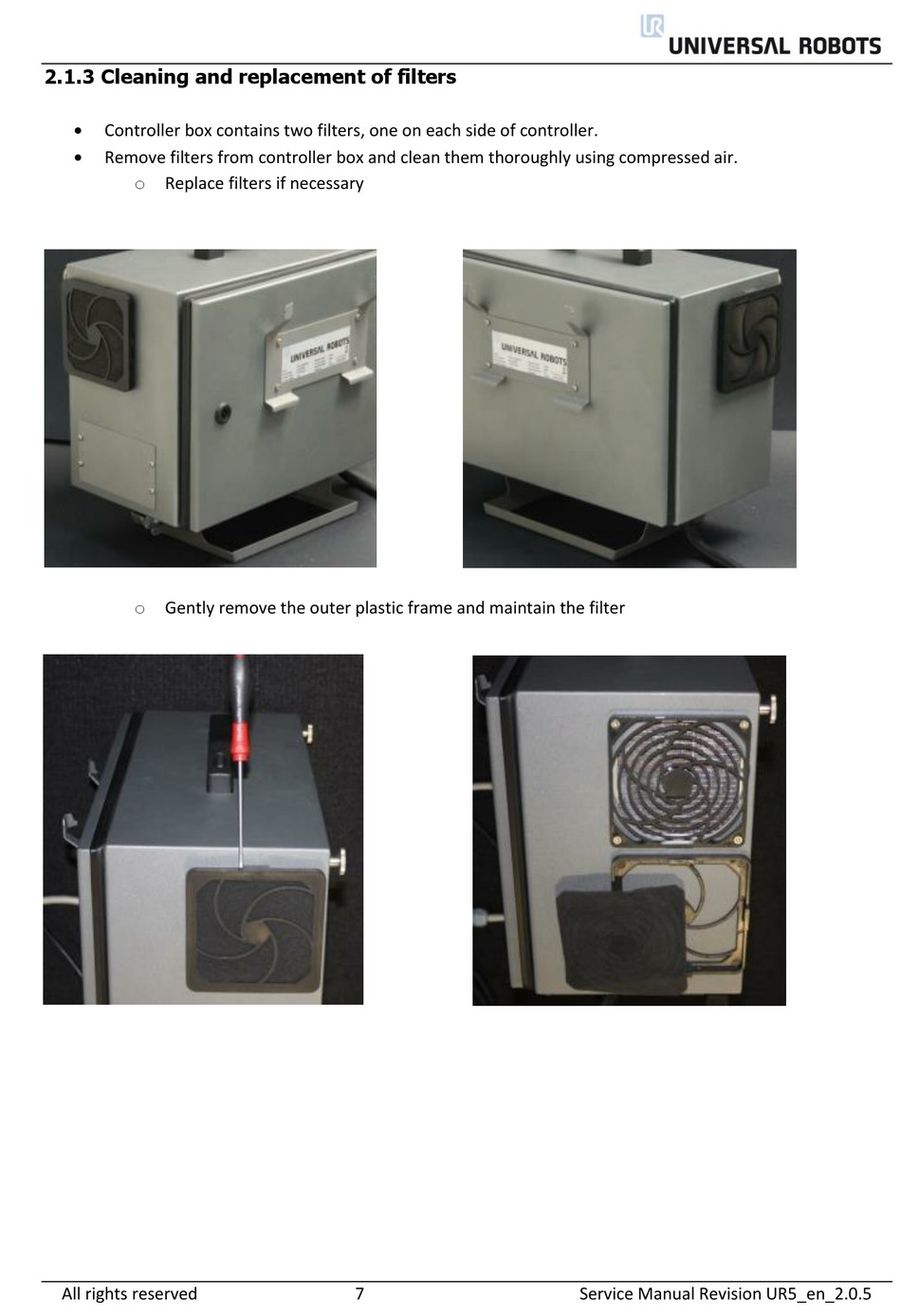

2.1.3 Cleaning and replacement of filters
Controller box contains two filters, one on each side of controller.
Remove filters from controller box and clean them thoroughly using compressed air.
o Replace filters if necessary
o Gently remove the outer plastic frame and maintain the filter
All rights reserved
7
Service Manual Revision UR5_en_2.0.5
