Tool Connector - Universal Robots UR5 Service Manual

With cb2-controller valid from robot s/n 2012208573/4
Hide thumbs Also See for UR5:
Table of Contents

Advertisement

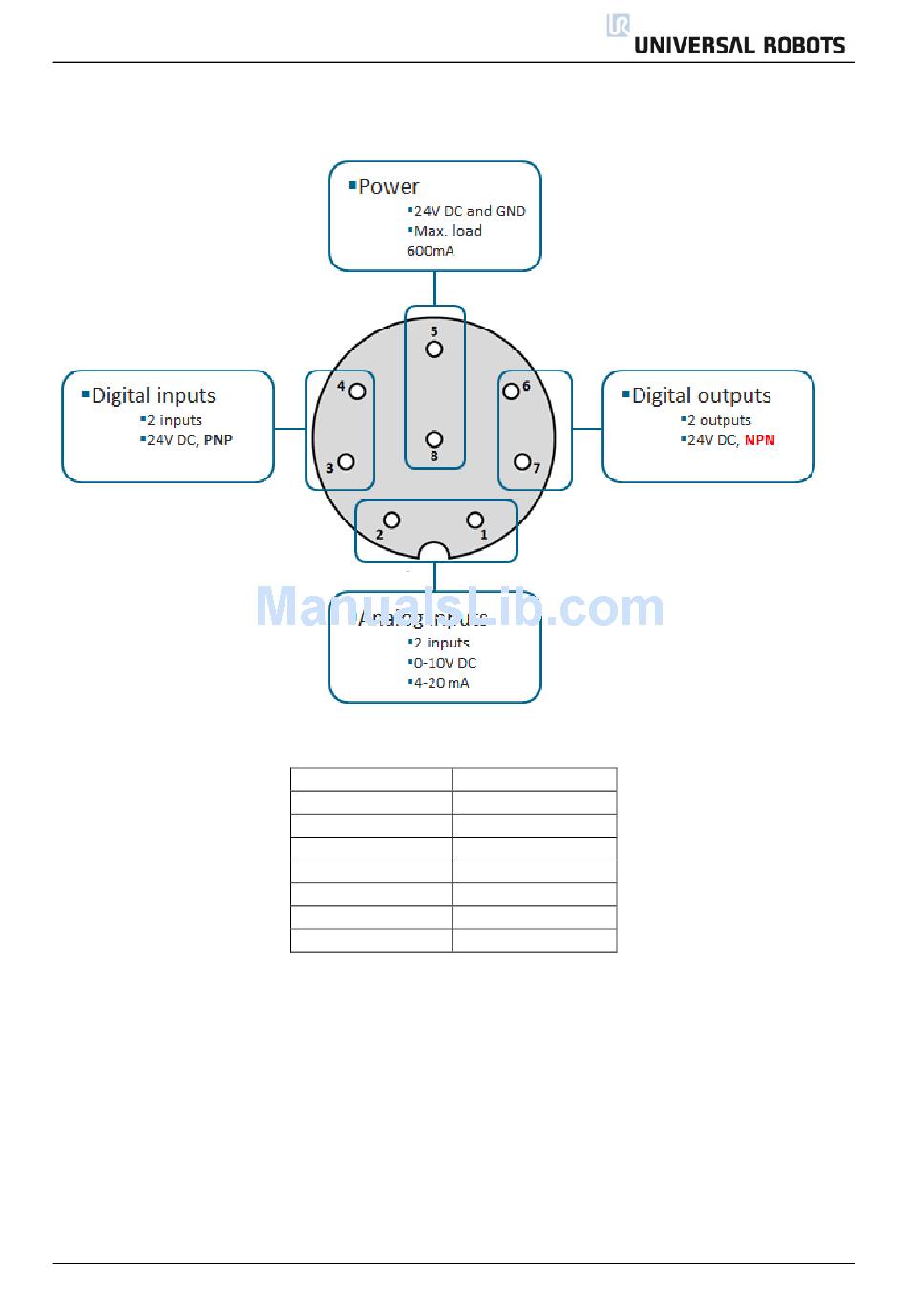

5.4.1 Tool connector

Note: Supply current in both modes 12V and 24V is maximum 600 mA
All rights reserved
Tool connector
Pin 1
AI[2]
Pin 2
AI[3]
Pin 3
DI[0]
Pin 4
DI[1]
Pin 5
12V/24V DC
Pin 6
DO[0]
Pin 7
DO[1]
Pin 8
GND
97
Servicemanual_UR5_en_rev2.0.5
