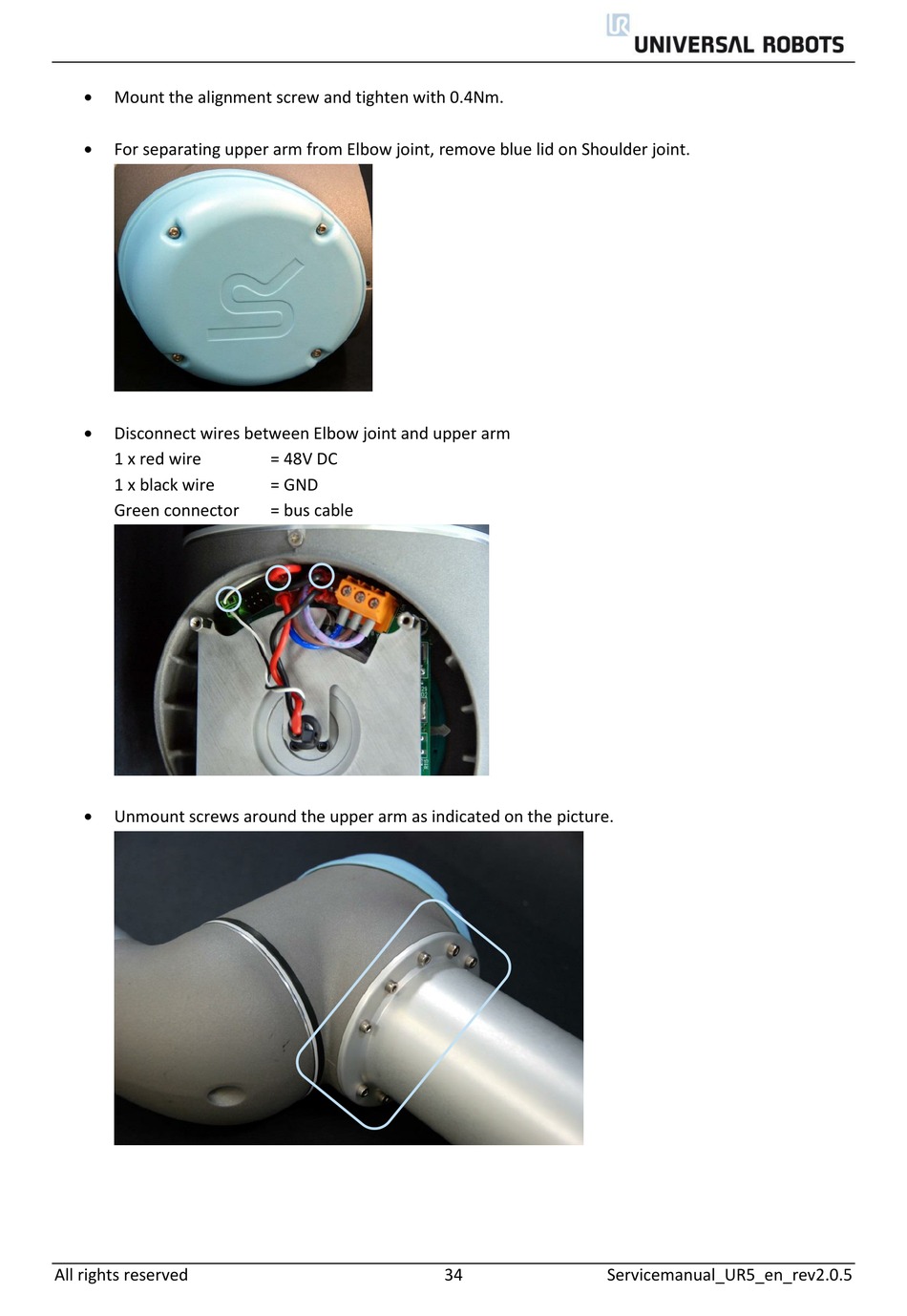

Mount the alignment screw and tighten with 0.4Nm.
For separating upper arm from Elbow joint, remove blue lid on Shoulder joint.
Disconnect wires between Elbow joint and upper arm
1 x red wire
1 x black wire
Green connector
Unmount screws around the upper arm as indicated on the picture.
All rights reserved
= 48V DC
= GND
= bus cable
34
Servicemanual_UR5_en_rev2.0.5
