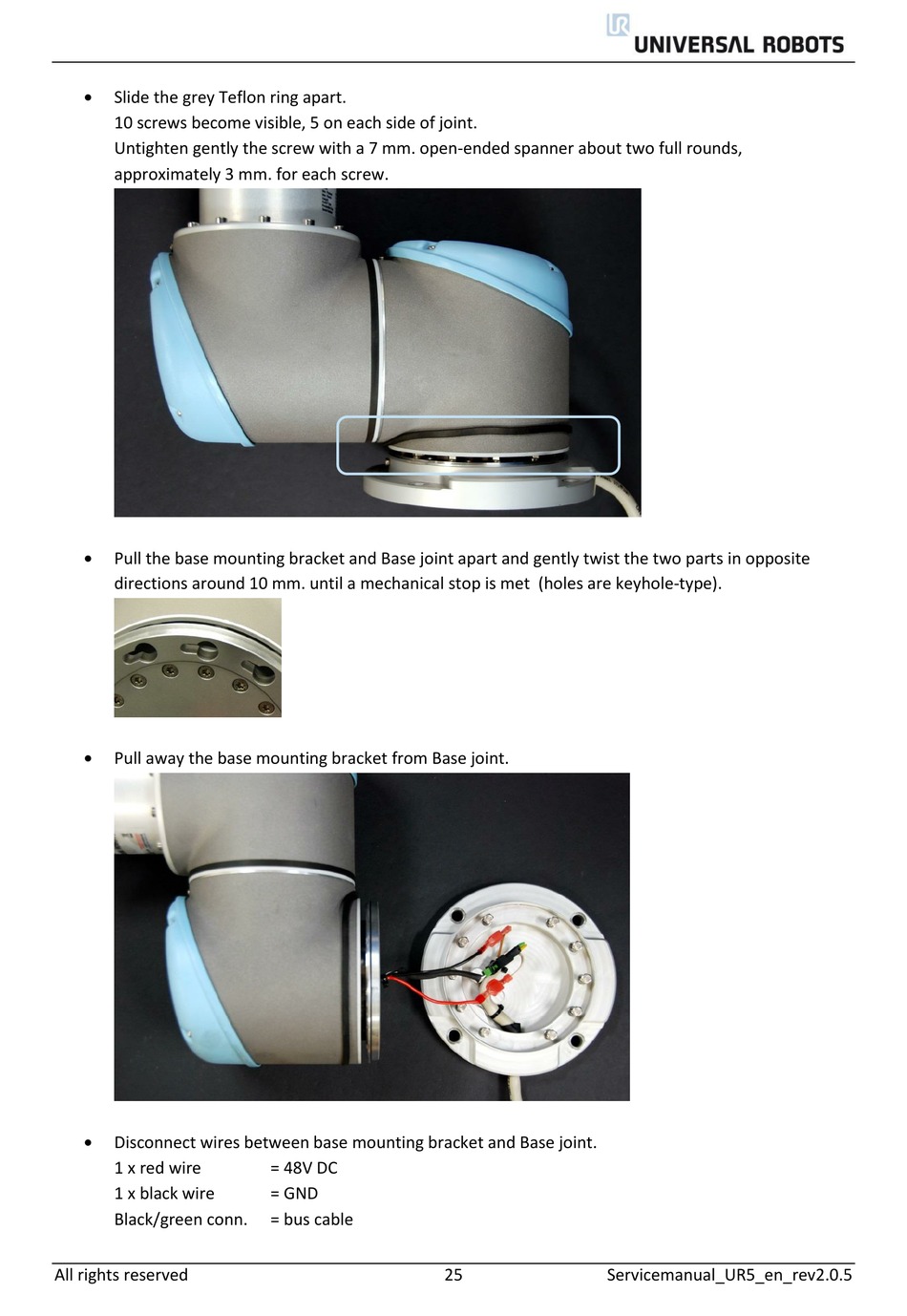

Slide the grey Teflon ring apart.
10 screws become visible, 5 on each side of joint.
Untighten gently the screw with a 7 mm. open-ended spanner about two full rounds,
approximately 3 mm. for each screw.

Pull the base mounting bracket and Base joint apart and gently twist the two parts in opposite
directions around 10 mm. until a mechanical stop is met (holes are keyhole-type).

Pull away the base mounting bracket from Base joint.

Disconnect wires between base mounting bracket and Base joint.
1 x red wire
1 x black wire
Black/green conn.
All rights reserved
= 48V DC
= GND
= bus cable
