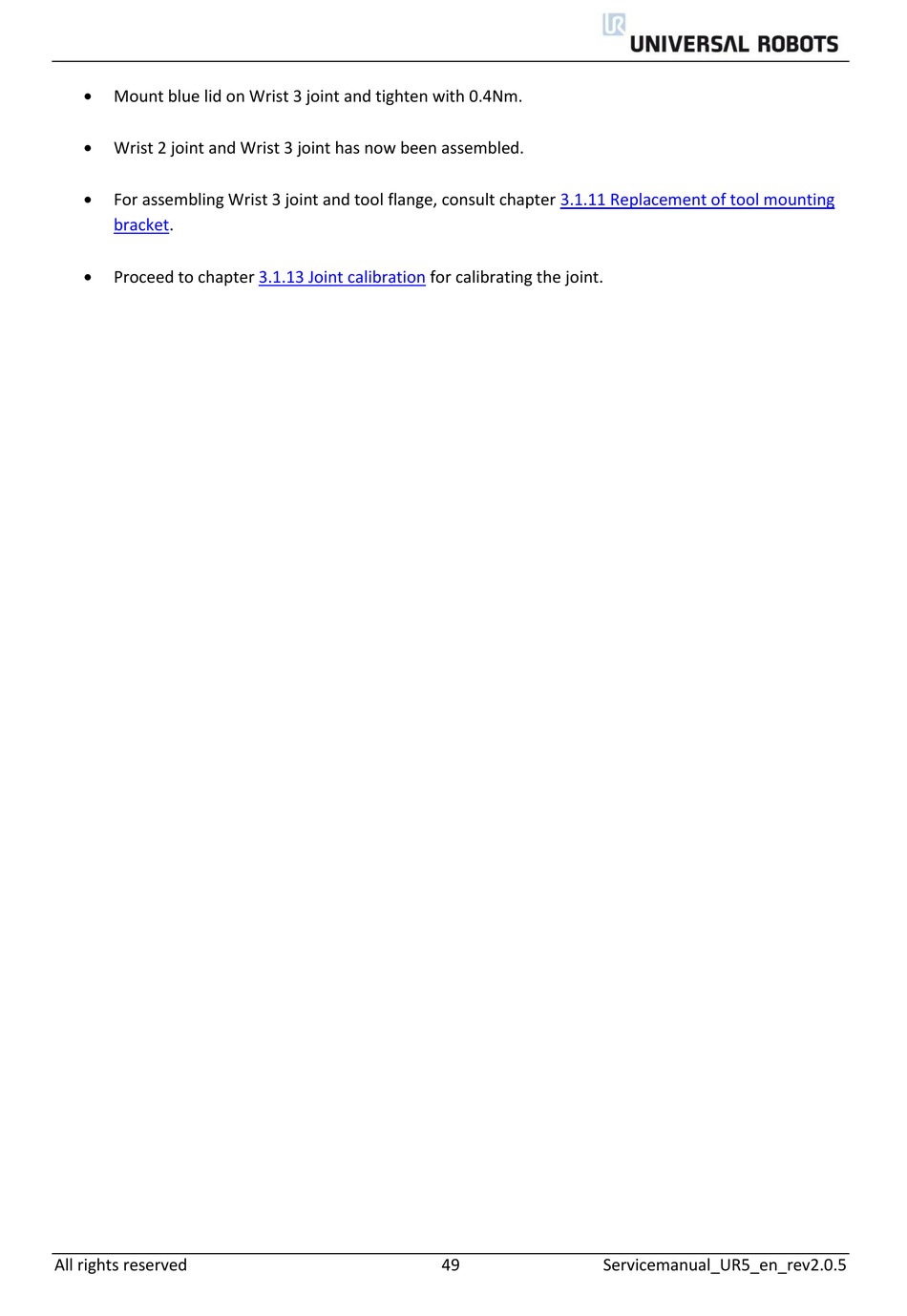

Mount blue lid on Wrist 3 joint and tighten with 0.4Nm.
Wrist 2 joint and Wrist 3 joint has now been assembled.
For assembling Wrist 3 joint and tool flange, consult chapter
bracket.
Proceed to chapter
All rights reserved
3.1.13 Joint calibration
3.1.11 Replacement of tool mounting
for calibrating the joint.
49
Servicemanual_UR5_en_rev2.0.5
