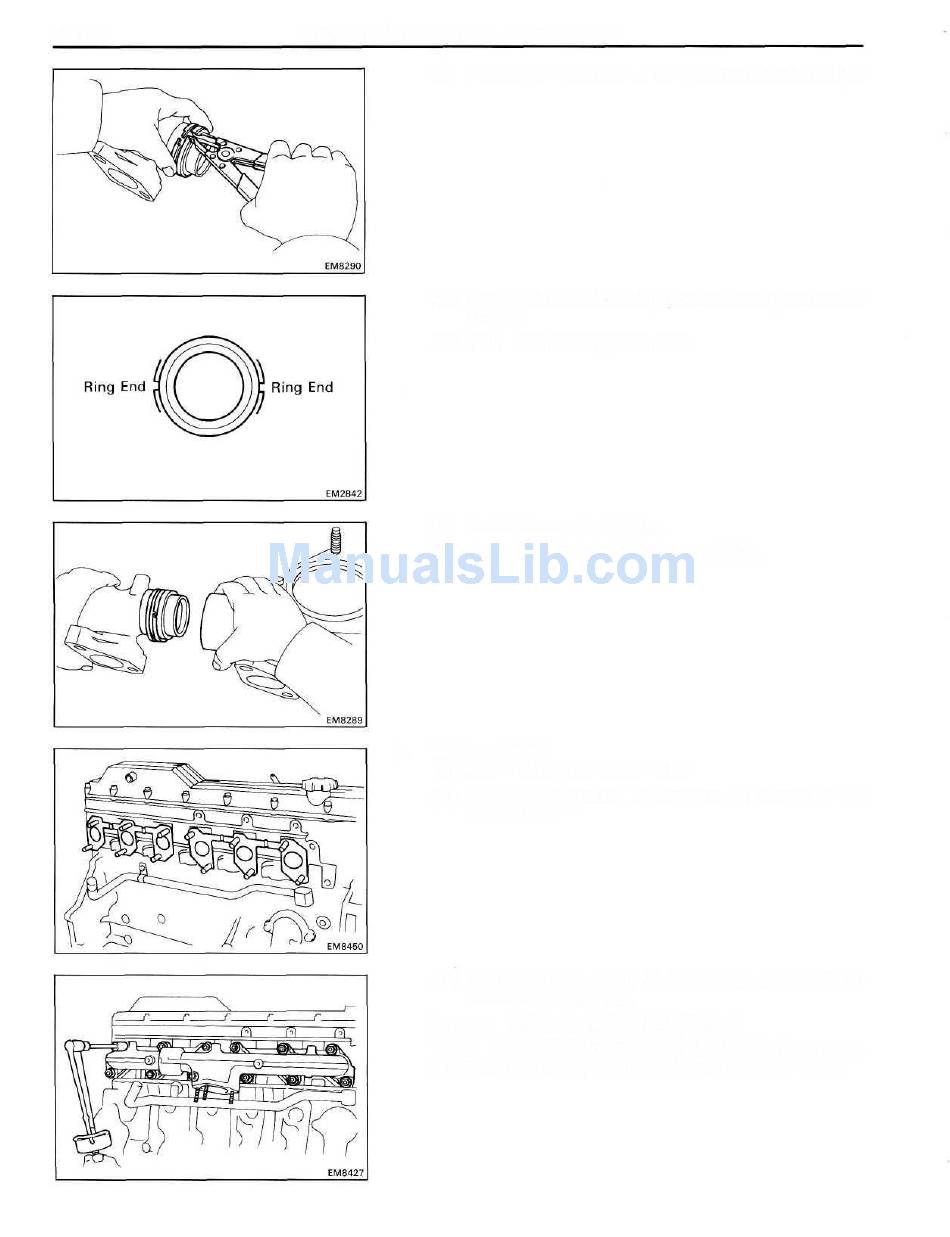

(c) Using snap ring pliers, install the two manifold rings.
(d) Position the manifold rings so that the ring ends are as
shown.
NOTICE: Do not align the ends.
(e) Install the manifold collar.
(f) Assembly the front and rear manifolds.
9. (IPZandiHZ)

INSTALL EXHAUST MANIFOLD

(a) Install new gaskets in direction as shown in the
illustration.
(b) Install the exhaust manifold with the ten nuts (1PZ)
or twelve nuts (1HZ).
Torque: 400 kg-cm (29 ft-lb, 39 N-m)
HINT: Apply 330 kg-cm (24 ft-lb, 32 N-m) of torque
when performing additional tightening of loosed nuts.
