Pre-Heating Timer - Toyota 1PZ Repair Manual

ST-10 STARTING SYSTEM - Pre-Heating System (Fixed Delay Type)
INSPECTION OF COMPONENTS

Pre-Heating Timer

INSPECT PREHEATING TIMER CIRCUIT
LOCATION: Under the instrument panel on the passenger
side.

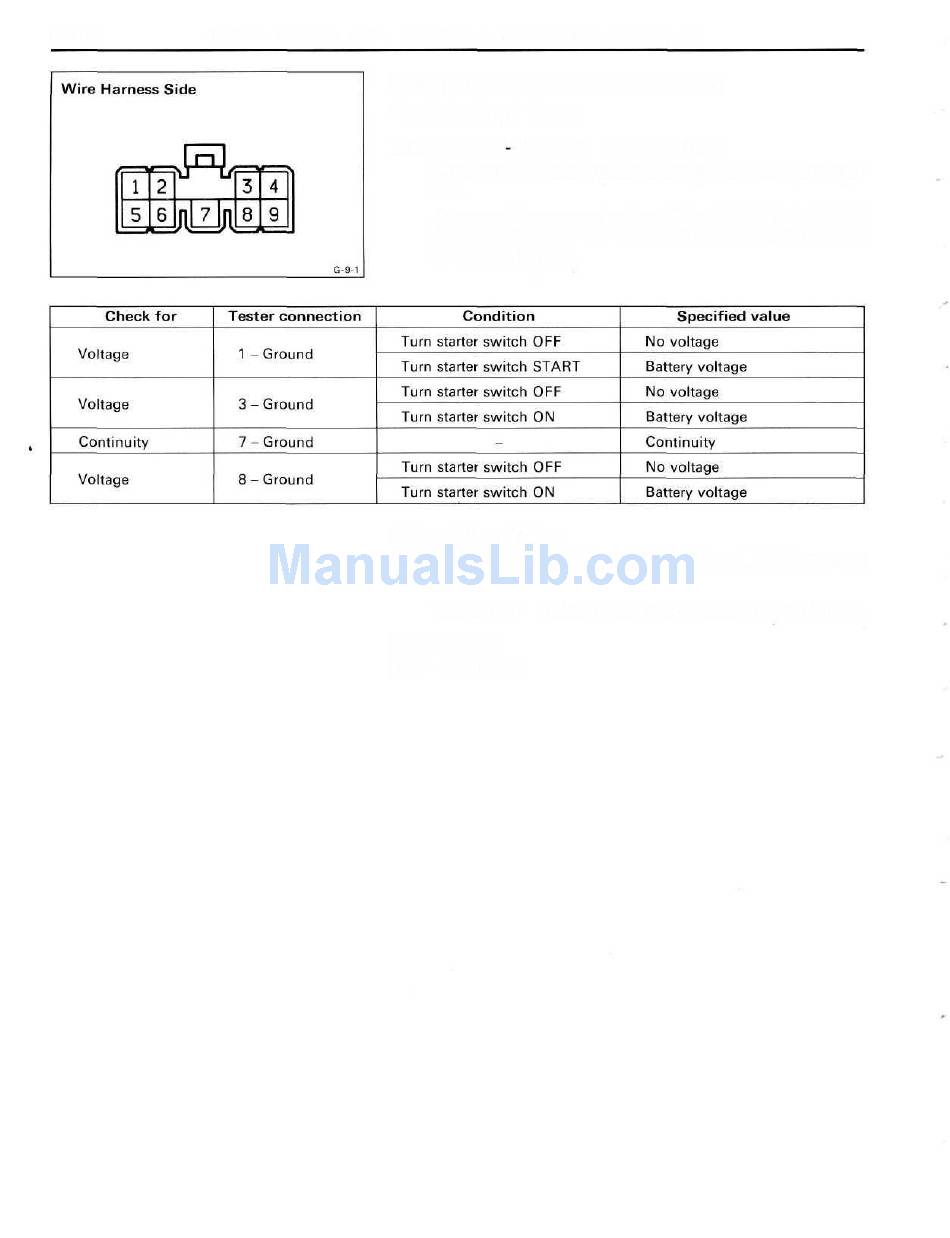

Disconnect the connector from the pre-heating timer, and
check the connector on the wire harness side as shown in
the following chart.
Glow Plug Relay
(See No.2 Glow Plug Relay (PZJ. HZJ and HDJ) on page
ST-6)
LOCATION: In the engine compartment on the left side.
Glow Plug
(See page ST-7)
