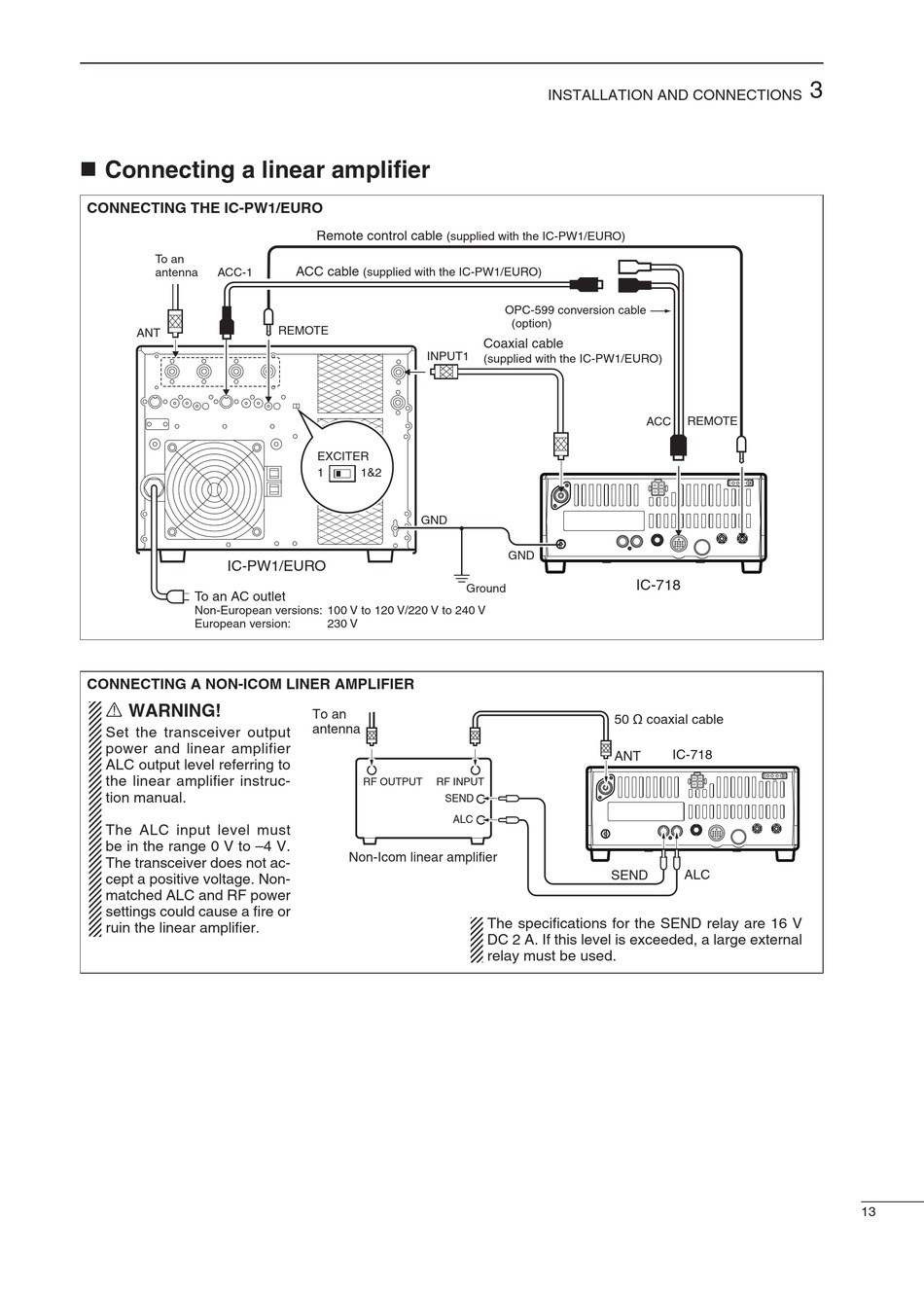

 Connecting a linear amplifi er
CONNECTING THE IC-PW1/EURO
To an
antenna ACC-1
ANT
IC-PW1/EURO
To an AC outlet
Non-European versions: 100 V to 120 V/220 V to 240 V
European version:
CONNECTING A NON-ICOM LINER AMPLIFIER
R WARNING!
Set the transceiver output
power and linear amplifier
ALC output level referring to
the linear amplifi er instruc-
tion manual.
The ALC input level must
be in the range 0 V to –4 V.
The transceiver does not ac-
cept a positive voltage. Non-
matched ALC and RF power
settings could cause a fi re or
ruin the linear amplifi er.
Remote control cable
(supplied with the IC-PW1/EURO)
ACC cable
(supplied with the IC-PW1/EURO)
REMOTE
INPUT1
EXCITER
1 1&2
GND
230 V
To an
antenna
RF OUTPUT RF INPUT
SEND
Non-Icom linear amplifier
INSTALLATION AND CONNECTIONS
OPC-599 conversion cable
(option)
Coaxial cable
(supplied with the IC-PW1/EURO)
GND
Ground
50 Ω coaxial cable
ANT
ALC
SEND
The specifi cations for the SEND relay are 16 V
DC 2 A. If this level is exceeded, a large external
relay must be used.
3
ACC REMOTE
13
9 10 11 12
5 6 7 8
1 2 3 4
IC-718
IC-718
13
9 10 11 12
5 6 7 8
1 2 3 4
ALC
13
