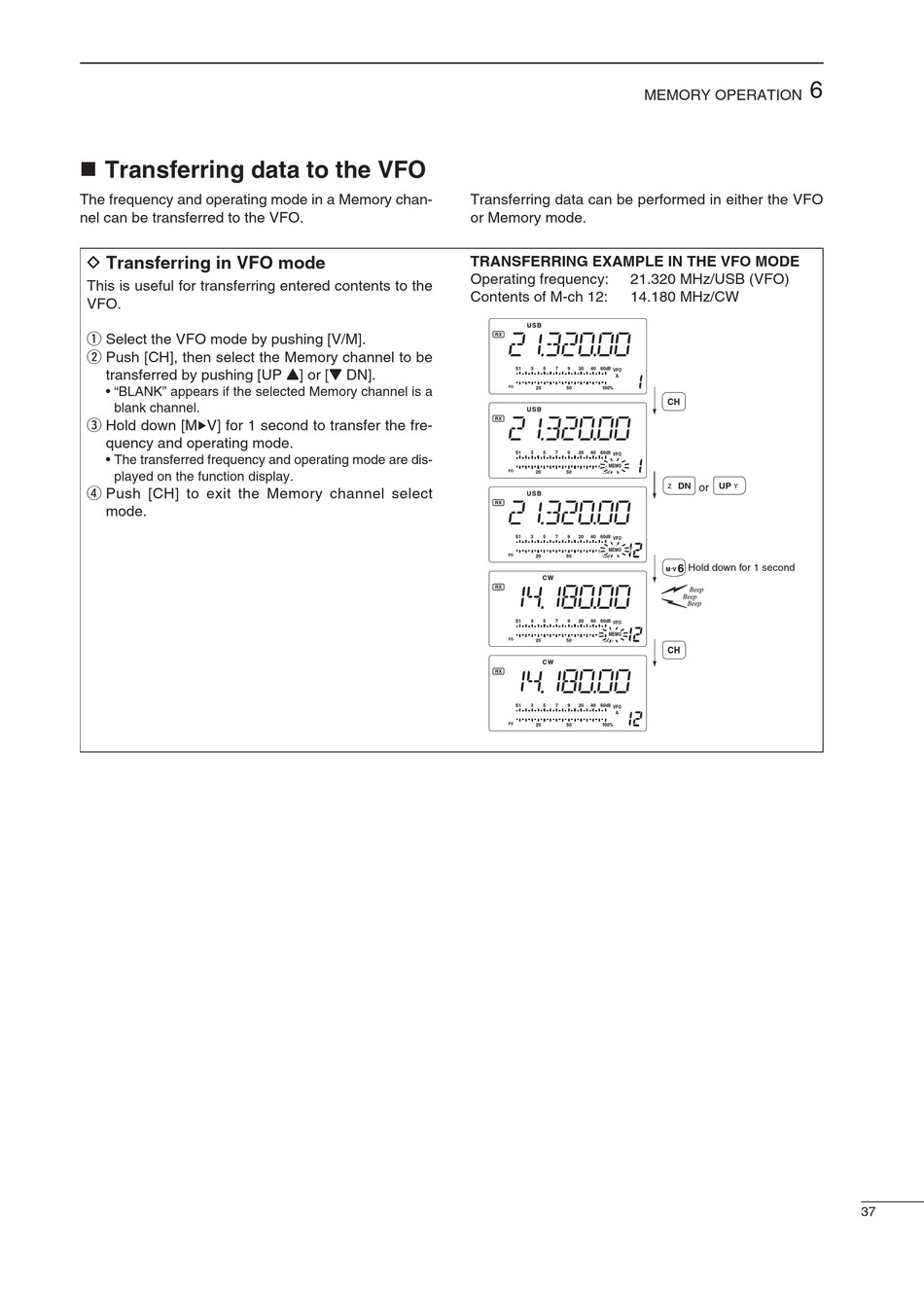

 Transferring data to the VFO
The frequency and operating mode in a Memory chan-
nel can be transferred to the VFO.
D Transferring in VFO mode
This is useful for transferring entered contents to the
VFO.
q Select the VFO mode by pushing [V/M].
w Push [CH], then select the Memory channel to be
transferred by pushing [UP Y] or [Z DN].
• "BLANK" appears if the selected Memory channel is a
blank channel.
e Hold down [M
≈
V] for 1 second to transfer the fre-
quency and operating mode.
• The transferred frequency and operating mode are dis-
played on the function display.
r Push [CH] to exit the Memory channel select
mode.
MEMORY OPERATION
Transferring data can be performed in either the VFO
or Memory mode.
TRANSFERRING EXAMPLE IN THE VFO MODE
Operating frequency: 21.320 MHz/USB (VFO)
Contents of M-ch 12: 14.180 MHz/CW
6
CH
Z Y
DN or UP
6 Hold down for 1 second
M V
Beep
Beep
Beep
CH
