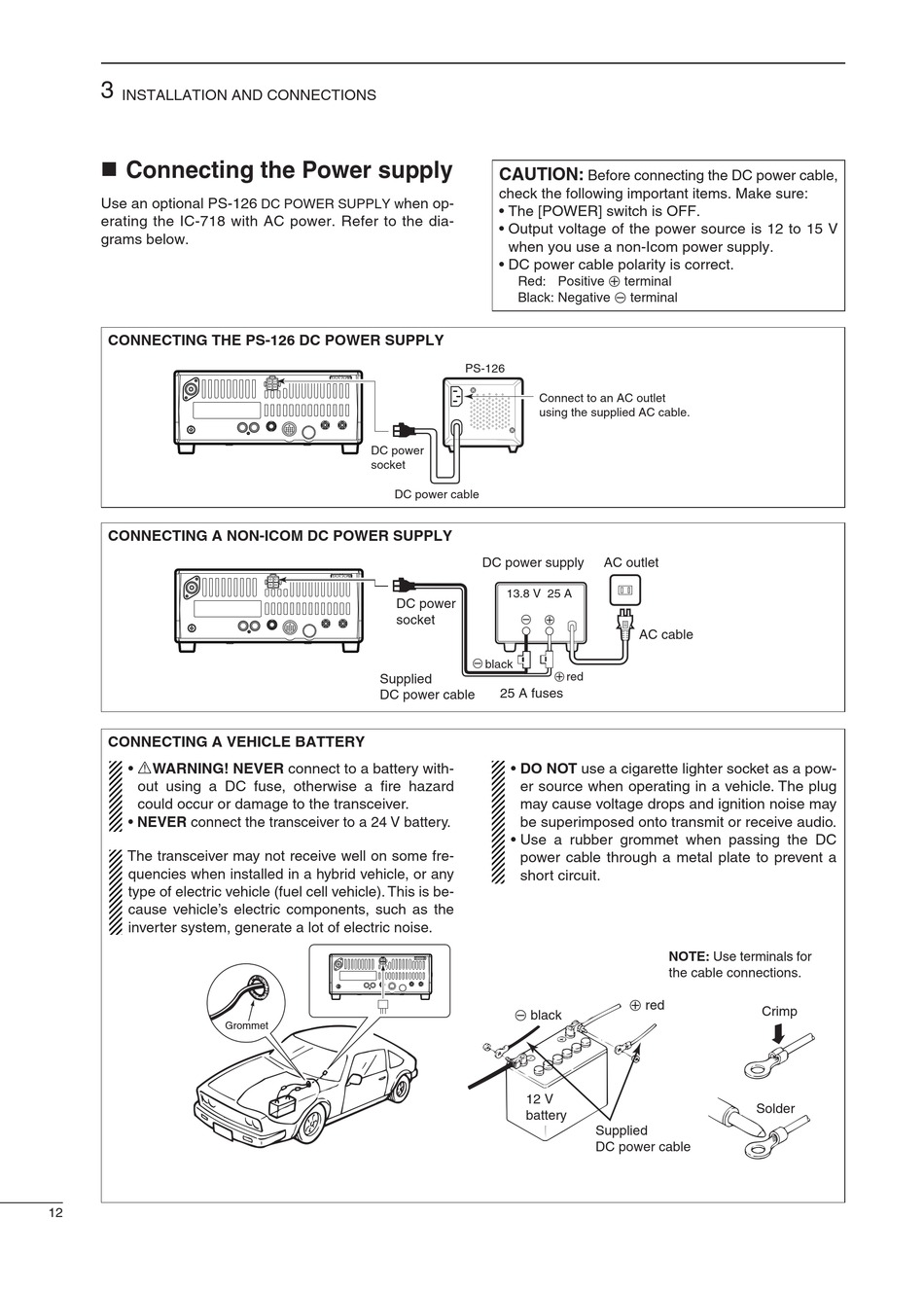

INSTALLATION AND CONNECTIONS
 Connecting the Power supply
Use an optional PS-126
erating the IC-718 with AC power. Refer to the dia-
grams below.
CONNECTING THE PS-126 DC POWER SUPPLY
CONNECTING A NON-ICOM DC POWER SUPPLY
CONNECTING A VEHICLE BATTERY
• RWARNING! NEVER connect to a battery with-
out using a DC fuse, otherwise a fi re hazard
could occur or damage to the transceiver.
• NEVER connect the transceiver to a 24 V battery.
The transceiver may not receive well on some fre-
quencies when installed in a hybrid vehicle, or any
type of electric vehicle (fuel cell vehicle). This is be-
cause vehicle's electric components, such as the
inverter system, generate a lot of electric noise.
12
DC POWER SUPPLY w
13
9 10 11 12
5 6 7 8
1 2 3 4
DC power
socket
DC power cable
DC power
socket
13
9 10 11 12
5 6 7 8
1 2 3 4
Supplied
DC power cable
Grommet
CAUTION:
check the following important items. Make sure:
hen op-
• The [POWER] switch is OFF.
• Output voltage of the power source is 12 to 15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red: Positive + terminal
Black: Negative _ terminal
PS-126
Connect to an AC outlet
using the supplied AC cable.
DC power supply
13.8 V 25 A
_ +
_
black
+
red
25 A fuses
• DO NOT use a cigarette lighter socket as a pow-
er source when operating in a vehicle. The plug
may cause voltage drops and ignition noise may
be superimposed onto transmit or receive audio.
• Use a rubber grommet when passing the DC
power cable through a metal plate to prevent a
short circuit.
_ black
12 V
battery
Before connecting the DC power cable,
AC outlet
AC cable
NOTE: Use terminals for
the cable connections.
+ red
Crimp
Solder
Supplied
DC power cable
